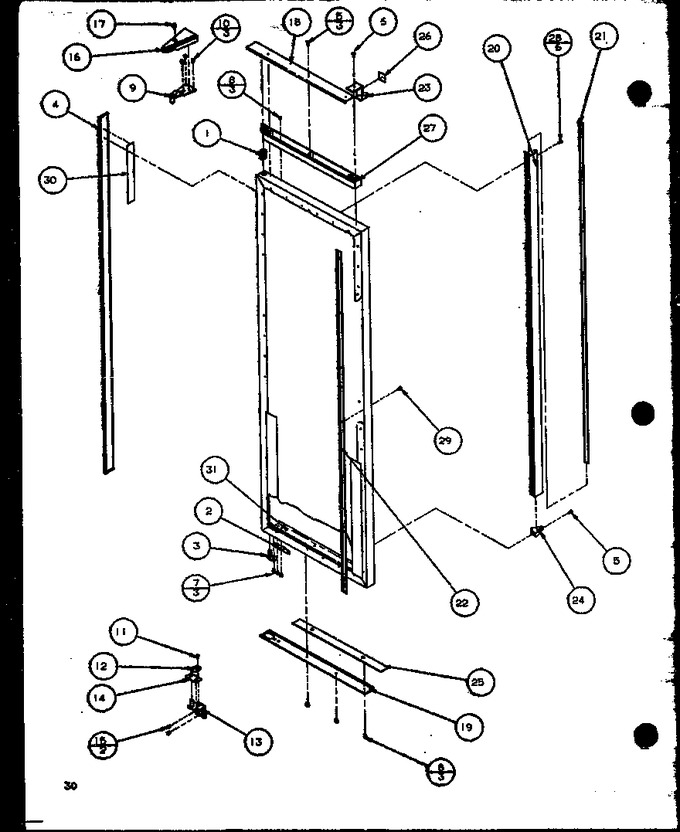

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8965901		Bushing, Top		Appelez-nous	-
2	C8972401		Stop, Door (blk)		Appelez-nous	-
3	R0181181		Kit,dr Closure   (Replaces: D7751402)			Immediately	$ 7.55
4	D7830002		Trim		Appelez-nous	-
5	M0213815		Screw		Appelez-nous	-
6	M0213521		Screw		Appelez-nous	-
7	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
8	M0219717		Screw		Appelez-nous	-
9	D7855703		Top Hinge Assy		Appelez-nous	-
10	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
11	WPW10068250		Screw   (Replaces: M0202530)				$ 4.27
12	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 7.55
13	D7757706		Hinge Assy Bottom		Appelez-nous	-
14	B8386702		Kit,btm Hinge Shim		Appelez-nous	-
14	B8386701		Kit,btm Hinge Shim		Appelez-nous	-
14	B8386703		Kit,btm Hinge Shim		Appelez-nous	-
15	M0246258		Screw		Appelez-nous	-
16	D7870701		Cover, Hinge		Appelez-nous	-
17	M0202325		Screw		Appelez-nous	-
18	D7830102		Trim		Appelez-nous	-
19	D7830202		Trim		Appelez-nous	-
20	D7826703		Handle		Appelez-nous	-
21	D7826804		Insert Handle		Appelez-nous	-
22	D7826901		Top Strip		Appelez-nous	-
23	D7828006		Cap Handle		Appelez-nous	-
24	D7828102		End Cap. Handle		Appelez-nous	-
25	D7871201		Spacer, Bottom Trim		Appelez-nous	-
26	D7853503		Nameplate, End Cap		Appelez-nous	-
27	D7866201		Spacer-door		Appelez-nous	-
28	M0211005		Screw		Appelez-nous	-
29	M0242918		Screw		Appelez-nous	-
30	R0195038		Tape, Double Back, Trim Door T		Appelez-nous	-
31	D7826402		Top Strip		Appelez-nous	-
