SELECT A DIAGRAM

01 - Back Unit


02 - Compact Ice Maker


03 - Evap And Air Handling


04 - Factory Installed Ice Maker


05 - Fz Door


06 - Fz Door Hinge And Trim Parts


07 - Fz Shelving And Ref Light


08 - Machine Compartment


09 - Ref Door


10 - Ref Door


11 - Ref Shelving And Drawers


12 - Ref/fz Controls And Cabinet Parts


13 - Rollers

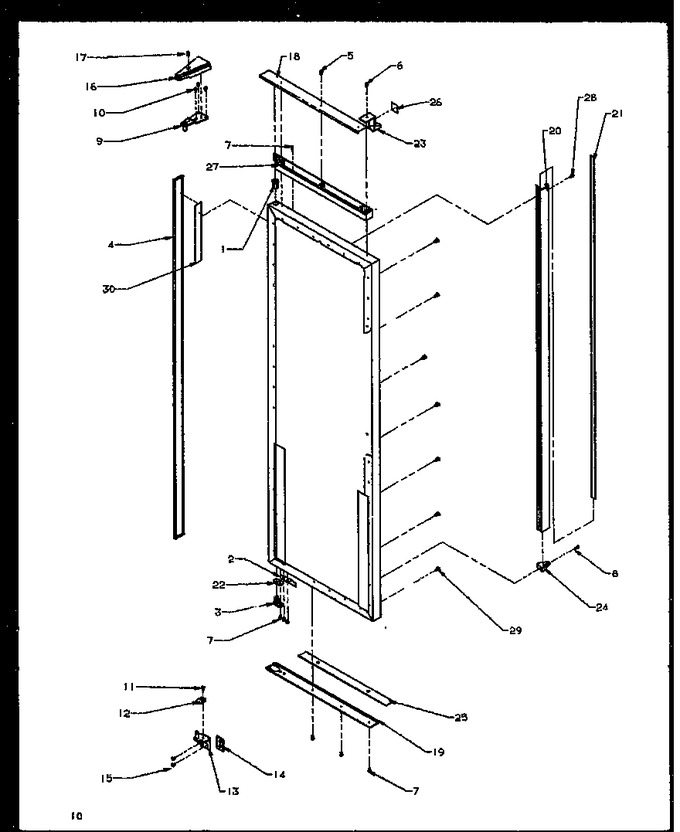

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10393802		Bushing, Door (wht)		Appelez-nous	-
1	10393803		Bushing, Door (blk)		Appelez-nous	-
2	C8972404		Stop, Satin Door		Appelez-nous	-
2	C8972403		Stop, Door (blk)		Appelez-nous	-
3	R0181181		Kit,dr Closure   (Replaces: D7751402)			Immediately	$ 7.55
3	R0181181		Kit,dr Closure   (Replaces: D7751404)			Immediately	$ 7.55
4	10494501		Trim, Vert (refr)		Appelez-nous	-
5	M0213815		Screw		Appelez-nous	-
6	M0213521		Screw		Appelez-nous	-
7	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
8	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
9	10495603		Top Hinge Assy		Appelez-nous	-
10	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
11	WP489128		Screw   (Replaces: M0220417)				$ 11.40
12	R0181181		Kit,dr Closure   (Replaces: D7748302)			Immediately	$ 7.55
12	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 7.55
13	10496105		Kit,hinge Rh Btm(b)		Appelez-nous	-
14	10399501		Kit,btm Hinge Shim		Appelez-nous	-
14	10399502		Kit,btm Hinge Shim		Appelez-nous	-
15	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
16	10504203		Cover, Hinge(lh)		Appelez-nous	-
16	10504201		Hinge- Cover Lh Gray		Appelez-nous	-
17	M0202325		Screw		Appelez-nous	-
18	10494401		Trim, Ref Dr Top		Appelez-nous	-
19	10494301		Trim, Refr Dr Bottom		Appelez-nous	-
20	10331301		Handle, Door		Appelez-nous	-
21	D7826804		Insert Handle		Appelez-nous	-
22	10361801		Shim, Dr Bushing		Appelez-nous	-
23	10494802		Cap, Handle		Appelez-nous	-
24	D7828102		End Cap. Handle		Appelez-nous	-
25	10494603		Support Ref Trim (btm)		Appelez-nous	-
26	D7853503		Nameplate, End Cap		Appelez-nous	-
27	Y10496003		Trim		Appelez-nous	-
27	10496001		Extr, Refr Door		Appelez-nous	-
28	67006425		Screw, Sm   (Replaces: M0211019)			Immediately	$ 7.30
29	10281001		Grommet, Screw		Appelez-nous	-
30	R0195042		Double Backed Tape 6ft Roll		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
