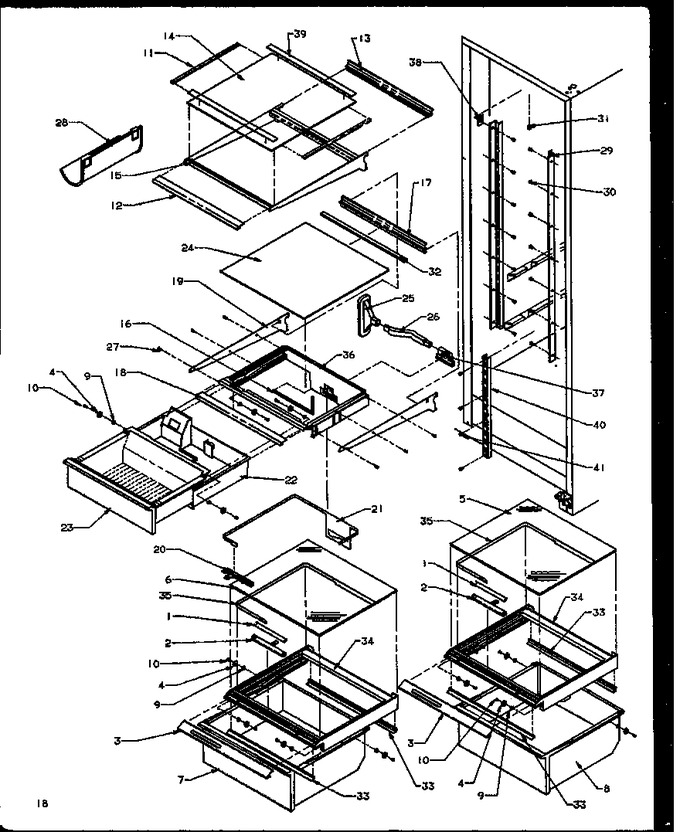

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10199906 | Insert Crisper Slide |
|
- | |||||
| 2 | 10289908 | Slide Crisper Control |
|
- | |||||
| 3 | 10524301 | Trim, Crisper Top Frt |
|
- | |||||
| 4 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 5 | 10370024 | Shelf, Glass |
|
- | |||||
| 6 | 10370025 | Glass, Shelf |
|
- | |||||
| 7 | 10471708 | Pan, Crisper (lower) |
|
- | |||||
| 8 | 10469010 | Pan, Crisper |
|
- | |||||
| 9 | 67006692 | Screw, Shoulder (Replaces: 10481301) |
|
$ 10.79 | |||||
| 10 | 67006692 | Screw, Hi Lo (Replaces: M0237932) |
|
$ 10.79 | |||||
| 11 | 10635801 | Extrusion, Glass Shelf |
|
- | |||||
| 12 | 10049949 | Trim, Shelf (front) |
|
- | |||||
| 12 | 10049950 | Trim, Front Shelf |
|
- | |||||
| 13 | C8913608 | Trim |
|
- | |||||
| 13 | C8913613 | Trim Rear Shelf |
|
- | |||||
| 14 | 10370018 | Shelf, Glass |
|
- | |||||
| 14 | 10370017 | Glass, Shelf |
|
- | |||||
| 15 | 10579102 | Frame, Cant. Shelf |
|
- | |||||
| 15 | 10579101 | Frame, Cant. Shelf |
|
- | |||||
| 16 | A3030353 | Gasket |
|
- | |||||
| 17 | C8990405 | Trim, Rear |
|
- | |||||
| 18 | 10049941 | Trim, Shelf Frt |
|
- | |||||
| 19 | D7862987 | Rail, Blank Side |
|
- | |||||
| 19 | D7862986 | Rail, Blank Side |
|
- | |||||
| 20 | D7859402 | Slide-mk Control |
|
- | |||||
| 21 | 10518401 | Band, Mk |
|
- | |||||
| 22 | 10469905 | Sleeve, Mk |
|
- | |||||
| 23 | 10469808 | Pan, Mt Kpr |
|
- | |||||
| 24 | 10370026 | Glass, Mtkpr Shelf |
|
- | |||||
| 25 | D7873602 | Grommet, Mk |
|
- | |||||
| 26 | 10518201 | Duct, Mk Air |
|
- | |||||
| 27 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 28 | 10448901 | Rack, Wine |
|
- | |||||
| 29 | D7789806 | Ladder Cantilever |
|
- | |||||
| 29 | D7789805 | Ladder Cantilever |
|
- | |||||
| 30 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 31 | M0580007 | Grommet, Screw |
|
- | |||||
| 32 | 10043102 | Ext. Rear Glass |
|
- | |||||
| 33 | 10523401 | Seal, Crisper Front |
|
- | |||||
| 33 | D7718406 | Seal, Meat Pan |
|
- | |||||
| 34 | 10470201 | Frame, Crisper |
|
- | |||||
| 34 | 10469603 | Frame, Crisper |
|
- | |||||
| 35 | 10519302 | Band, Crisper |
|
- | |||||
| 35 | 10519304 | Band, Crisper |
|
- | |||||
| 36 | 10469701 | Frame, Mk |
|
- | |||||
| 37 | D7869101 | Ext. Air Duct |
|
- | |||||
| 38 | C8992301 | Bracket |
|
- | |||||
| 39 | A3189353 | Gasket, Foam |
|
- | |||||
| 39 | A3189354 | Gasket, Foam |
|
- | |||||
| 40 | D7599003 | Ladder, Center |
|
- | |||||
| 41 | M0230923 | Screw |
|
- | |||||
| NI | 10582402 | Assy, Shelf (split) |
|
- | |||||
| NI | 10543705 | Assy, Crisper Frame |
|
- | |||||
| NI | 10543706 | Ass`y, Crisper Frame |
|
- | |||||
| NI | 10582401 | Ass`y, Split Shelf |
|
- |
