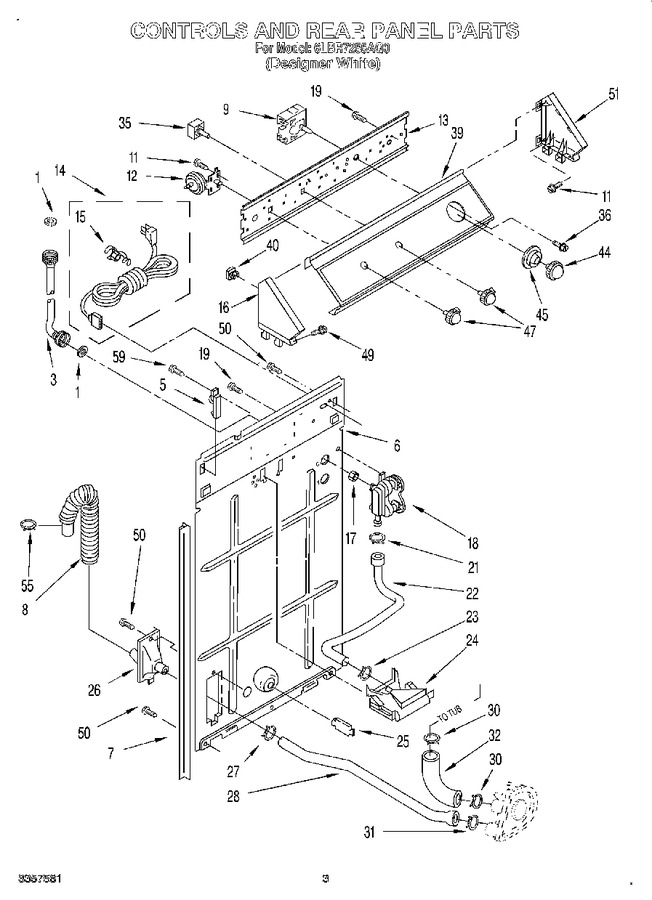

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 8.16
3	WPW10489643		Hose, Water Inlet (2)   (Replaces: 3358798)				$ 81.86
5	387402		Hinge, Console (2)				$ 5.84
6	3357976		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 27.57
8	285666		Hose, Drain (10 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
8	285664		Hose, Drain (5 1/2 Ft.)   (Replaces: 661575)			Immediately	$ 36.89
9	3360280		Timer, Control (50 Hz.) (motor Not A Service Part)		Appelez-nous	-
11	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
12	WP3356465		Switch, Water Level   (Replaces: 3356465)				$ 164.72
13	3358895		Bracket, Control		Appelez-nous	-
14	3353308		Cord, Power		Appelez-nous	-
15	W11733005		Strain Relief, Power Cord   (Replaces: 63848)				$ 13.58
16	3358531		Cap, End (l.h.) (for Designer White Model)		Appelez-nous	-
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 12.30
18	285874		Valve, Water Mixing   (Replaces: 3360393)				$ 213.86
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 7.30
21	WP596669		Clamp, Hose   (Replaces: 660632)			Immediately	$ 8.82
21	WP596669		(alt.)   (Replaces: 353367)			Immediately	$ 8.82
21	WP596669		(alt.)   (Replaces: 272846)			Immediately	$ 8.82
22	WP3357328		Hose, Vacuum Break   (Replaces: 62662)			Immediately	$ 24.78
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
24	WP3347034		Break, Vacuum   (Replaces: 3347034)			Immediately	$ 75.28
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 19.85
26	WPW10358149		Connector, Drain Hose   (Replaces: 3355497)			Immediately	$ 48.16
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
28	WP3348552		Hose, Pump To Drain Connector   (Replaces: 3359818)				$ 89.09
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 12.31
31	WP285655		(alt.)   (Replaces: 353097)			Immediately	$ 8.81
31	WP285655		(alt.)   (Replaces: 370447)			Immediately	$ 8.81
31	WP285655		(alt.)   (Replaces: 272858)			Immediately	$ 8.81
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 8.81
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 28.99
35	3348354		Switch, Water Temperature		Appelez-nous	-
36	WP356418		Screw, Timer Mounting (10-32 X 1) (2)   (Replaces: 96435)				$ 9.26
39	3360369		Panel, Console (for Designer White Model)		Appelez-nous	-
40	689559		Nut, Push-in (2)		Appelez-nous	-
44	WP3364293		Knob, Timer (for Designer White Model)   (Replaces: 3358417)			Immediately	$ 62.42
45	3358447		Dial, Timer (for Designer White Model)		Appelez-nous	-
47	WP3957796		Knob, Control (for Designer White Model)   (Replaces: 3358435)			Immediately	$ 57.57
49	WP388326		Screw, 8-18 (panel To Top)   (Replaces: 3353145)				$ 9.29
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
51	3358516		Cap, End (r.h.) (for Designer White Model)		Appelez-nous	-
55	WP3357331		Clamp, Drain Hose   (Replaces: 3357331)				$ 8.19
59	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
