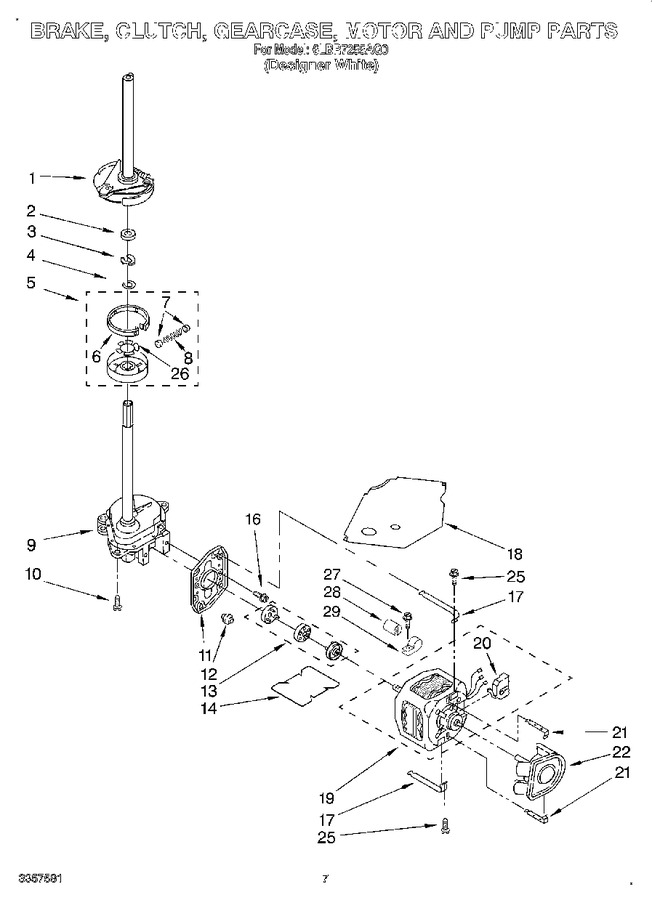

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10820043 | Brake & Drive Tube (complete) (refer To Brake & Drive Tube Parts Page For Further Breakdown) (Replaces: 388951) |
|
Immediately | $ 217.31 | ||||
| 2 | WP63292 | Washer, Spin Tube Thrust (Replaces: 63292) |
|
Immediately | $ 8.10 | ||||
| 3 | WPW10080230 | Ring, Spin Tube Support (Replaces: 62697) |
|
$ 12.62 | |||||
| 4 | 285353 | Ring, Retainer (Replaces: 63283) |
|
$ 8.52 | |||||
| 5 | 285785 | Clutch (complete) (Replaces: 3350115) |
|
Immediately | $ 68.02 | ||||
| 6 | 285790 | Band & Lining, Clutch (includes Illus. 7 & 8) (Replaces: 388190) |
|
Immediately | $ 43.24 | ||||
| 7 | WP62646 | Cap, Clutch Spring (2) (Replaces: 62646) |
|
$ 7.93 | |||||
| 8 | 285790 | Spring, Clutch (Replaces: 3354731) |
|
Immediately | $ 43.24 | ||||
| 9 | 3363395 | Gearcase (complete) (refer To Gearcase Parts Page For Further Breakdown) (Replaces: 3360631) |
|
$ 455.42 | |||||
| 10 | WP3400516 | Screw, Gearcase To Base (3) (Replaces: 3357334) |
|
Immediately | $ 7.55 | ||||
| 11 | WP62611 | Plate, Motor Mount To Gearcase (Replaces: 62611) |
|
$ 122.96 | |||||
| 12 | WP62691 | Grommet, Motor (4) (Replaces: 62691) |
|
$ 12.41 | |||||
| 13 | 285753A | Coupling, Motor And Isolation Coupling (Replaces: 3352470) |
|
Immediately | $ 25.90 | ||||
| 14 | WP3946532 | Shield, Motor (Replaces: 3351341) |
|
$ 32.84 | |||||
| 16 | WP3400516 | Screw (2) (Replaces: 3357334) |
|
Immediately | $ 7.55 | ||||
| 17 | WPW10086010 | Retainer, Motor (2) (Replaces: 3349637) |
|
$ 8.34 | |||||
| 18 | W10838408 | Shield, Tub To Motor (Replaces: 3349282) |
|
$ 39.30 | |||||
| 19 | 3363190 | Motor, Main Drive |
|
- | |||||
| 20 | 62850 | Switch, Main Drive Motor |
|
- | |||||
| 21 | WP8546127 | Retainer, Pump (2) (Replaces: 62700) |
|
$ 8.55 | |||||
| 22 | WP3363394 | Pump (complete) (Replaces: 3352492) |
|
Immediately | $ 61.66 | ||||
| 25 | WP273556 | Screw (2) 10-16 X 5/8 (Replaces: 3387485) |
|
Immediately | $ 8.43 | ||||
| 26 | WP3355454 | Clip, Anti-rattle (Replaces: 3355454) |
|
$ 8.23 | |||||
| 27 | WP3390631 | Screw,10-16x5/16 (Replaces: 9420601) |
|
$ 8.25 | |||||
| 28 | WP8572717 | Capacitor (Replaces: 357021) |
|
Immediately | $ 80.14 | ||||
| 29 | 357030 | Clamp, Capacitor |
|
$ 22.14 |
