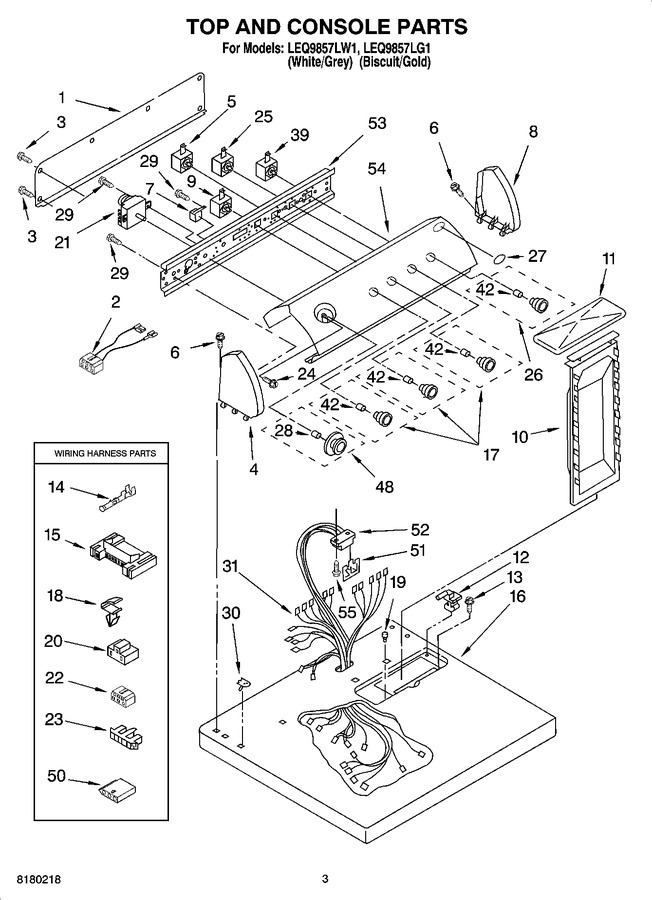

01 - Cabinet Parts


02 - Top And Console Parts


03 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
2	3401695		Wire, Jumper (buzzer On/off)		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
4	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
5	3405154		Switch, Wrinkle Shield				$ 152.88
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
8	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
9	8528330		Switch, Temperature				$ 223.71
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	8283378		Cover, Lint Screen (white)				$ 44.80
11	8283380		Cover, Lint Screen (biscuit)		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
15	3395683		Connector (motor)			Immediately	$ 51.86
16	8271390		Top (white)		Appelez-nous	-
16	8271392		Top (biscuit)		Appelez-nous	-
17	8538958		Knob, Control (3) (gold)		Appelez-nous	-
17	WP8538957		Knob, Control (3) (grey)   (Replaces: 8538957)				$ 55.74
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
19	297535		Bumper, Lint Lid		Appelez-nous	-
20	3401144		Connector, (pts Relay)				$ 12.20
21	WP3406725		Timer, 60 Hz.   (Replaces: 3406725)				$ 368.58
22	3347243		Connector 6-circuit		Appelez-nous	-
23	3397269		Connector, Timer				$ 25.55
24	3400859		Screw, Grounding				$ 13.22
25	3405152		Switch, End Of Cycle				$ 131.07
26	8538959		Knob, Push-to-start (grey)				$ 25.38
26	8538960		Knob, Push-to-start (gold)		Appelez-nous	-
27	3955775		Medallion		Appelez-nous	-
28	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
29	WPW10139210		Screw, Mounting (8-18 X 5/16)   (Replaces: 3390646)				$ 7.50
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	8576506		Harness, Wiring   (Replaces: 8299889)		Appelez-nous	-
39	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
42	WP8536939		Spring Clip   (Replaces: 8536939)			Immediately	$ 7.81
48	WP8557455		Timer Knob Assembly (grey)   (Replaces: 8538953)				$ 56.77
48	8538954		Timer Knob Assembly (gold)		Appelez-nous	-
50	3936144		Connector				$ 20.21
51	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
52	3391885		Connector, Edge				$ 86.40
53	8271418		Bracket, Control				$ 57.15
54	8532631		Panel, Control (includes Illus. 27) (grey)		Appelez-nous	-
54	8532632		Panel, Control (includes Illus. 27) (gold)		Appelez-nous	-
55	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
55	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
55	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
55	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
55	3406839		Dry Rack			Immediately	$ 65.68
55	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 26.45
55	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
55	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
55	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
55	N/A		Accessory Parts		Appelez-nous	-
55	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85
55	W11224254		Kit, Dryer Vent Testng   (Replaces: 8522199)				$ 11.75
