01 - Cabinet Parts
02 - Top And Console Parts

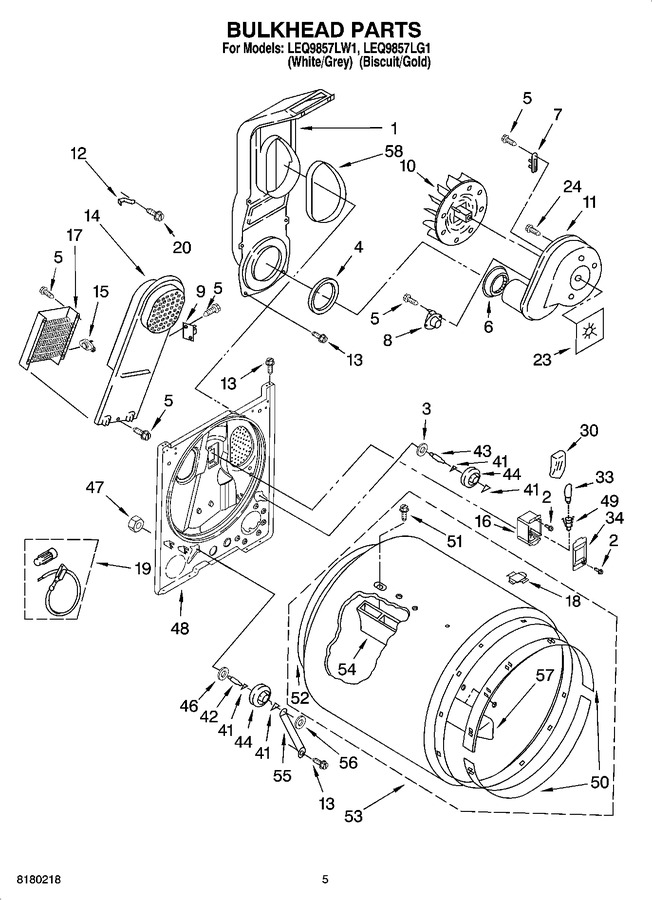

03 - Bulkhead Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Lint Chute Assembly (Replaces: 348368) |
|
$ 175.01 | |||||
| 2 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.79 | ||||
| 3 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.47 | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 5 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 22.29 | |||||
| 7 | WP3392519 | Thermal Fuse (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 8 | WP8318268 | Thermostat, Internal-bias (Replaces: 8318268) |
|
Immediately | $ 80.57 | ||||
| 9 | 279816 | Thermal Cut-off (includes Illus. 15) (Replaces: 3977393) |
|
Immediately | $ 60.71 | ||||
| 10 | WP694089 | Wheel, Blower (includes Illus. 23) (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8557384) |
|
$ 177.95 | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | WP8541818 | Box, Heater (Replaces: 8541818) |
|
$ 234.81 | |||||
| 15 | WP3977767 | Thermostat, 221~f (105c) (Replaces: 3977767) |
|
Immediately | $ 26.09 | ||||
| 16 | 3977373 | Bracket, Drum Light |
|
$ 105.79 | |||||
| 17 | 279838 | Element, Heater (Replaces: 3403585) |
|
Immediately | $ 94.41 | ||||
| 18 | 8066086 | Drum, Hole Plug |
|
$ 10.75 | |||||
| 19 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 20 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 7.82 | |||||
| 23 | 3394196 | Seal, Blower |
|
$ 5.65 | |||||
| 24 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 30 | W10816105 | Pad, Sensor (Replaces: 3976479) |
|
$ 152.01 | |||||
| 33 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 13.66 | ||||
| 34 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 31.09 | |||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 47.30 | ||||
| 44 | 349241T | Roller, Support (Replaces: 3397588) |
|
Immediately | $ 29.53 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.19 | |||||
| 47 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 48 | W10828905 | Bulkhead (Replaces: 3403414) |
|
Immediately | $ 359.30 | ||||
| 49 | W11700522 | Socket Assembly (Replaces: 3403634) |
|
$ 73.15 | |||||
| 50 | 279441 | Ring, Bearing (2) (Replaces: 692526) |
|
Immediately | $ 66.22 | ||||
| 51 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 52 | W10612022 | Seal, Rear Drum (Replaces: 3406130) |
|
Immediately | $ 57.15 | ||||
| 53 | W10899578 | Drum Assembly (Replaces: 695587) |
|
$ 357.65 | |||||
| 54 | WP692490 | Baffle, Drum (2) (Replaces: 692490) |
|
$ 159.27 | |||||
| 55 | W11684613 | Bracket, Support (Replaces: 3976434) |
|
$ 20.94 | |||||
| 56 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 57 | WP3403636 | Baffle, Drum (1) (Replaces: 3403636) |
|
$ 138.66 | |||||
| 58 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 |
