SELECT A DIAGRAM

01 - Cabinet Back And Water Valve


02 - Cabinet Parts

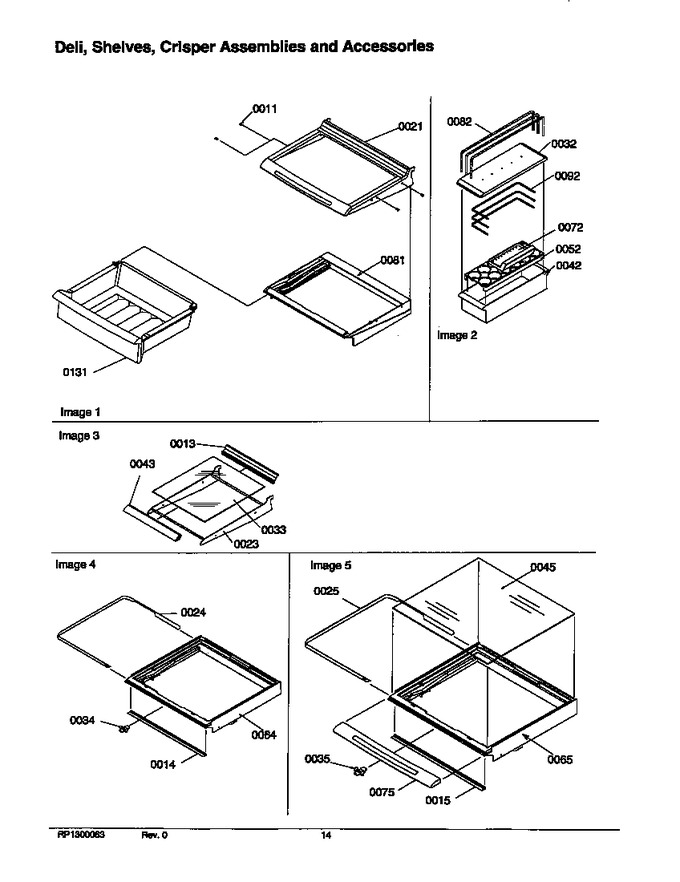

03 - Deli, Shelves, Crisper Assemblies & Acs


04 - Drain Systems, Rollers And Evap Assy


05 - Facade Cover/elec Brkt Assy/toe Grille


06 - Fz Door


07 - Fz Shelves And Lights


08 - Ice Bucket, Auger And Ice Maker Parts


09 - Ice Maker/control Assy


10 - Machine Compartment And Muffler Assy


11 - Ref Door & Door Trim And Handles


12 - Ref/fz Lights And Hinges


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	10946007		Extrsn, Rear Shelf		Appelez-nous	-
23	10875308		Frame, Glass Shelf		Appelez-nous	-
33	12216710		Glass, Shelf (ref)		Appelez-nous	-
43	10459910		Extr., Shelf Frt		Appelez-nous	-
45	Y10370066		Glass, Shelf		Appelez-nous	-
64	10782901		Frame,crisper		Appelez-nous	-
65	10782901		Frame,crisper		Appelez-nous	-
75	12113007		Trim, Crisper Frame		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
