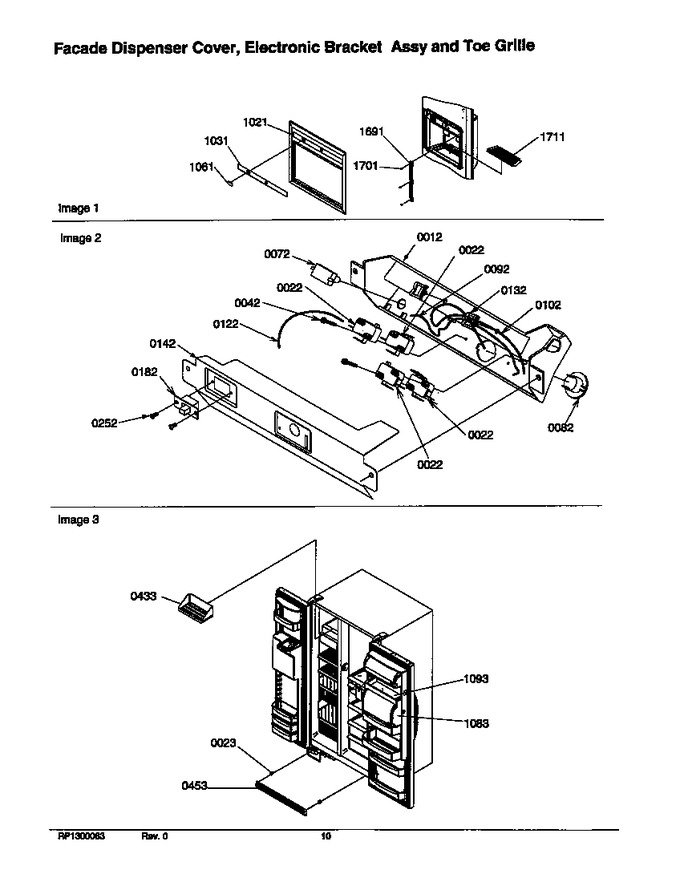

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10323305		Bracket, Elec Mtg		Appelez-nous	-
22	12419601		Switch, Limit		Appelez-nous	-
23	M0117303		Clip, Grille				$ 5.65
42	M0237809		Screw, T.f.		Appelez-nous	-
72	10166101		Switch-light Cavity				$ 6.49
82	10131702		Socket, Light		Appelez-nous	-
92	D7726590		Wire-jumper		Appelez-nous	-
102	D7726597		Wire, Jumper		Appelez-nous	-
122	D7726592		Wire-jumper		Appelez-nous	-
132	B5667304		Wire Clip		Appelez-nous	-
142	10131802		Cover-elec Brkt		Appelez-nous	-
182	10166002		Switch-crushed/cube		Appelez-nous	-
252	W11084238		Screw   (Replaces: M0234001)		Appelez-nous	-
433	10870802		Shelf, Ice Cream		Appelez-nous	-
453	12321807		Assy, Toe Grille (white)		Appelez-nous	-
1021	12280004		Facade-w Disp		Appelez-nous	-
1031	10984645		Insert, Facade (white)		Appelez-nous	-
1061	12043806		Cap-white Switch		Appelez-nous	-
1691	12335602		Extension, Cavity		Appelez-nous	-
1701	M0216517		Screw		Appelez-nous	-
1711	D7750603		Grille, Sump (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
