SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Drain System, Rollers, And Evap Assy


04 - Fz Door


05 - Fz Shelves And Light


06 - Ice & Water Cavity And Elec Bracket Assy


07 - Ice Bucket Auger And Ice Maker Parts


08 - Ice Maker/control Assy


09 - Machine Compartment


10 - Ref Door And Accessories


11 - Ref/fz Shelves, Lights, And Hinges


12 - Shelf, Crisper Assemblies And Toe Grille

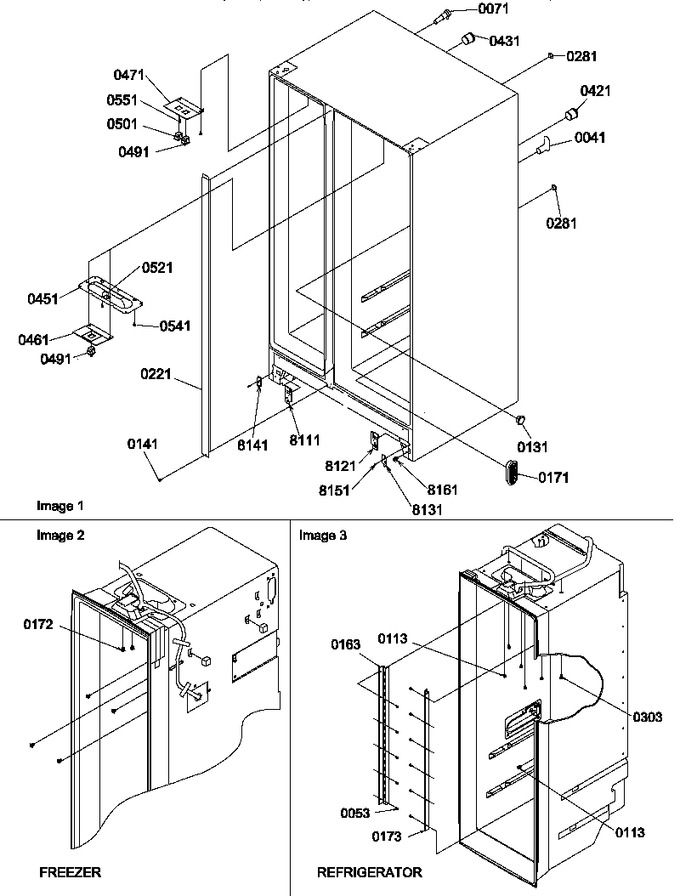

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
41	C8971902		Tunnel, Heat Ex.		Appelez-nous	-
53	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
71	12023401		Assy, Fill Tube		Appelez-nous	-
113	M0580007		Grommet, Screw		Appelez-nous	-
131	10923101		Tunnel, Retainer		Appelez-nous	-
141	12991101		Screw, Sm   (Replaces: M0210816)				$ 13.47
163	D7789808		Ladder, Cantilever		Appelez-nous	-
171	D7785402		Grille-rtn Air		Appelez-nous	-
172	M0580007		Grommet, Screw		Appelez-nous	-
173	D7789809		Ladder, Cantilever		Appelez-nous	-
221	Y00000000		See Note W Vt Mull-pnt		Appelez-nous	-
281	A3080001		Plug, Button (blk)		Appelez-nous	-
303	M0581001		Grommet, Screw		Appelez-nous	-
421	10187501		Tunnel Wire		Appelez-nous	-
431	10187601		Tunnel Wire		Appelez-nous	-
451	D7716409		Housing-ref Light		Appelez-nous	-
461	D7297603		Cover, Light Sw		Appelez-nous	-
471	D7749002		Cover Light		Appelez-nous	-
491	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 39.09
501	C3680311		Switch		Appelez-nous	-
521	B5733302		Clip, Ground		Appelez-nous	-
541	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
551	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
8111	12146602		Strip-lh Bot Hinge		Appelez-nous	-
8121	12146601		Strip-rh Bot Hinge		Appelez-nous	-
8131	12146801		Spacer, Btm Hinge		Appelez-nous	-
8141	12146802		Shim-lh Bot Hinge		Appelez-nous	-
8151	A4539631		Rivet, Pop (wht)		Appelez-nous	-
8161	12147602		Cam-hinge Adj		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
