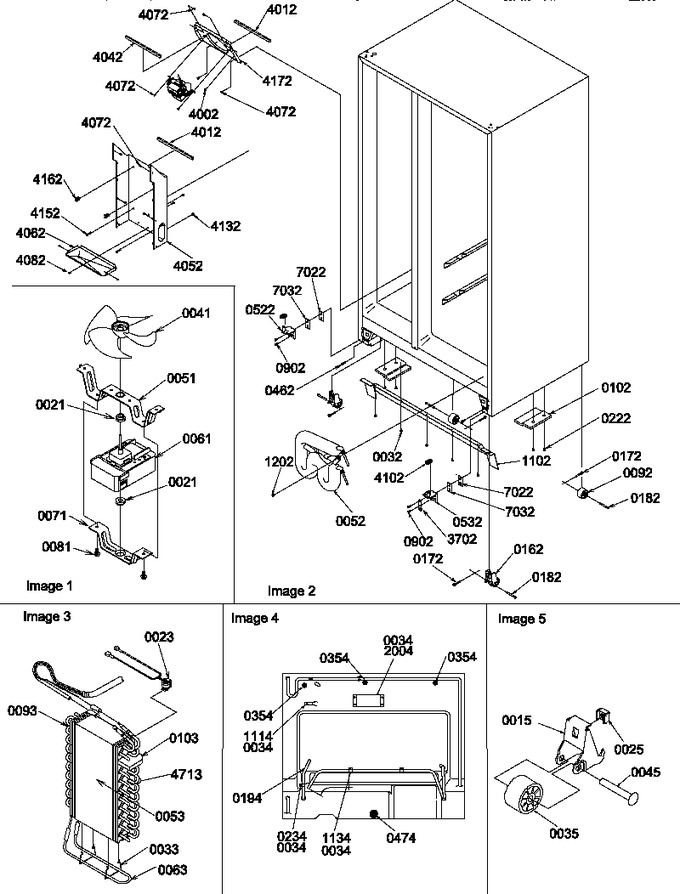

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 15 | C8742401 | Assy, Roller Bracket |
|
- | |||||
| 21 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 46.17 | ||||
| 23 | 12017823 | Thermostat, Defrost |
|
- | |||||
| 25 | M0286708 | Nut, Speed |
|
$ 47.85 | |||||
| 32 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 33 | W11673433 | Clip, Evap Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 34 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 35 | WP10450603 | Roller (Replaces: 10450602) |
|
$ 8.27 | |||||
| 41 | R0000199 | Fan-evap/5.250 (Replaces: 10890101) |
|
$ 166.01 | |||||
| 45 | M1205302 | Rivet |
|
$ 5.85 | |||||
| 51 | 10656102 | Brkt-mtr Mt/up |
|
- | |||||
| 52 | 10988502 | Tank-water |
|
- | |||||
| 53 | R0170055 | Assy,low Side(sxs 22) |
|
$ 322.79 | |||||
| 61 | WP10513803 | Motor-evap Fan (Replaces: 10513803) |
|
Immediately | $ 198.58 | ||||
| 63 | WP12049801 | Heater, Evap (Replaces: 12049801) |
|
$ 149.50 | |||||
| 71 | 10909401 | Brkt, Mtr Mt |
|
- | |||||
| 81 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 92 | WP10450603 | Roller (Replaces: 10450602) |
|
$ 8.27 | |||||
| 93 | 10629601 | Block, Air Coil (left) |
|
- | |||||
| 102 | 10508001 | Support, Mach Comp. |
|
- | |||||
| 103 | 10629001 | Block, Air Coil (right) |
|
- | |||||
| 162 | C8956101 | Assy, Roller Bracket |
|
- | |||||
| 172 | M1200004 | Cotter Pin K |
|
- | |||||
| 182 | M1200202 | Pin K |
|
- | |||||
| 194 | 10505101 | Tube, Drain |
|
- | |||||
| 222 | WP3400094 | Screw (Replaces: M0253942) |
|
$ 9.26 | |||||
| 234 | M0102303 | Clamp |
|
- | |||||
| 354 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 462 | M0204339 | Screw Bolt K |
|
- | |||||
| 474 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 522 | 10496104 | Kit,hinge Lh Btm(b) |
|
- | |||||
| 532 | 10496112 | Kit,hinge Rh Btm(b) |
|
- | |||||
| 902 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 1102 | 10508104 | Baffle, M.c. Air |
|
- | |||||
| 1114 | M0585206 | Clip, Wire |
|
- | |||||
| 1134 | M0108001 | Clamp, Tube |
|
- | |||||
| 1202 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 2004 | 10876901 | Brkt, Defrost Timer |
|
- | |||||
| 3702 | 12146901 | Brkt-adj Hinge |
|
- | |||||
| 4002 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 4012 | B8386608 | Gasket |
|
- | |||||
| 4042 | B8386607 | Gasket (1=1ft.) |
|
- | |||||
| 4052 | 10893802 | Shield, Evap |
|
- | |||||
| 4062 | D7850202 | Drip Tray Pnt. |
|
- | |||||
| 4072 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 4082 | 10098801 | Rivet |
|
- | |||||
| 4102 | R0181181 | Kit,dr Closure (Replaces: 12113502) |
|
Immediately | $ 7.55 | ||||
| 4132 | M0580002 | Grommet A |
|
- | |||||
| 4152 | 10527401 | Clip, Evap |
|
- | |||||
| 4162 | 10623003 | Clip, Evaporator |
|
- | |||||
| 4172 | 10890202 | Evap Fan Shroud |
|
- | |||||
| 4713 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 7022 | 12146701 | Shim-bot Hinge |
|
- | |||||
| 7032 | 12146702 | Shim-bot Hinge |
|
- |
