SELECT A DIAGRAM
01 - Coil Parts
02 - Compressor Parts

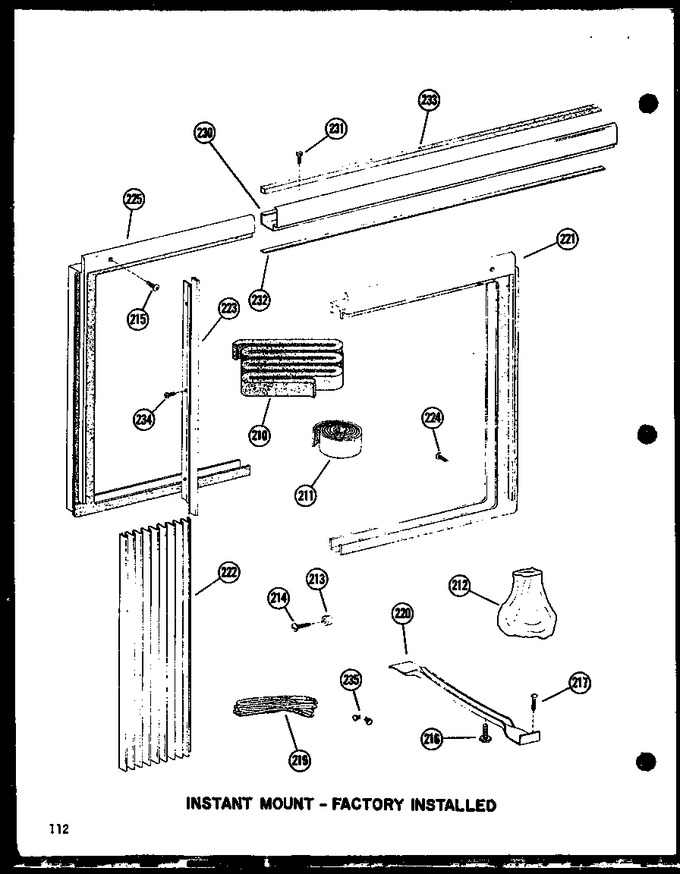

03 - Instant Mount - Factory Installed
04 - Interior Parts
05 - Interior Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 210 | A4660601 | Gasket, Sash Seal Strip |
|
- | |||||
| 211 | A3030302 | Gasket |
|
- | |||||
| 212 | M0010002 | X$x Plastic Bag |
|
- | |||||
| 213 | A4065501 | Spacer K |
|
- | |||||
| 214 | M0212062 | Screw |
|
- | |||||
| 215 | M0213032 | Screw |
|
- | |||||
| 216 | M0200001 | Screw |
|
- | |||||
| 217 | M0211020 | Screw |
|
- | |||||
| 219 | M0275522 | Sealer Ft. A / K |
|
- | |||||
| 220 | C5906201 | Safety Support |
|
- | |||||
| 221 | D5481104 | Sliding Frame |
|
- | |||||
| 222 | D5481202 | Curtain, Sliding Frame, 1 Each |
|
- | |||||
| 223 | B1124802 | Strip-backer |
|
- | |||||
| 224 | M1250031 | Screw |
|
- | |||||
| 225 | D5481103 | Sliding Frame |
|
- | |||||
| 230 | C5903405 | Top Rail-painted |
|
- | |||||
| 231 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 232 | A3030301 | Gasket (inch) |
|
- | |||||
| 233 | A3030310 | Gasket (per Foot) |
|
- | |||||
| 234 | M0211516 | Screw A K |
|
- | |||||
| 235 | M0310009 | Plug |
|
- | |||||
| NI | C5906301 | Box Safety Supt K |
|
- | |||||
| NI | B1124705 | Bottom Rail-painted |
|
- | |||||
| NI | C5905804 | Assembly, Sliding Frame |
|
- | |||||
| NI | A3306902 | Accessory Assy |
|
- | |||||
| NI | C5905803 | Assembly, Sliding Frame |
|
- |
