01 - Coil Parts


02 - Compressor Parts


03 - Instant Mount - Factory Installed


04 - Interior Parts


05 - Interior Parts


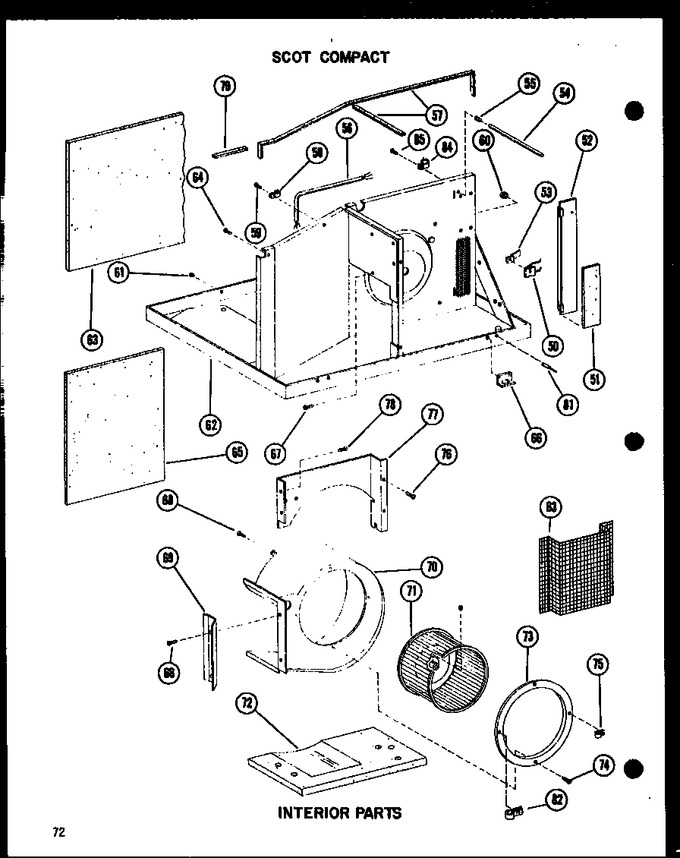

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0211517		Screw		Appelez-nous	-
2	B4115501		Nameplate		Appelez-nous	-
3	A4085001		Backer Plate		Appelez-nous	-
4	C5814803		Outer Case Wld		Appelez-nous	-
5	M0219233		Screw		Appelez-nous	-
6	M0100306		Clip		Appelez-nous	-
7	D5432801		Air Deflector Vert		Appelez-nous	-
8	B5183001		Slide		Appelez-nous	-
9	B5183301		Filter, Air Inlet		Appelez-nous	-
10	A4542805		Retainer		Appelez-nous	-
11	A4680401		Strike		Appelez-nous	-
12	M0117501		Spring Tension		Appelez-nous	-
13	D5444901		Insulation		Appelez-nous	-
14	A4672601		Gasket		Appelez-nous	-
15	A4672501		Gasket		Appelez-nous	-
16	A4672503		Gasket		Appelez-nous	-
17	A4672701		Gasket		Appelez-nous	-
18	D5432706		Horizontal Louver Box Assembly		Appelez-nous	-
19	D5432906		Cabinet Front Assembly, Comple		Appelez-nous	-
19	D5432609		Frame Only, Cabinet Front		Appelez-nous	-
20	A4564801		Hook		Appelez-nous	-
21	A4588701		Tap Strip		Appelez-nous	-
22	C5889301		Insulation		Appelez-nous	-
23	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
24	B4170306		Switch		Appelez-nous	-
25	M0289601		Palnut		Appelez-nous	-
26	C5298302		Control Bracket		Appelez-nous	-
27	C5211801		Cam		Appelez-nous	-
28	M0287706		Nut		Appelez-nous	-
29	A4663603		Spring		Appelez-nous	-
30	C5885001		Escutcheon-control		Appelez-nous	-
31	D7009805		Knob K		Appelez-nous	-
32	D7009806		Knob		Appelez-nous	-
33	YM0115901		Clip, Knob Mounting		Appelez-nous	-
34	A3073601		Bushing		Appelez-nous	-
35	M0103901		Clamp		Appelez-nous	-
36	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
37	B4795202		Thermostat		Appelez-nous	-
38	M0232012		Screw		Appelez-nous	-
39	A4539603		Pop Rivet		Appelez-nous	-
40	A4539602		Pop Rivet		Appelez-nous	-
41	A4539601		Pop Rivet		Appelez-nous	-
42	C5905803		Assembly, Sliding Frame		Appelez-nous	-
43	C5905804		Assembly, Sliding Frame		Appelez-nous	-
44	A3030301		Gasket (inch)		Appelez-nous	-
45	C5903405		Top Rail-painted		Appelez-nous	-
46	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
47	M0272402		Lock Washer		Appelez-nous	-
48	M0211516		Screw A K		Appelez-nous	-
49	B1124705		Bottom Rail-painted		Appelez-nous	-
50	B4778001		Spring		Appelez-nous	-
50	M0246017		Screw		Appelez-nous	-
51	B5107609		Gasket		Appelez-nous	-
51	A3030301		Gasket (inch)		Appelez-nous	-
52	B5131401		Wldmt,damper Door		Appelez-nous	-
53	A4624301		Retainer		Appelez-nous	-
54	A4608604		Rod-damper Door		Appelez-nous	-
55	M0114001		Speed Clip		Appelez-nous	-
56	B5164201		Wiring Harness		Appelez-nous	-
57	A3030302		Gasket		Appelez-nous	-
58	M0102303		Clamp		Appelez-nous	-
59	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
60	A3023301		Grommet		Appelez-nous	-
61	B5100401		Grommet		Appelez-nous	-
62	D5413014		Base Pan Wldmt		Appelez-nous	-
63	D5376601		Insulation		Appelez-nous	-
64	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
65	A4600901		Insulation		Appelez-nous	-
66	A4573601		Support		Appelez-nous	-
67	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
68	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
69	B5126201		Baffle		Appelez-nous	-
70	D5351201		Weld Evap Scroll		Appelez-nous	-
71	C5877501		Blower Wheel		Appelez-nous	-
72	C5258002		Filler Block		Appelez-nous	-
73	C5259201		Inlet Ring		Appelez-nous	-
74	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
75	M0102702		Clamp		Appelez-nous	-
76	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
77	C5298201		Shield		Appelez-nous	-
78	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
79	A3030303		Gasket (per Foot)		Appelez-nous	-
81	WP210720		Pop Rivets   (Replaces: A4539605)				$ 14.16
83	C5958701		Blower Guard		Appelez-nous	-
