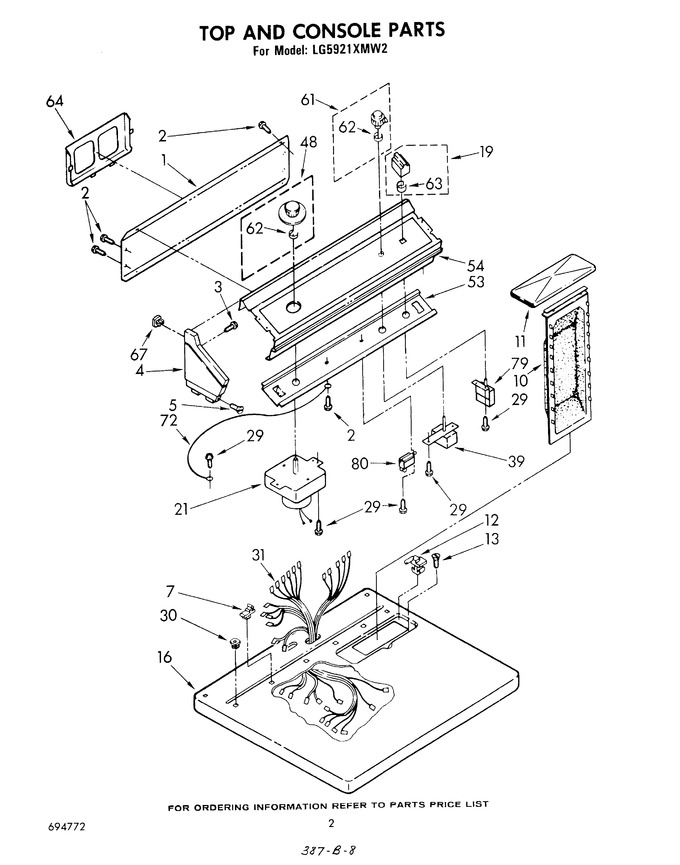

02 - Top And Console , Literature And Optional
03 - Cabinet
04 - Bulkhead
05 - Burner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 359372 | Panel, Rear |
|
- | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | 355326 | Screw, 13-16 X 5/8 |
|
- | |||||
| 4 | 377287 | Cap, End L.h. (platinum) |
|
- | |||||
| 4 | 375305 | Cap, End (l.h.) (white) |
|
- | |||||
| 4 | 375313 | Cap, End (l.h.) (almond) |
|
- | |||||
| 4 | 375318 | Cap, End (l.h.) (golden Harvest) |
|
- | |||||
| 4 | 377284 | Cap, End (l.h.) (toast) |
|
- | |||||
| 4 | 377285 | Cap, End (l.h.) (platinum Cap, End (r.h.)) |
|
- | |||||
| 4 | 375309 | Cap, End L.h. (white) |
|
- | |||||
| 4 | 375315 | Cap, End (l.h.) (almond) |
|
- | |||||
| 4 | 377283 | Cap, End L.h. (golden Harvest) |
|
- | |||||
| 4 | 377286 | Cap, End L.h. (toast) |
|
- | |||||
| 5 | 358225 | Screw, 8-18 X 1 |
|
- | |||||
| 7 | 358472 | Stop, Push-in |
|
- | |||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 695023 | Cover, Lint Screen (platinum) |
|
- | |||||
| 11 | 689313 | Cover, Lint Screen (golden Harvest) |
|
- | |||||
| 11 | 695022 | Cover, Lint Screen (toast) |
|
- | |||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 16 | 688479 | Top (white) |
|
- | |||||
| 16 | 689449 | Top (almond) |
|
- | |||||
| 16 | 689452 | Top (golden Harvest) |
|
- | |||||
| 16 | 694983 | Top (toast) |
|
- | |||||
| 16 | 694984 | Top (platinum) |
|
- | |||||
| 19 | 689857 | Button Assembly |
|
- | |||||
| 21 | 690208 | Timer Assembly 60 Hz. |
|
- | |||||
| 29 | WP3390631 | Screw (Replaces: 339554) |
|
$ 8.25 | |||||
| 30 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 31 | 694748 | Harness, Wiring |
|
- | |||||
| 39 | 694720 | Switch, Rotary |
|
- | |||||
| 48 | 690200 | Timer Knob Assembly |
|
- | |||||
| 53 | 359708 | Bracket, Control |
|
- | |||||
| 54 | 692007 | Panel, Control |
|
- | |||||
| 61 | 690292 | Control Knob Assembly |
|
- | |||||
| 62 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 63 | 599530307 | Clip (Replaces: 90015) |
|
- | |||||
| 64 | 357645 | Rack, Literature |
|
- | |||||
| 67 | 694055 | Clip, Push-on (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 79 | 660648 | Switch, Push-to-start |
|
- | |||||
| 79 | 685067 | Switch, Push-to-start (alt.) |
|
- | |||||
| 79 | 348771 | Switch, Push-to-start (alt.) |
|
- | |||||
| 80 | 350941 | Leveler (thinner) |
|
- | |||||
| 80 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 80 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 80 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 80 | 799351 | Thinner (1 Gal.) |
|
- | |||||
| 80 | WP694419 | Buzzer (Replaces: 694419) |
|
$ 134.05 | |||||
| 80 | 694344 | Instructions, Installation |
|
- | |||||
| 80 | 693849 | Guide, Dryer |
|
- | |||||
| 80 | 691275 | Use & Care Guide |
|
- | |||||
| 80 | 694772 | List, Service Parts |
|
- | |||||
| 80 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 80 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 80 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 80 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 80 | 261890 | Golden Harvest |
|
- | |||||
| 80 | 285365 | Toast |
|
- | |||||
| 80 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 80 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 285368 | Xplatinum (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 261891 | Xgolden Harvest (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- |
