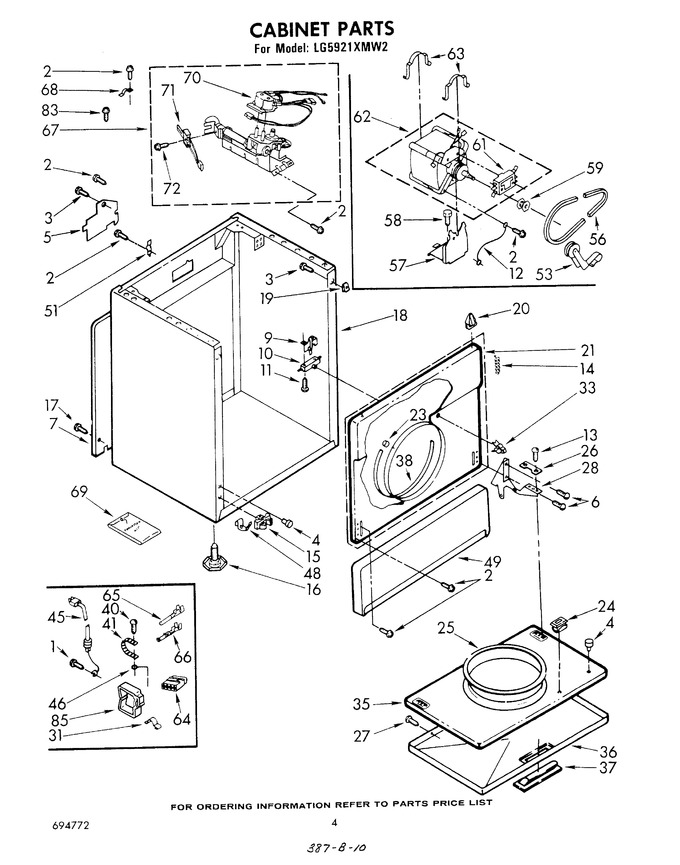

03 - Cabinet


04 - Bulkhead


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-32 X 1/2 (ground)   (Replaces: 690989)			Immediately	$ 8.47
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
3	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 8.47
4	238614		Bumper				$ 84.79
5	W11736322		Cover, Block   (Replaces: 690893)		Appelez-nous	-
6	342043		Screw, 10-32 X 1/2		Appelez-nous	-
7	347736		Panel, Rear		Appelez-nous	-
9	WP691581		Clip, Door Switch   (Replaces: 295998)			Immediately	$ 8.49
10	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
11	WP98129		Screw, 6-20 X 1-3/8   (Replaces: 98129)				$ 8.18
12	690236		Wire, Ground (motor)		Appelez-nous	-
13	WP308685		Screw, 10-12 X 1/2   (Replaces: 98518)			Immediately	$ 7.87
14	237979		Spring, Door (2)		Appelez-nous	-
15	690625		Clip, Toe Panel (2)		Appelez-nous	-
16	49621		Foot, Plastic (4)   (Replaces: 688222)			Immediately	$ 8.55
17	WP489069		Screw, Hex Washer Head (7)   (Replaces: 693994)			Immediately	$ 8.40
18	690848		Cabinet (almond)		Appelez-nous	-
18	694875		Cabinet (platinum)		Appelez-nous	-
18	694874		Cabinet (toast)		Appelez-nous	-
18	690847		Cabinet (white)		Appelez-nous	-
18	690851		Cabinet (golden Harvest)		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.96
20	WP18776		Lock, Front Top   (Replaces: 688904)			Immediately	$ 13.31
21	689535		Panel Assembly, Upper Front (also Includes Illus. 19) (golden Harvest)		Appelez-nous	-
21	338012		Panel Assembly, Upper Front (also Includes Illus. 19) (white)		Appelez-nous	-
21	689533		Panel Assembly, Upper Front (also Includes Illus. 19) (almond)		Appelez-nous	-
21	695026		Panel Assembly, Upper Front (also Includes Illus. 19) (toast)		Appelez-nous	-
21	695027		Panel Assembly, Upper Front (also Includes Illus. 19) (platinum)		Appelez-nous	-
23	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 23.55
24	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.89
25	WP3390733		Seal, Door   (Replaces: 685762)			Immediately	$ 121.78
26	W11252547		Clip, Hinge (2)   (Replaces: 337189)				$ 22.46
27	WP694091		Screw, 6-18 X 1/2   (Replaces: 694091)				$ 7.55
28	687906		Hinge, L.h.		Appelez-nous	-
28	687905		Hinge, R.h.		Appelez-nous	-
31	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.64
33	279570		Strike, Panel   (Replaces: 693717)			Immediately	$ 8.89
35	695003		Door, Rear (toast)		Appelez-nous	-
35	695004		Door, Rear (platinum)		Appelez-nous	-
35	346370		Door, Rear (white)		Appelez-nous	-
35	689258		Door, Rear (almond)		Appelez-nous	-
35	689261		Door, Rear (golden Harvest)		Appelez-nous	-
36	695035		Door, Front (platinum)		Appelez-nous	-
36	695034		Door, Front (toast)		Appelez-nous	-
36	689333		Door, Front (golden Harvest)		Appelez-nous	-
36	689330		Door, Front (almond)		Appelez-nous	-
36	348728		Door, Front (white)		Appelez-nous	-
37	WP348721		Handle, Door (white)   (Replaces: 690265)				$ 81.78
37	690269		Handle, Door (golden Harvest)		Appelez-nous	-
37	690266		Handle, Door (almond)		Appelez-nous	-
37	695017		Handle, Door (platinum)		Appelez-nous	-
37	695016		Handle, Door (toast)		Appelez-nous	-
38	279264		Seal & Bearing Assembly   (Replaces: 349464)			Immediately	$ 74.52
40	132848		Screw, 10-24 X 1		Appelez-nous	-
41	22965		Clamp, Ground		Appelez-nous	-
45	W11222083		Cord, Power   (Replaces: 344020)				$ 126.62
46	364089		Wire, Ground		Appelez-nous	-
48	WP297092		Clip, Hinge (2)   (Replaces: 297092)			Immediately	$ 8.95
49	695000		Panel, Toe (platinum)		Appelez-nous	-
49	694999		Panel, Toe (toast)		Appelez-nous	-
49	237035		Panel, Toe (white)		Appelez-nous	-
49	689539		Panel, Toe (golden Harvest)		Appelez-nous	-
49	689537		Panel, Toe (almond)		Appelez-nous	-
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 8.21
53	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
56	341241		Belt, Drive			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 127.65
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 14.04
59	WP8066184		Pulley, 60 Hz.   (Replaces: 694871)			Immediately	$ 51.02
61	279827		Switch (use W/695075 Motor)   (Replaces: 337351)			Immediately	$ 191.95
62	279827		Motor Assembly 60 Hz.   (Replaces: 695075)			Immediately	$ 191.95
63	WP660658		Clip, Motor (alt.)   (Replaces: 685441)				$ 8.22
63	WP660658		Clip, Motor   (Replaces: 660658)				$ 8.22
63	WP660658		Clip, Motor (alt.)   (Replaces: 343481)				$ 8.22
64	353424		Plug, 3-way (use W/94613)				$ 18.95
64	353425		Receptacle, 3-way (use W/94614)		Appelez-nous	-
65	94613		Terminal, (male)		Appelez-nous	-
66	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
67	694670		Burner Assembly, 60 Hz. (see Pages 7 & 8 For Further Breakdown)		Appelez-nous	-
68	341029		Clamp, Pipe		Appelez-nous	-
69	279243		Kit, Conversion Type 1 To Type 3 (mfd)		Appelez-nous	-
69	49572A		Kit, Conversion Type 1, 2 And 3 To Type 4 (lpg)   (Replaces: 694572)			Immediately	$ 36.19
70	279923		Valve, Gas 60 Hz. (complete)   (Replaces: 694054)			Immediately	$ 286.03
71	279311		Ignitor (686590) (alt.)   (Replaces: 660991)			Immediately	$ 78.90
72	WPW10366705		Lock Screw & Washer (8-32 X 5/8)   (Replaces: 686953)				$ 7.88
83	343826		Screw, Burner Mounting		Appelez-nous	-
85	688412		Clip, Harness Retainer		Appelez-nous	-
