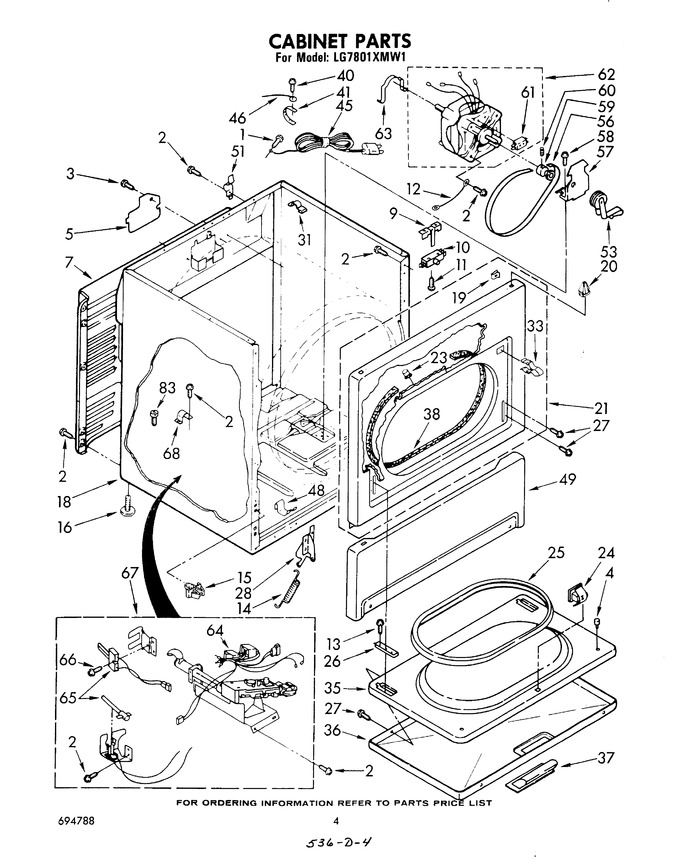

02 - Top And Console , Literature And Optional


03 - Cabinet


04 - Bulkhead


05 - 688637 Burner


06 - 688639 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-32 X 1/2 (external Ground)   (Replaces: 690989)			Immediately	$ 7.85
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
3	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.85
4	238614		Bumper				$ 80.76
5	W11736322		Cover, Block   (Replaces: 690893)		Appelez-nous	-
7	348364		Panel, Rear		Appelez-nous	-
9	WP691581		Lever, Door Switch   (Replaces: 295998)			Immediately	$ 8.09
10	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
11	WP98129		Screw, 6-20 X 1-3/8   (Replaces: 98129)				$ 7.56
12	690236		Wire, Ground		Appelez-nous	-
13	WP308685		Screw, 10-12 X 1/2   (Replaces: 98518)			Immediately	$ 7.87
14	WPW10041960		Spring, Door (2)   (Replaces: 692495)			Immediately	$ 40.67
15	690625		Clip, Toe Panel (2)		Appelez-nous	-
16	49621		Foot, Dryer (4)   (Replaces: 688222)			Immediately	$ 8.55
18	690845		Cabinet (golden Harvest)		Appelez-nous	-
18	694876		Cabinet (toast)		Appelez-nous	-
18	690841		Cabinet (white)		Appelez-nous	-
18	690842		Cabinet (almond)		Appelez-nous	-
18	690843		Cabinet (coffee)		Appelez-nous	-
18	690844		Cabinet (new Avocado)		Appelez-nous	-
18	694877		Cabinet (platinum)		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
20	WP18776		Lock, Front Top (2)   (Replaces: 688904)			Immediately	$ 12.68
21	692455		Panel Front (platinum)		Appelez-nous	-
21	692437		Panel Front (coffee)		Appelez-nous	-
21	692438		Panel Front (new Avocado)		Appelez-nous	-
21	692439		Panel Front (golden Harvest)		Appelez-nous	-
21	692436		Panel Front (almond)		Appelez-nous	-
21	692454		Panel Front (toast)		Appelez-nous	-
21	279740		Panel Front (white)   (Replaces: 692435)				$ 361.97
23	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 20.65
24	279570		Catch, Door Assembly   (Replaces: 690081)			Immediately	$ 8.89
25	W10906683		Seal, Door   (Replaces: 692494)				$ 128.53
26	W11252547		Clip, Hinge (2)   (Replaces: 337189)				$ 21.39
27	WP694091		Screw   (Replaces: 694091)				$ 7.19
28	WP8066057		Hinge, L.h.   (Replaces: 692501)				$ 96.14
28	WP8066056		Hinge, R.h.   (Replaces: 692498)			Immediately	$ 98.56
31	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.09
33	279570		Strike, Panel   (Replaces: 693717)			Immediately	$ 8.89
35	WP695737		Door, Rear (white)   (Replaces: 692324)				$ 254.56
35	WP695737		Door, Rear (almond)   (Replaces: 692325)				$ 254.56
35	WP695737		Door, Rear (coffee)   (Replaces: 692326)				$ 254.56
35	WP695737		Door, Rear (new Avocado)   (Replaces: 692327)				$ 254.56
35	WP695737		Door, Rear (golden Harvest)   (Replaces: 692328)				$ 254.56
35	WP695737		Door, Rear (toast)   (Replaces: 695134)				$ 254.56
35	WP695737		Door, Rear (platinum)   (Replaces: 695135)				$ 254.56
36	695130		Door, Front (toast)		Appelez-nous	-
36	692319		Door, Front (almond)		Appelez-nous	-
36	WP3393549		Door, Front (white)   (Replaces: 692318)				$ 176.51
36	692320		Door, Front (coffee)		Appelez-nous	-
36	692321		Door, Front (new Avocado)		Appelez-nous	-
36	692322		Door, Front (golden Harvest)		Appelez-nous	-
36	695131		Door, Front (platinum)		Appelez-nous	-
37	695016		Handle, Door (toast)		Appelez-nous	-
37	690269		Handle, Door (golden Harvest)		Appelez-nous	-
37	695017		Handle, Door (platinum)		Appelez-nous	-
37	WP348721		Handle, Door (white)   (Replaces: 690265)				$ 77.89
37	690266		Handle, Door (almond)		Appelez-nous	-
37	690267		Handle, Door (coffee)		Appelez-nous	-
37	WP348721		Handle, Door (new Avocado)   (Replaces: 690268)				$ 77.89
38	W11035878		Seal & Bearing Assembly   (Replaces: 692493)			Immediately	$ 78.78
40	132848		Screw, 10-24 X 1		Appelez-nous	-
41	22965		Clamp, Ground		Appelez-nous	-
45	W11222083		Cord, Power   (Replaces: 344020)				$ 120.59
46	364089		Wire, Ground		Appelez-nous	-
48	WP297092		Clip, Hinge (2)   (Replaces: 297092)			Immediately	$ 8.24
49	695142		Panel, Toe (toast)		Appelez-nous	-
49	692431		Panel, Toe (golden Harvest)		Appelez-nous	-
49	692430		Panel, Toe (new Avocado)		Appelez-nous	-
49	692429		Panel, Toe (coffee)		Appelez-nous	-
49	692428		Panel, Toe (almond)		Appelez-nous	-
49	692427		Panel, Toe (white)		Appelez-nous	-
49	695143		Panel, Toe (platinum)		Appelez-nous	-
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
53	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
56	341241		Belt, Drive   (Replaces: 349533)			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 13.37
59	348946		Pulley, 60 Hz. (includes Illus. 60)		Appelez-nous	-
60	690046		Set Screw		Appelez-nous	-
61	279827		Switch (use W/690870 Motor)   (Replaces: 337351)			Immediately	$ 191.95
62	279827		Motor Assembly 60 Hz.   (Replaces: 690870)			Immediately	$ 191.95
63	WP660658		Clamp, Motor (2) (alt.)   (Replaces: 343481)				$ 7.83
63	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.83
63	WP660658		Clamp, Motor (2) (alt.)   (Replaces: 685441)				$ 7.83
64	685947		Coi., 60 Hz.		Appelez-nous	-
65	279311		Ignitor (use W/688637 Burner)   (Replaces: 686590)			Immediately	$ 78.90
65	279311		Ignitor (use W/688639 Burner)   (Replaces: 338900)			Immediately	$ 78.90
66	WPW10366705		Lock Screw & Washer (8-32 X 5/8)   (Replaces: 686953)				$ 7.50
67	W10402145		Kit, Conversion Type 1, 2 & 3 To Type 4 (lpg)   (Replaces: 239072)				$ 108.77
67	279243		Kit, Conversion Type 1 To Type 3 (mfd)		Appelez-nous	-
67	688639		Burner Assembly, 60 Hz. (alternate) (see Page 9 For Further Burner Breakdown)		Appelez-nous	-
67	688637		Burner Assembly, 60 Hz. (alternate) (see Page 8 For Further Burner Breakdown)		Appelez-nous	-
68	341029		Clamp, Pipe		Appelez-nous	-
83	343826		Screw, Burner Mounting		Appelez-nous	-
