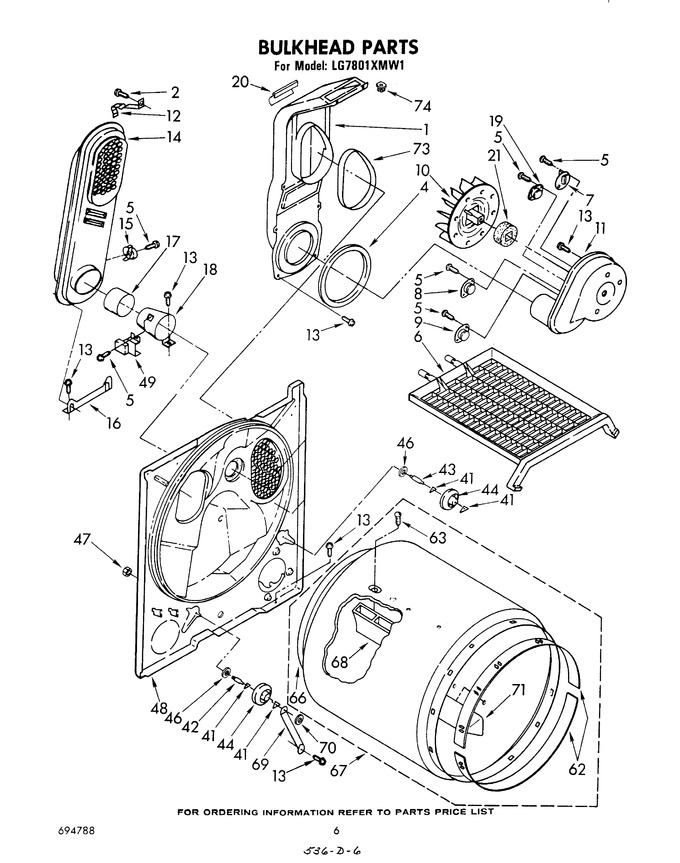

04 - Bulkhead


05 - 688637 Burner


06 - 688639 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11117429		Lint Chute Assembly   (Replaces: 348368)				$ 175.01
2	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.85
4	W11415783		Seal, Lint Chute   (Replaces: 347139)			Immediately	$ 18.23
5	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
6	692990		Dry Rack		Appelez-nous	-
7	WP3390719		Fuse, Thermal (alt.)   (Replaces: 688841)			Immediately	$ 31.57
7	WP3390719		Fuse, Thermal   (Replaces: 660877)			Immediately	$ 31.57
7	WP3390719		Fuse, Thermal (alt.)   (Replaces: 690198)			Immediately	$ 31.57
8	AT022		Thermostat, Operating (155~f) (68\.\3~c)   (Replaces: 660073)			Immediately	$ 35.17
8	WP694674		Thermostat, Operating (155~f) (68.3~c) (alt.)   (Replaces: 299620)			Immediately	$ 50.51
8	LS2-155		Thermostat, Operating (155~f) (68.3~c) (alt.)   (Replaces: 341199)			Immediately	$ 27.33
9	AT022		Thermostat, Operating 150~f (65.6~c)   (Replaces: 660039)			Immediately	$ 35.17
9	WP694674		Thermostat, Operating 150~f (66~c) (alt.)   (Replaces: 341146)			Immediately	$ 50.51
9	WP694674		Thermostat, Operating 150~f (66~c) (alt.)   (Replaces: 341147)			Immediately	$ 50.51
10	WP694089		Wheel, Blower   (Replaces: 694089)			Immediately	$ 37.66
11	348493		Housing, Blower		Appelez-nous	-
12	279771		Clip   (Replaces: 337272)				$ 14.33
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
14	279900		Box, Heater   (Replaces: 685458)				$ 344.36
15	338471		Thermostat, 205~f (96~c) (alt.)		Appelez-nous	-
15	341196		Thermostat, 205~f (96~c) (alt.)				$ 33.17
15	660036		Thermostat, 205 F (96 C)		Appelez-nous	-
16	348484		Support, Heater Box		Appelez-nous	-
17	279900		Collar, Funnel   (Replaces: 348516)				$ 344.36
18	279900		Funnel, Burner   (Replaces: 347389)				$ 344.36
19	WP694674		Thermostat, Operating (140~f) (60.0~c)   (Replaces: 660040)			Immediately	$ 50.51
19	LS2-140		Thermostat, Operating (140~f) (60.0~c) (alt.)   (Replaces: 342813)			Immediately	$ 27.33
19	LS2-140		Thermostat, Operating (140~f) (60.0~c) (alt.)   (Replaces: 342812)			Immediately	$ 27.33
20	686770		Support Protector		Appelez-nous	-
21	694630		Seal, Blower		Appelez-nous	-
41	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
42	WPW10359270		Shaft, L.h.   (Replaces: 347364)			Immediately	$ 72.71
43	WPW10359269		Shaft, R.h.   (Replaces: 339489)			Immediately	$ 47.30
44	349241T		Roller, Support   (Replaces: 349241)			Immediately	$ 29.53
46	WP348197		Washer, Support   (Replaces: 348197)				$ 7.19
47	120377		Nut, 3/8-16		Appelez-nous	-
48	W11178667		Bulkhead   (Replaces: 685816)				$ 225.91
49	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
62	279441		Ring, Bearing			Immediately	$ 66.22
63	690372		Screw, 11-16 X 7/8		Appelez-nous	-
66	279408		Seal, Rear Drum   (Replaces: 347885)				$ 73.58
67	692492		Drum Assembly		Appelez-nous	-
68	WP692490		Baffle, Drum (2)   (Replaces: 692490)				$ 159.27
69	W11684613		Bracket, Support   (Replaces: 348944)				$ 20.94
70	WP90296		Clip   (Replaces: 90296)				$ 7.85
71	WP3403636		Baffle, Drum (1)   (Replaces: 692491)				$ 138.66
73	WP339956		Seal   (Replaces: 339956)			Immediately	$ 8.63
74	98460		Nut, Push-in (2)				$ 12.07
