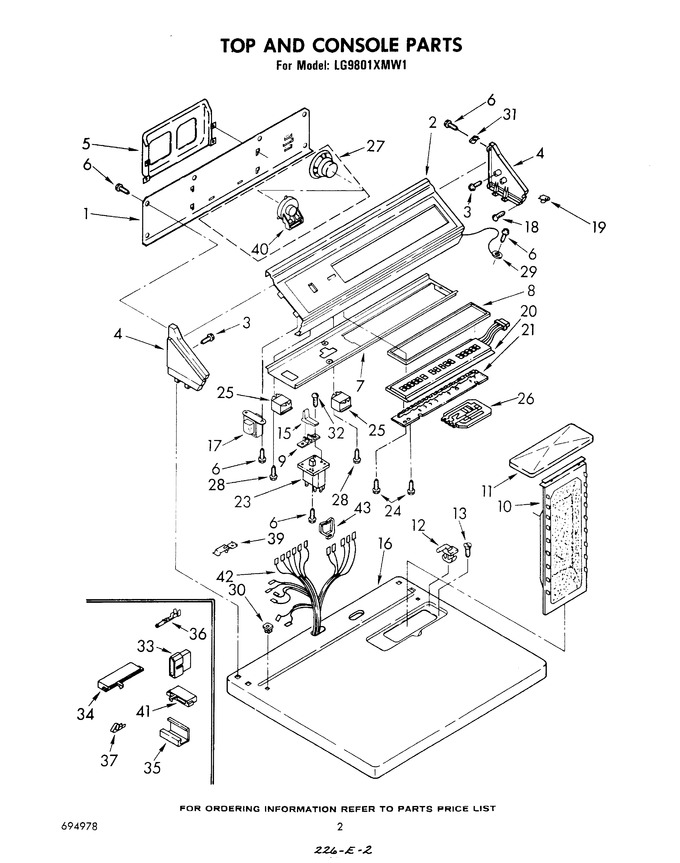

| 1 | 690096 | Panel, Rear Console |
|
- | |||||
| 2 | 693655 | Panel, Control |
|
- | |||||
| 3 | 355326 | Screw, 13/16 X 5/8 (4) |
|
- | |||||
| 4 | 377287 | End Cap Assembly, L.h. (platinum) |
|
- | |||||
| 4 | 375305 | End Cap Assembly, L.h. (white) |
|
- | |||||
| 4 | 375318 | End Cap Assembly, L.h. (golden Harvest) |
|
- | |||||
| 4 | 377283 | End Cap Assembly, L.h. (golden Harvest) |
|
- | |||||
| 4 | 377286 | End Cap Assembly, L.h. (toast) |
|
- | |||||
| 4 | 375313 | End Cap Assembly, L.h. (almond) |
|
- | |||||
| 4 | 377284 | End Cap Assembly, L.h. (toast) |
|
- | |||||
| 4 | 377285 | End Cap Assembly, L.h. (platinum End Cap Assembly, R.h.) |
|
- | |||||
| 4 | 375309 | End Cap Assembly, L.h. (white) |
|
- | |||||
| 4 | 375315 | End Cap Assembly, L.h. (almond) |
|
- | |||||
| 5 | 357645 | Rack, Literature |
|
- | |||||
| 6 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 7 | 694274 | Bracket, Control |
|
- | |||||
| 8 | 359787 | Trim, Frame |
|
- | |||||
| 9 | 358563 | Pivot, Lever |
|
- | |||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 695022 | Cover, Lint Screen (toast) |
|
- | |||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 695023 | Cover, Lint Screen (platinum) |
|
- | |||||
| 11 | 689313 | Cover, Lint Screen (golden Harvest) |
|
- | |||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 12 | WPW10044480 | Hinge, Cover (l.h.) (Replaces: 339230) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, Cover (r.h.) (Replaces: 339229) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 15 | 358564 | Lever |
|
- | |||||
| 16 | 694983 | Top (toast) |
|
- | |||||
| 16 | 688479 | Top (white) |
|
- | |||||
| 16 | 689449 | Top (almond) |
|
- | |||||
| 16 | 689452 | Top (golden Harvest) |
|
- | |||||
| 16 | 694984 | Top (platinum) |
|
- | |||||
| 17 | 60996 | Transformer |
|
- | |||||
| 18 | 358225 | Screw, 8-18 (2) |
|
- | |||||
| 19 | 358472 | Stop, Push-in (2) |
|
- | |||||
| 20 | 693263 | Module, Touch |
|
- | |||||
| 21 | 61292 | Display Assembly |
|
- | |||||
| 23 | 691359 | Relay, Start-to-stop |
|
- | |||||
| 24 | 690756 | Screw, 8-18 X 1/2 (6) |
|
- | |||||
| 25 | 693891 | Power Relay |
|
- | |||||
| 26 | 61203 | Microcomputer Assembly |
|
- | |||||
| 27 | 359201 | Speaker & Housing |
|
- | |||||
| 28 | 339583 | Screw, 6-20 X 1/2 |
|
- | |||||
| 29 | 690853 | Wire, Ground |
|
- | |||||
| 30 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 31 | 98084 | Clip, Push-on (4) |
|
- | |||||
| 32 | WPW10068250 | Screw (Replaces: 358644) |
|
$ 4.27 | |||||
| 33 | 342529 | Plug, 4 Conductor |
|
- | |||||
| 34 | 60447 | Connector, 9 Circuit |
|
- | |||||
| 35 | 60719 | Cap, Strain Relief |
|
- | |||||
| 36 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 36 | 94613 | Terminal, (male) |
|
- | |||||
| 37 | 60279 | Terminal |
|
- | |||||
| 39 | 357144 | Clip, Wire (tech Sheet/top) |
|
- | |||||
| 40 | 359188 | Housing, Speaker |
|
- | |||||
| 41 | 60671 | Connector, 5 Circuit |
|
- | |||||
| 42 | 694296 | Harness, Wiring |
|
- | |||||
| 43 | 799351 | Thinner (1 Gal.) |
|
- | |||||
| 43 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 43 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 43 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 43 | 688412 | Clip, Harness Retainer |
|
- | |||||
| 43 | 694344 | Instructions, Installation |
|
- | |||||
| 43 | 694125 | Tech Sheet (service Information) |
|
- | |||||
| 43 | 691269 | Use & Care Guide |
|
- | |||||
| 43 | 693849 | Guide, Dryer |
|
- | |||||
| 43 | 694978 | List, Parts |
|
- | |||||
| 43 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 43 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 43 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 43 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 43 | 261890 | Golden Harvest |
|
- | |||||
| 43 | 285365 | Toast |
|
- | |||||
| 43 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 43 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 43 | 350941 | Leveler (thinner) |
|
- | |||||
| 285368 | Xplatinum (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 261891 | Xgolden Harvest (uncut) |
|
- | ||||||
| 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 |
