SELECT A DIAGRAM

02 - Top And Console , Literature And Optional

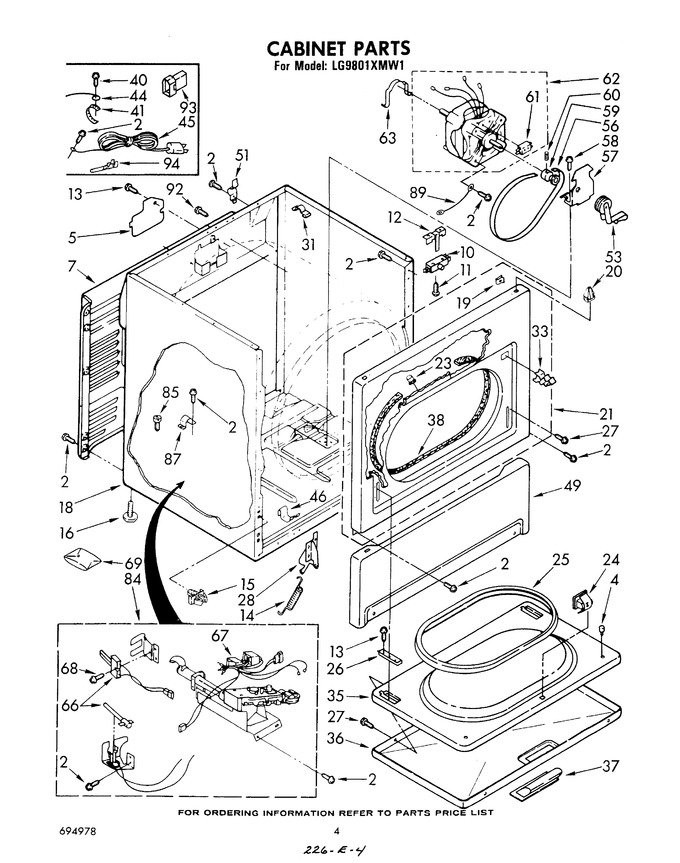

03 - Cabinet


04 - Bulkhead


05 - 688637 Burner


06 - 688639 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
4	238614		Bumper (2)				$ 84.79
5	W11736322		Cover, Block   (Replaces: 690893)		Appelez-nous	-
7	348364		Panel, Rear		Appelez-nous	-
10	691361		Switch, Door		Appelez-nous	-
11	WP98129		Screw, 6-20 X 1-3/8 (2)   (Replaces: 98129)				$ 8.18
12	WP691581		Door Switch Lever   (Replaces: 295998)			Immediately	$ 8.49
13	WP308685		Screw, 10-12 X 1/2   (Replaces: 98518)			Immediately	$ 7.87
14	WPW10041960		Spring, Door (2)   (Replaces: 692495)			Immediately	$ 42.70
15	690625		Clip, Toe Panel (2)		Appelez-nous	-
16	49621		Foot, Dryer (4)   (Replaces: 688222)			Immediately	$ 8.55
18	690845		Cabinet (golden Harvest)		Appelez-nous	-
18	694877		Cabinet (platinum)		Appelez-nous	-
18	694876		Cabinet (toast)		Appelez-nous	-
18	690842		Cabinet (almond)		Appelez-nous	-
18	690841		Cabinet (white)		Appelez-nous	-
19	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.96
20	WP18776		Lock, Front Top (2)   (Replaces: 688904)			Immediately	$ 13.31
21	692455		Upper Front Panel (platinum)		Appelez-nous	-
21	692454		Upper Front Panel (toast)		Appelez-nous	-
21	692439		Upper Front Panel (golden Harvest)		Appelez-nous	-
21	692436		Upper Front Panel (almond)		Appelez-nous	-
21	279740		Upper Front Panel (white)   (Replaces: 692435)				$ 380.07
23	279220		Clip, Felt Pad   (Replaces: 685203)				$ 23.55
24	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.89
25	W10906683		Seal, Door   (Replaces: 692494)				$ 134.96
26	W11252547		Clip, Hinge (2)   (Replaces: 337189)				$ 22.46
27	WP694091		Screw, 6-18 X 1/2   (Replaces: 694091)				$ 7.55
28	WP8066056		Hinge, R.h.   (Replaces: 692498)			Immediately	$ 103.36
28	WP8066057		Hinge, L.h.   (Replaces: 692501)				$ 100.95
31	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.64
33	279570		Strike, Panel   (Replaces: 693717)			Immediately	$ 8.89
35	WP695737		Door, Rear (almond)   (Replaces: 692325)				$ 267.29
35	WP695737		Door, Rear (platinum)   (Replaces: 695135)				$ 267.29
35	WP695737		Door, Rear (golden Harvest)   (Replaces: 692328)				$ 267.29
35	WP695737		Door, Rear (toast)   (Replaces: 695134)				$ 267.29
35	WP695737		Door, Rear (white)   (Replaces: 692324)				$ 267.29
36	692319		Door, Front (almond)		Appelez-nous	-
36	692322		Door, Front (golden Harvest)		Appelez-nous	-
36	695130		Door, Front (toast)		Appelez-nous	-
36	695131		Door, Front (platinum)		Appelez-nous	-
36	WP3393549		Door, Front (white)   (Replaces: 692318)				$ 185.34
37	695175		Handle, Door (platinum)		Appelez-nous	-
37	690269		Handle, Door (golden Harvest)		Appelez-nous	-
37	695174		Handle, Door (toast)		Appelez-nous	-
37	690266		Handle, Door (almond)		Appelez-nous	-
37	WP348721		Handle, Door (white)   (Replaces: 690265)				$ 81.78
38	W11035878		Seal & Bearing Assembly   (Replaces: 692493)			Immediately	$ 78.78
40	132848		Screw, 10-24 X 1		Appelez-nous	-
41	22965		Strap, Ground		Appelez-nous	-
44	364089		Wire, Ground		Appelez-nous	-
45	W11222083		Cord, Power   (Replaces: 344020)				$ 126.62
46	WP297092		Clip, Hinge (2)   (Replaces: 297092)			Immediately	$ 8.95
49	692428		Panel, Toe (almond)		Appelez-nous	-
49	692427		Panel, Toe (white)		Appelez-nous	-
49	695143		Panel, Toe (platinum)		Appelez-nous	-
49	692431		Panel, Toe (golden Harvest)		Appelez-nous	-
49	695142		Panel, Toe (toast)		Appelez-nous	-
51	WP8066217		Hinge Top   (Replaces: 238088)				$ 8.21
53	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
56	341241		Belt, Drive   (Replaces: 349533)			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 127.65
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 14.04
59	348946		Pulley (includes Illus. 60)		Appelez-nous	-
60	690046		Set Screw		Appelez-nous	-
61	279827		Switch ((use W/689788 Motor))   (Replaces: 349588)			Immediately	$ 191.95
61	279827		Switch (use W/690870 Motor)   (Replaces: 337351)			Immediately	$ 191.95
62	279827		Motor, 60 Hz. (alt.)   (Replaces: 690870)			Immediately	$ 191.95
62	279827		Motor, 60 Hz.   (Replaces: 660199)			Immediately	$ 191.95
62	279827		Motor, 60 Hz. (alt.)   (Replaces: 689788)			Immediately	$ 191.95
63	WP660658		Clamp, Motor (alt.)   (Replaces: 343481)				$ 8.22
63	WP660658		Clamp, Motor (alt.)   (Replaces: 685441)				$ 8.22
63	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
66	279311		Ignitor (use W/688637 Burner)   (Replaces: 686590)			Immediately	$ 78.90
66	279311		Ignitor (use W/688639 Burner)   (Replaces: 338900)			Immediately	$ 78.90
67	685947		Coil, 60 Hz.		Appelez-nous	-
68	WPW10366705		Lock Screw & Washer   (Replaces: 686953)				$ 7.88
69	279243		Kit, Conversion (type 1 To Type 3)		Appelez-nous	-
69	W10402145		Kit, Conversion To Type 4 (lpg)   (Replaces: 239072)				$ 114.21
84	688639		Burner Assembly, 60 Hz. (alternate) (refer To Page 9 For Further Burner Breakdown)		Appelez-nous	-
84	688637		Burner Assembly, 60 Hz. (alternate) (refer To Page 8 For Further Burner Breakdown)		Appelez-nous	-
85	343826		Screw, Burner Mounting		Appelez-nous	-
87	341029		Clamp		Appelez-nous	-
89	690236		Wire, Ground		Appelez-nous	-
92	WP681414		Screw, 10-32 X 1/2 (grounding)   (Replaces: 690989)			Immediately	$ 8.47
93	353425		Receptacle, 3-way (use W/94614 Terminal)		Appelez-nous	-
93	353424		Plug, 3-way (use W/94613 Terminal)				$ 18.95
94	94613		Terminal, (male)		Appelez-nous	-
94	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05

    View Diagram in Separate Window       Print Part List
