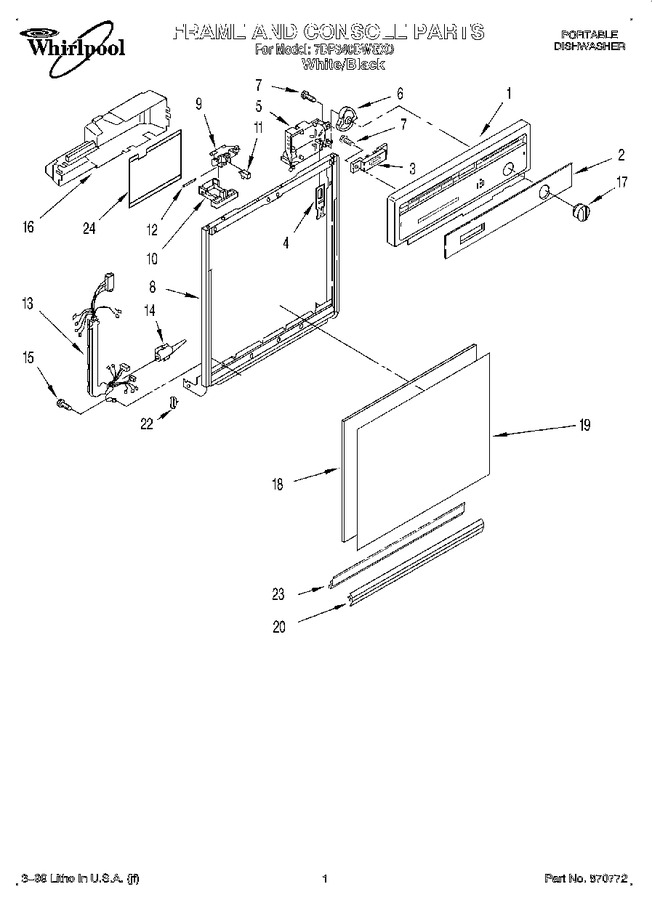

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Pump And Spray Arm


05 - Pump And Motor


06 - Dishrack


07 - Miscellaneous, Lit/optional


08 - Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8051469		Console (includes Item 2)		Appelez-nous	-
2	8051325		Insert, Console		Appelez-nous	-
3	3374876		Switch		Appelez-nous	-
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	3375079		Timer		Appelez-nous	-
6	WP8271510		Cam   (Replaces: 3375140)				$ 8.96
7	WP304231		Screw, 8-18 X 1/2 (5)   (Replaces: 304231)			Immediately	$ 8.14
8	3374711		Door Frame (includes Item 23)				$ 158.94
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3369457		Lever, Latch				$ 5.84
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8051142		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP488234		Screw, 8-32 X 1/4   (Replaces: 3400803)				$ 7.08
16	3379954		Cover, Timer		Appelez-nous	-
17	3375348		Knob, Timer				$ 64.33
18	3368979		Spacer				$ 38.99
19	WP3369769		Front Panel (white/black)   (Replaces: 3369769)				$ 59.42
20	3374010		Retainer, Panel				$ 40.68
22	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
23	WP3374716		Channel, Retainer (also Order Item No.20)   (Replaces: 3374716)				$ 100.22
24	3379671		Shield, Control Cover		Appelez-nous	-
