SELECT A DIAGRAM
01 - Frame And Console
02 - Inner Door
03 - Tub Assembly
04 - Pump And Spray Arm
05 - Pump And Motor
06 - Dishrack
07 - Miscellaneous, Lit/optional
08 - Cabinet
SELECT A DIAGRAM
New Model Search:

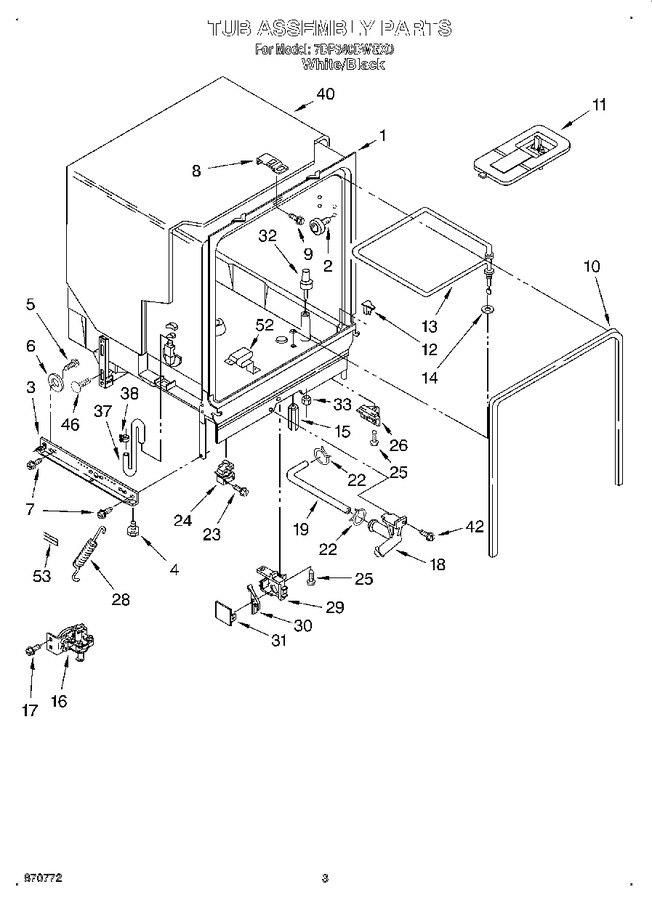

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3378159 | Tub And Support Assembly |
|
- | |||||
| 2 | 3380371 | Tub, Wheel Assembly (8) |
|
$ 17.44 | |||||
| 3 | 3368933 | Runner (2) |
|
$ 15.85 | |||||
| 4 | 8193716 | Leveler (2) (Replaces: 3376439) |
|
Immediately | $ 88.96 | ||||
| 5 | 3370389 | Screw, Shoulder (2) |
|
$ 5.70 | |||||
| 6 | 302819 | Wheel (2) |
|
$ 5.65 | |||||
| 7 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 8 | 3378149 | Plate, Latch |
|
$ 44.37 | |||||
| 9 | 3374720 | Screw |
|
$ 28.23 | |||||
| 10 | WPW10509257 | Gasket (Replaces: 3376927) |
|
Immediately | $ 74.12 | ||||
| 11 | WP3369322 | Grate (Replaces: 3369322) |
|
$ 99.06 | |||||
| 12 | WP8528862 | Deflector (2) (Replaces: 3378140) |
|
$ 63.90 | |||||
| 13 | WPW10082894 | Heater (includes Item 14) (Replaces: 3379269) |
|
$ 141.52 | |||||
| 14 | WP717273 | Washer, Rubber (2) (Replaces: 717273) |
|
Immediately | $ 7.55 | ||||
| 15 | 3378706 | Nut (2) (heater Terminal) |
|
- | |||||
| 16 | WP8274220 | Water Valve (Replaces: 8274220) |
|
$ 223.48 | |||||
| 17 | WP489069 | Screw 8-18 X 1/2 (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 18 | 3369421 | Check, Valve Assembly |
|
- | |||||
| 19 | 3369180 | Hose, Coupler |
|
- | |||||
| 22 | 371499 | Clamp (double) |
|
$ 12.95 | |||||
| 23 | WP489128 | Screw (Replaces: 3370225) |
|
$ 11.40 | |||||
| 24 | W10102260 | Relay (Replaces: 3369063) |
|
$ 143.07 | |||||
| 25 | WP304231 | Screw, 8-18 X 1/2 (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 26 | WP3368928 | Fuse, Thermal (Replaces: 3368928) |
|
Immediately | $ 81.57 | ||||
| 28 | 3373228 | Spring, Door (2) |
|
$ 24.53 | |||||
| 29 | 3369048 | Housing, Float Switch |
|
$ 46.38 | |||||
| 30 | 3369067 | Switch, Float |
|
- | |||||
| 31 | 3369049 | Cover, Switch Housing |
|
- | |||||
| 32 | WP8519552 | Float (Replaces: 3369072) |
|
$ 124.92 | |||||
| 33 | 717488 | Nut |
|
$ 12.83 | |||||
| 37 | 3371030 | Hose, Inlet |
|
- | |||||
| 38 | WP596669 | Clamp (Replaces: 301958) |
|
Immediately | $ 8.82 | ||||
| 40 | W11086533 | Sound Shield (Replaces: 8055335) |
|
Immediately | $ 31.30 | ||||
| 42 | W11693756 | Screw, 8-18 X 1/2 (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 46 | WP304666 | Retainer, Push (2) (Replaces: 304666) |
|
$ 29.45 | |||||
| 52 | 3379740 | Support, Heater |
|
$ 51.56 | |||||
| 53 | 8052018 | Friction Pad (velcro) |
|
- |
