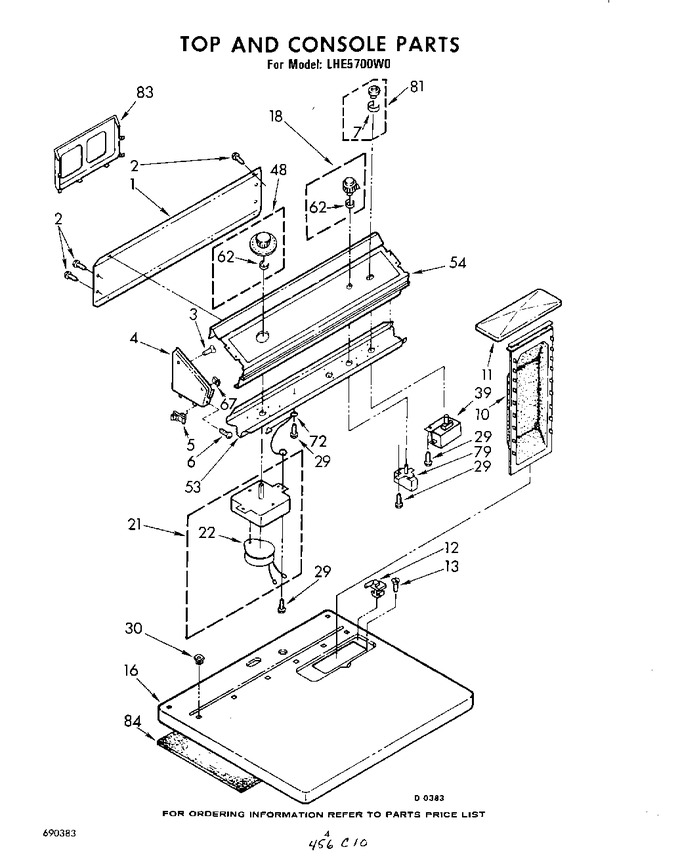

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 358434 | Panel, Rear Console |
|
- | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | 355326 | Screw, 13-16 X 5/8 |
|
- | |||||
| 4 | 375314 | Cap, End (l.h.) (coffee) |
|
- | |||||
| 4 | 375305 | Cap, End (l.h.) (white) |
|
- | |||||
| 4 | 375313 | Cap, End (l.h.) (almond) |
|
- | |||||
| 4 | 375317 | Cap, End (l.h.) (new Avocado) |
|
- | |||||
| 4 | 375318 | Cap, End (l.h.) (golden Harvest Cap, End (r.h.)) |
|
- | |||||
| 4 | 375309 | Cap, End L.h. (white) |
|
- | |||||
| 4 | 375315 | Cap, End (l.h.) (almond) |
|
- | |||||
| 4 | 375316 | Cap, End (l.h.) (coffee) |
|
- | |||||
| 4 | 377282 | Cap, End (l.h.) (new Avocado) |
|
- | |||||
| 4 | 377283 | Cap, End L.h. (golden Harvest) |
|
- | |||||
| 5 | 358472 | Stop, Push-in |
|
- | |||||
| 6 | 358225 | Screw, 8-18 |
|
- | |||||
| 7 | 599530307 | Clip (Replaces: 90015) |
|
- | |||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 689311 | Cover, Lint Screen (coffee) |
|
- | |||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 11 | 689313 | Cover, Lint Screen (golden Harvest) |
|
- | |||||
| 11 | 689312 | Cover, Lint Screen (new Avocado) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 16 | 688479 | Top (white) |
|
- | |||||
| 16 | 689450 | Top (coffee) |
|
- | |||||
| 16 | 689451 | Top (new Avocado) |
|
- | |||||
| 16 | 689452 | Top (golden Harvest) |
|
- | |||||
| 16 | 689449 | Top (almond) |
|
- | |||||
| 18 | 690292 | Control Knob Assembly |
|
- | |||||
| 21 | 687939 | Timer, 50 Hz. |
|
- | |||||
| 21 | 687950 | Timer, 60 Hz. |
|
- | |||||
| 22 | 00685886 | Motor, 50 Hz. (use W/687939 Timer) (Replaces: 685886) |
|
$ 251.71 | |||||
| 22 | 343528 | Motor, 60 Hz. (use W/687950 Timer) |
|
- | |||||
| 29 | WP3390631 | Screw (Replaces: 339554) |
|
$ 8.25 | |||||
| 30 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 39 | 346364 | Switch, Push-to-start |
|
- | |||||
| 48 | 690201 | Timer Knob Assembly |
|
- | |||||
| 53 | 358467 | Bracket, Control |
|
- | |||||
| 54 | 690411 | Panel, Control |
|
- | |||||
| 62 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 67 | 689559 | Nut, Push-in (4) |
|
- | |||||
| 72 | 688121 | Wire, Ground |
|
- | |||||
| 79 | 348686 | Switch, Rotary |
|
- | |||||
| 81 | 346219 | Button Assembly |
|
- | |||||
| 83 | 357645 | Rack, Literature |
|
- | |||||
| 84 | 261890 | Golden Harvest |
|
- | |||||
| 84 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 84 | 350941 | Leveler (thinner) |
|
- | |||||
| 84 | 688786 | Harness, Wiring (60 Hz.) |
|
- | |||||
| 84 | 688857 | Harnes, Wiring (50 Hz.) |
|
- | |||||
| 84 | 688643 | Instructions, Installation (60 Hz.) |
|
- | |||||
| 84 | 690002 | Instructions, Installation (50 Hz.) |
|
- | |||||
| 84 | 687858 | Instructions, Operating |
|
- | |||||
| 84 | 688898 | Guide, Dryer |
|
- | |||||
| 84 | 690383 | List, Parts |
|
- | |||||
| 84 | 230083 | Instructions, Wiring |
|
- | |||||
| 84 | W10851673 | Transformer Assembly (Replaces: 299032) |
|
$ 417.47 | |||||
| 84 | 340704 | Supplement, Installation Instructions |
|
- | |||||
| 84 | 339896 | Harness, Rework |
|
- | |||||
| 84 | 685870 | Insulation |
|
- | |||||
| 84 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 109.25 | |||||
| 84 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 60.28 | |||||
| 84 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 84 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 84 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 84 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 84 | 799351 | Thinner (1 Gal.) Spray Paint |
|
- | |||||
| 84 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 84 | 261886 | Coffee |
|
- | |||||
| 84 | 261888 | New Avocado |
|
- | |||||
| 261889 | Xnew Avocado (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 261891 | Xgolden Harvest (unuct) |
|
- | ||||||
| 261887 | Xcoffee (uncut) |
|
- |
