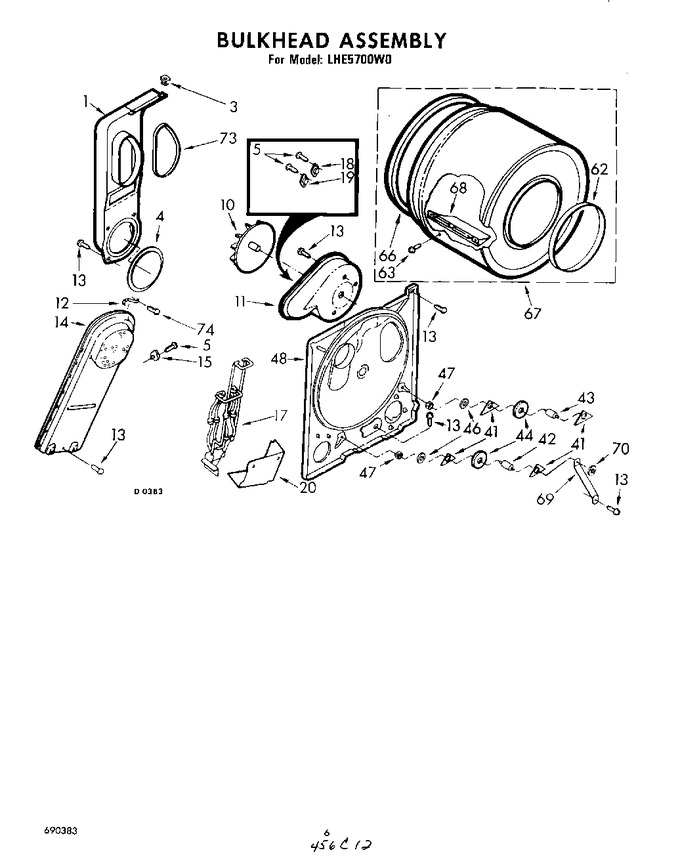

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	279505		Lint Chute Assembly   (Replaces: 299693)				$ 317.74
3	98460		Nut, Push-in (2)				$ 12.07
4	W11415783		Seal, Lint Chute   (Replaces: 347139)			Immediately	$ 19.14
5	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
10	WP694089		Wheel, Blower   (Replaces: 343939)			Immediately	$ 37.66
11	348495		Housing, Blower		Appelez-nous	-
12	279771		Clip   (Replaces: 337272)				$ 15.05
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
14	685457		Box, Heater		Appelez-nous	-
15	279054		Thermostat, 305~f (152~c) (50 Hz.) (alternate)   (Replaces: 689234)				$ 152.83
15	279054		Thermostat, 305~f (152~c) (50 Hz.) (alternate)   (Replaces: 685828)				$ 152.83
15	LS3-270		Thermostat, 290~f (143~c) (60 Hz.) (alternate)   (Replaces: 342764)				$ 17.91
15	LS2-290		Thermostat,290~f (143~c) (60 Hz.) (alternate)   (Replaces: 342762)			Immediately	$ 27.90
17	685943		Element, Heater (50 Hz.) (use 279139 Jumper Wire For Heater Element Harness Terminal Replacement)		Appelez-nous	-
17	WP4391960		Element, Heater (60 Hz.)   (Replaces: 348774)			Immediately	$ 60.56
18	LS2-140		Thermostat, 140~f (60~c) (alternate)   (Replaces: 342813)			Immediately	$ 27.33
18	LS2-140		Thermostat, 140~f (60~c) (alternate)   (Replaces: 342812)			Immediately	$ 27.33
19	WP694674		Thermostat, Operating 150~f (66~c) (alt.)   (Replaces: 341146)			Immediately	$ 50.51
19	WP694674		Thermostat, Operating 150~f (66~c) (alt.)   (Replaces: 341147)			Immediately	$ 50.51
20	348618		Reflector, Heat		Appelez-nous	-
41	WPW10512946		Ring, Tri   (Replaces: 339491)			Immediately	$ 8.80
42	WPW10359270		Shaft, L.h.   (Replaces: 347364)			Immediately	$ 72.71
43	WPW10359269		Shaft, R.h.   (Replaces: 339489)			Immediately	$ 47.30
44	349241T		Roller, Support   (Replaces: 349241)			Immediately	$ 29.53
46	WP348197		Washer, Support   (Replaces: 348197)				$ 7.55
47	120377		Nut, 3/8-16		Appelez-nous	-
48	685769		Bulkhead		Appelez-nous	-
62	WP3394508		Bearing, Ring   (Replaces: 297936)				$ 131.86
63	690372		Screw, 11-16 X 7/8		Appelez-nous	-
66	239087		Seal, Rear Drum   (Replaces: 337449)			Immediately	$ 62.78
67	3396775		Drum Assembly   (Replaces: 337928)				$ 353.03
68	WP342847		Baffle, Drum   (Replaces: 342847)				$ 154.33
69	348945		Bracket, Support		Appelez-nous	-
70	WP90296		Clip   (Replaces: 90296)				$ 8.24
73	WP339956		Seal   (Replaces: 339956)			Immediately	$ 9.06
74	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 8.47
