SELECT A DIAGRAM

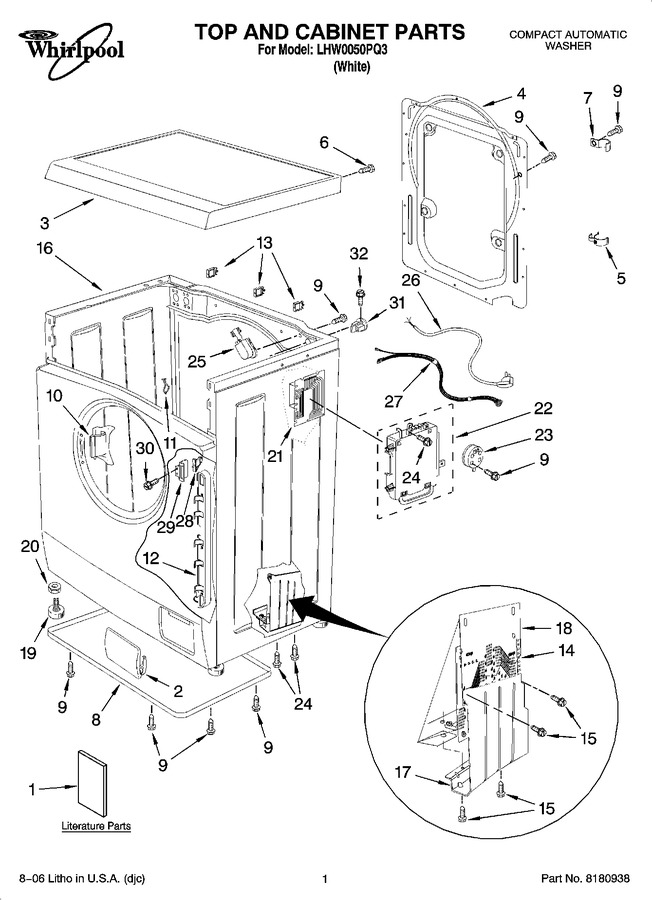

01 - Top And Cabinet Parts
02 - Control Panel Parts
03 - Door Parts
04 - Dispenser Parts
05 - Basket And Tub Parts
06 - Pump Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8183130 | Wiring Diagram |
|
- | |||||
| 1 | 8182569 | Energy Guide |
|
- | |||||
| 1 | 8183111 | Use & Care Guide |
|
- | |||||
| 2 | 8182721 | Cover, Filter |
|
$ 66.32 | |||||
| 3 | 8182719 | Top |
|
$ 140.51 | |||||
| 4 | 8182589 | Panel, Rear |
|
- | |||||
| 5 | 8182325 | Clamp, Hose |
|
- | |||||
| 6 | W11233072 | Screw (Replaces: 8182338) |
|
Immediately | $ 14.72 | ||||
| 7 | 8182324 | Clamp, Hose |
|
- | |||||
| 8 | 8182319 | Bottom Plate |
|
- | |||||
| 9 | W11245710 | Screw (Replaces: 8182323) |
|
Immediately | $ 14.75 | ||||
| 11 | 8182321 | Clip, Harness |
|
- | |||||
| 12 | 8182322 | Support, Harness |
|
- | |||||
| 13 | 8182328 | Clip |
|
- | |||||
| 14 | 8182643 | Control, Inverter (includes Illus. 21) |
|
- | |||||
| 15 | WPW10253196 | Screw (Replaces: 8182333) |
|
$ 4.62 | |||||
| 17 | 8182331 | Bracket |
|
- | |||||
| 18 | 8182332 | Shield |
|
- | |||||
| 19 | 8182334 | Foot, Leveling |
|
$ 39.85 | |||||
| 20 | 8182337 | Nut |
|
$ 124.47 | |||||
| 21 | 8182643 | Electronic Control (includes Illus. 14) |
|
- | |||||
| 22 | 8182342 | Bracket, Control |
|
- | |||||
| 23 | 8182388 | Switch, Pressure |
|
$ 278.72 | |||||
| 24 | W11233072 | Screw (Replaces: 8182341) |
|
Immediately | $ 14.72 | ||||
| 25 | 8182645 | Filter |
|
$ 47.20 | |||||
| 26 | 8182392 | Power Cord |
|
- | |||||
| 27 | 8183088 | Harness, Main |
|
- | |||||
| 28 | 8182690 | Microswitch, Door |
|
$ 58.66 | |||||
| 29 | 8182718 | Bracket |
|
$ 97.61 | |||||
| 30 | 8182401 | Screw |
|
$ 16.52 | |||||
| 31 | 8182731 | Strain Relief |
|
- | |||||
| 32 | 8182732 | Screw |
|
- |
