01 - Top And Cabinet Parts
02 - Control Panel Parts
03 - Door Parts
04 - Dispenser Parts
05 - Basket And Tub Parts

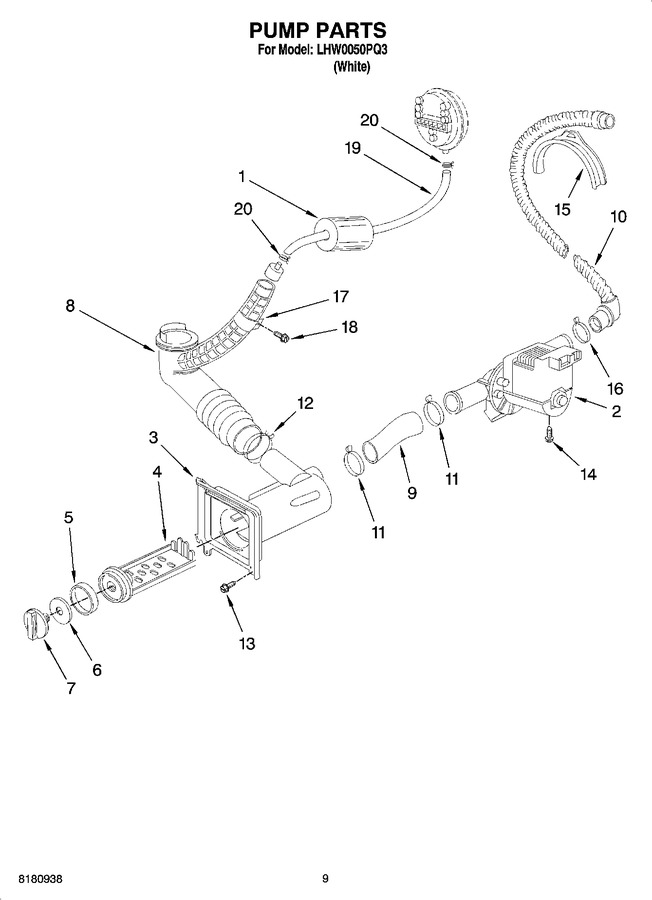

06 - Pump Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8182385 | Grommet |
|
$ 70.02 | |||||
| 2 | WP8182415 | Pump (Replaces: 8182415) |
|
Immediately | $ 365.89 | ||||
| 3 | 8182416 | Housing, Filter |
|
$ 197.49 | |||||
| 4 | 8182417 | Filter |
|
$ 121.71 | |||||
| 5 | 8182418 | Gasket |
|
$ 19.69 | |||||
| 6 | 8182419 | Washer |
|
$ 48.36 | |||||
| 7 | 8182420 | Cap |
|
$ 33.45 | |||||
| 8 | 8182421 | Hose |
|
- | |||||
| 9 | 8182422 | Hose |
|
$ 129.15 | |||||
| 10 | 8182423 | Hose, Drain |
|
$ 85.87 | |||||
| 11 | 8182424 | Clamp, Hose |
|
- | |||||
| 12 | WP285655 | Clamp, Hose (Replaces: 8182425) |
|
Immediately | $ 8.81 | ||||
| 13 | 8169479 | Screw (Replaces: 8182426) |
|
$ 7.30 | |||||
| 14 | WP22002933 | Screw (Replaces: 8182427) |
|
$ 8.06 | |||||
| 15 | 8182428 | Bracket, Hose |
|
$ 46.01 | |||||
| 16 | 8182429 | Clamp, Hose |
|
$ 12.44 | |||||
| 17 | 8182430 | Support |
|
$ 39.96 | |||||
| 18 | WP487353 | Screw (Replaces: 8182431) |
|
$ 7.95 | |||||
| 19 | 8182409 | Hose, Pressure Switch |
|
$ 143.59 | |||||
| 20 | WP285655 | Clamp, Hose (Replaces: 8182375) |
|
Immediately | $ 8.81 | ||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 8182452 | Stack Kit |
|
- | ||||||
| 285987 | Shipping Kit |
|
- |
