Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 B8324801 Clip Ground Appelez-nous -
2 B8386602 Gasket Appelez-nous -
3 C8976102 Gasket, Air Block Appelez-nous -
4 D7786901 Cover, M.k Air Appelez-nous -
5 D7865914 Cover, Evap. Appelez-nous -
6 D7821127 Inner Fz Back Pnt Appelez-nous -
8 D7838302 Cover, Supply Air Appelez-nous -
9 10527401 Clip, Evap Appelez-nous -
11 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

12 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

13 M0322202 Tie Wire Appelez-nous -
14 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

15 C8976201 Clamp Appelez-nous -
16 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

17 D7827402 Cover, Fill Tube Appelez-nous -
18 10098801 Rivet Appelez-nous -
19 A3189362 Gasket, Foam Appelez-nous -
20 D7865812 Evap. Shield Appelez-nous -
21 D7850202 Drip Tray Pnt. Appelez-nous -
22 M0580003 Grommet Appelez-nous -
23 A3189335 Gasket Foam Appelez-nous -
24 10629601 Block, Air Coil (left) Appelez-nous -
25 10629001 Block, Air Coil (right) Appelez-nous -
26 10544005 Kit, Defrost Thermostat Appelez-nous -
27 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

28 WP12049801 Heater, Evap   (Replaces: 10428405) Special Order $ 149.50

29 R0170057 Assy,low Side Appelez-nous -
30 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

31 A1047901 Shim Appelez-nous -
32 C8795501 Fan-evap Appelez-nous -
33 C8881301 Brkt Evap Fan Appelez-nous -
34 WPC8891605 Motor, Evap Fan   (Replaces: C8891605) Special Order $ 344.82

35 D7767705 Brkt, Mtr Shroud Appelez-nous -
36 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

37 B5636301 Cap Appelez-nous -
38 WP67001130 Plug   (Replaces: M0310709) In-Stock Immediately $ 5.98

39 M0580002 Grommet A Appelez-nous -
41 10623003 Clip, Evaporator Appelez-nous -
42 10033201 Deflector, Air Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

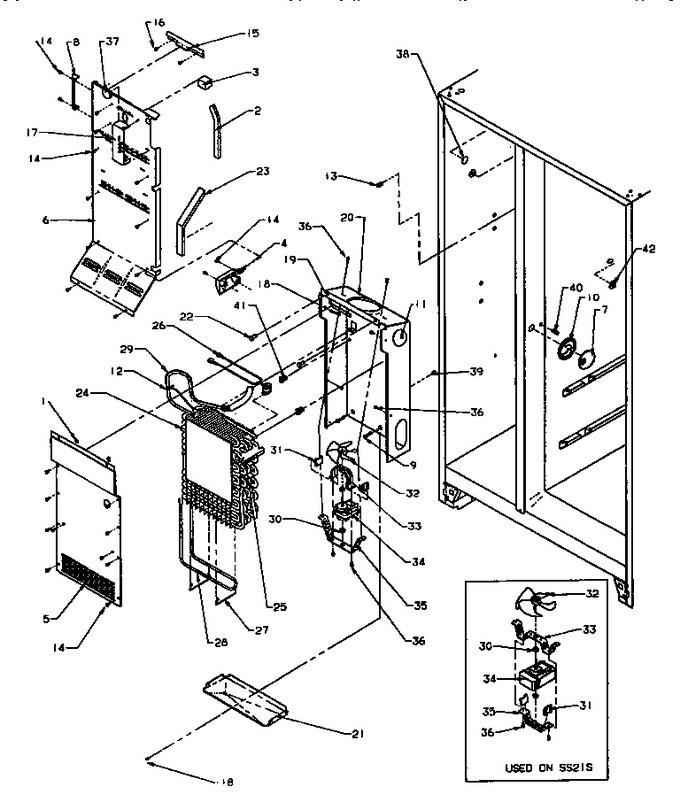

Diagram for SG19SL (BOM: P1193701W L)
