SELECT A DIAGRAM

01 - Back Unit


02 - Drain And Rollers And Cabinet Back


03 - Fz Door


04 - Fz Door Hinge And Trim


05 - Fz Evap And Air Handling


06 - Fz Shelving And Ref Light


07 - Machine Compartment


08 - Ref Door


09 - Ref Door Hinge And Trim


10 - Ref Shelving And Drawers


11 - Ref Shelving And Drawers


12 - Ref, Fz Controls And Cabinet Parts

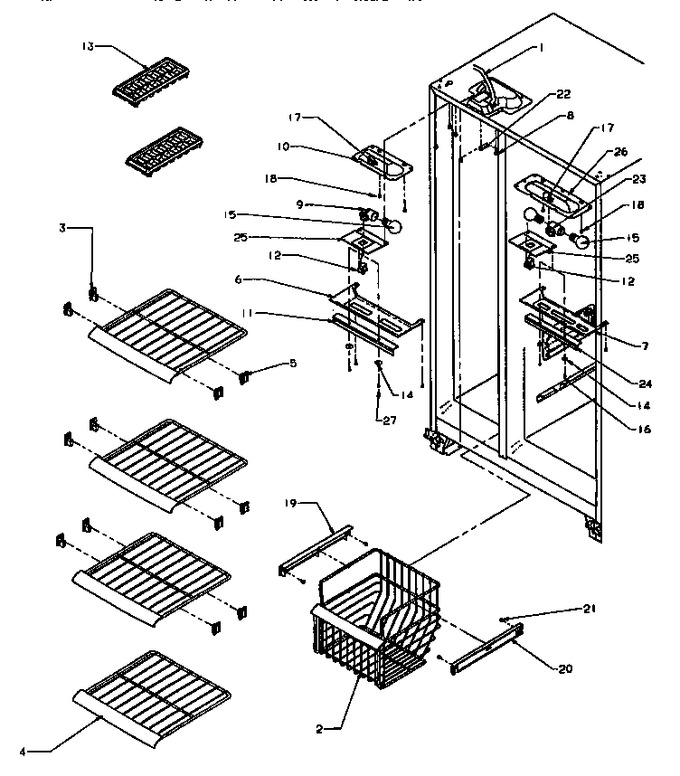

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10976201		Harness, Inner Cab		Appelez-nous	-
2	12012001		Basket, Freezer		Appelez-nous	-
3	12015001		Support-l Shelf		Appelez-nous	-
4	12012603		Shelf, Stat. Freezer		Appelez-nous	-
5	10941101		Support, R Shelf		Appelez-nous	-
6	10493301		Cover, Frz Light		Appelez-nous	-
7	10493201		Cover, Ref. Light		Appelez-nous	-
8	M0581001		Grommet, Screw		Appelez-nous	-
9	C8973404		Socket-light		Appelez-nous	-
10	D7760102		Housing Frz Light		Appelez-nous	-
11	10014715		Shield, Light		Appelez-nous	-
12	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 39.09
13	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
15	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
16	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
17	B5733302		Clip, Ground		Appelez-nous	-
18	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
19	12015101		Rail, Shelf (lt)		Appelez-nous	-
20	10972801		Rail, Shelf (rt)		Appelez-nous	-
21	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
22	M0580007		Grommet, Screw		Appelez-nous	-
23	10796001		Socket, Dual Lamp		Appelez-nous	-
24	10014717		Shield, Light		Appelez-nous	-
25	D7297603		Cover, Light Sw		Appelez-nous	-
26	D7716407		Housing-ref Light		Appelez-nous	-
27	M0219546		Screw		Appelez-nous	-
