Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10581302 Cover, Ht Exch Appelez-nous -
2 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

3 10916504 Cord-power Appelez-nous -
4 12017101 Harness, Outer Cab Appelez-nous -
5 M0232317 Screw Appelez-nous -
6 M0310319 Plug Button Appelez-nous -
7 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

8 WPB2150504 Drier   (Replaces: B2150504) Special Order $ 136.98

9 10547001 Clip, Drier Appelez-nous -
10 M0103904 Clamp, Speed Appelez-nous -
11 WPM0104106 Clip,cord   (Replaces: M0104101) Special Order $ 8.17

12 A3189357 Gasket, Foam Appelez-nous -
13 10851301 Insulation, Tube Appelez-nous -
14 10953201 Mount-cradle Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

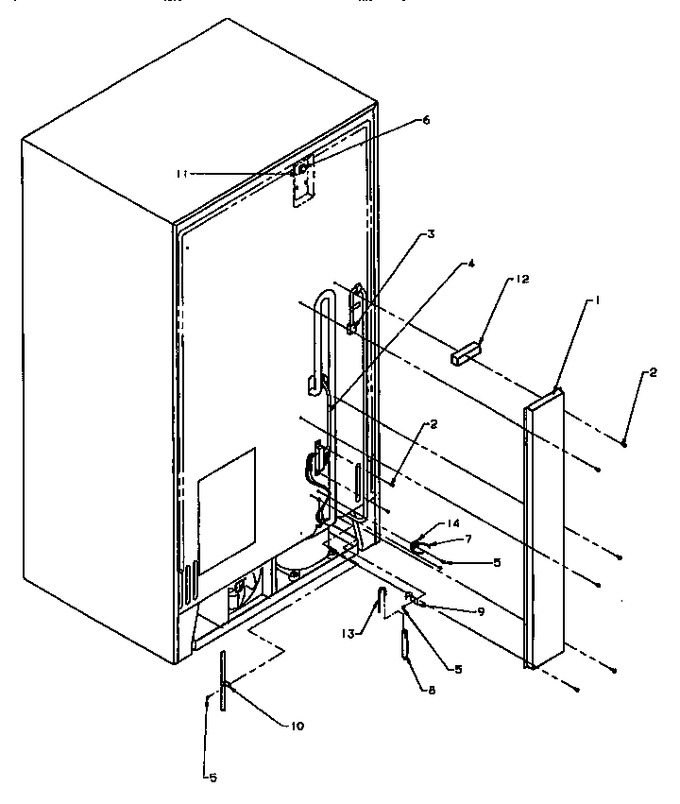

Diagram for SG19SW (BOM: P1193701W W)
