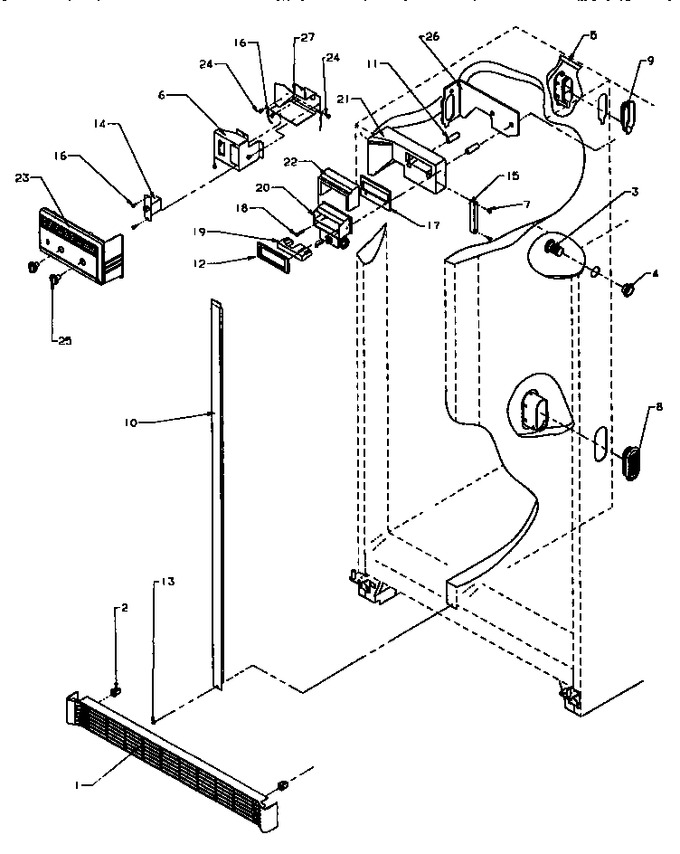

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10492002		Assy, Toe Grille (white)		Appelez-nous	-
2	M0117301		Clip, Grille		Appelez-nous	-
3	A3187702		Tunnel, Air		Appelez-nous	-
4	A3187801		Retainer		Appelez-nous	-
5	B5705320		Tubing, Plastic (wtr Tank/do		Appelez-nous	-
6	D7868606		Box, Control Top		Appelez-nous	-
7	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 8.55
8	D7785401		Grille-rtn Air		Appelez-nous	-
9	D7785501		Tunnel, Air Supply		Appelez-nous	-
10	Y00000000		See Note Mullion-vertical, White -- (see Note)		Appelez-nous	-
11	A3044208		Spacer Damper		Appelez-nous	-
12	10383201		Gasket, Damper		Appelez-nous	-
13	12991101		Screw, Sm   (Replaces: M0210816)				$ 13.47
14	R0161092		Control-temp   (Replaces: C3615024)				$ 226.99
15	C8977301		Clamp		Appelez-nous	-
16	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
17	B8345401		Gasket, Damper		Appelez-nous	-
18	M0216539		Screw		Appelez-nous	-
19	C8902601		Insert, Control		Appelez-nous	-
20	D7547411		Control-damper		Appelez-nous	-
21	D7749902		D7749902q		Appelez-nous	-
22	D7788201		Insulation		Appelez-nous	-
23	10862706		Cover-control		Appelez-nous	-
24	WP489399		Screw   (Replaces: M0232903)				$ 7.30
25	D7795825		Knob White		Appelez-nous	-
26	D7819101		Gasket Air Duct		Appelez-nous	-
27	D7822403		Bottom, Cont. Box		Appelez-nous	-
