SELECT A DIAGRAM

Diagram for 01 - Back Unit
01 - Back Unit

Diagram for 02 - Drain And Rollers And Cabinet Back
02 - Drain And Rollers And Cabinet Back

Diagram for 03 - Fz Door
03 - Fz Door

Diagram for 04 - Fz Door Hinge And Trim
04 - Fz Door Hinge And Trim

Diagram for 05 - Fz Evap And Air Handling
05 - Fz Evap And Air Handling

Diagram for 06 - Fz Shelving And Ref Light
06 - Fz Shelving And Ref Light

Diagram for 07 - Machine Compartment
07 - Machine Compartment

Diagram for 08 - Ref Door
08 - Ref Door

Diagram for 09 - Ref Door Hinge And Trim
09 - Ref Door Hinge And Trim

Diagram for 10 - Ref Shelving And Drawers
10 - Ref Shelving And Drawers

Diagram for 11 - Ref, Fz Controls And Cabinet
11 - Ref, Fz Controls And Cabinet


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 M0221523 Screw, Shldr Appelez-nous -
2 10507902 Pan, Drain Appelez-nous -
3 M0219704 Screw Appelez-nous -
4 M0227217 Screw, Sm Appelez-nous -
5 A3293505 Bushing-snap Appelez-nous -
6 10495701 Bracket, Drain Pan Mtg. Appelez-nous -
7 M0218118 Screw Appelez-nous -
8 10877003 Bracket, Timer Appelez-nous -
9 WP489399 Screw, Se   (Replaces: M0232929) Special Order $ 7.30

10 M0118703 Clip, Guide Appelez-nous -
11 M0585601 Tab, Wire Tie Appelez-nous -
12 10518701 Blade, Fan Appelez-nous -
13 WPW10169124 Grommet, Compressor   (Replaces: 10835901) Special Order $ 7.55

14 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

15 10899501 Clamp, Term. Cover Appelez-nous -
16 12041702 Assy, Mc Back Appelez-nous -
17 10578804 Ass`y, L. Mc Back Appelez-nous -
18 10899601 Overload/relay Appelez-nous -
19 M0272803 Lock Washer Appelez-nous -
20 12021101 Brkt, Capacitor Appelez-nous -
21 W10848274 Capacitor   (Replaces: 10958301) Special Order $ 185.85

22 10899701 Cover, Terminal Appelez-nous -
23 10496501 Kit,shroud/brkt Sound Appelez-nous -
24 D7846901 Motor-condenser Appelez-nous -
25 W10309997 Compressor (220/230 Vac 50hz)   (Replaces: Y10740301) Special Order $ 583.93

26 10129307 Kit, Defrost Timer (230 Vac) Appelez-nous -
27 M0213529 Screw Appelez-nous -
28 12025701 Harness, Mc Appelez-nous -
29 10602404 Kit,shroud/brkt Sound Appelez-nous -
30 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

31 A4539601 Pop Rivet Appelez-nous -
32 M0110505 Clip-cable Appelez-nous -
33 12039902 Back, M.c. Appelez-nous -
34 M0223803 Screw Appelez-nous -
35 10580406 Cond/pan Ass`y(e Ct) Appelez-nous -
36 WP489128 Screw   (Replaces: M0253516) Special Order $ 11.40

37 WP22002933 Screw, Sm   (Replaces: M0211357) Special Order $ 8.06

38 M0585402 Tie Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

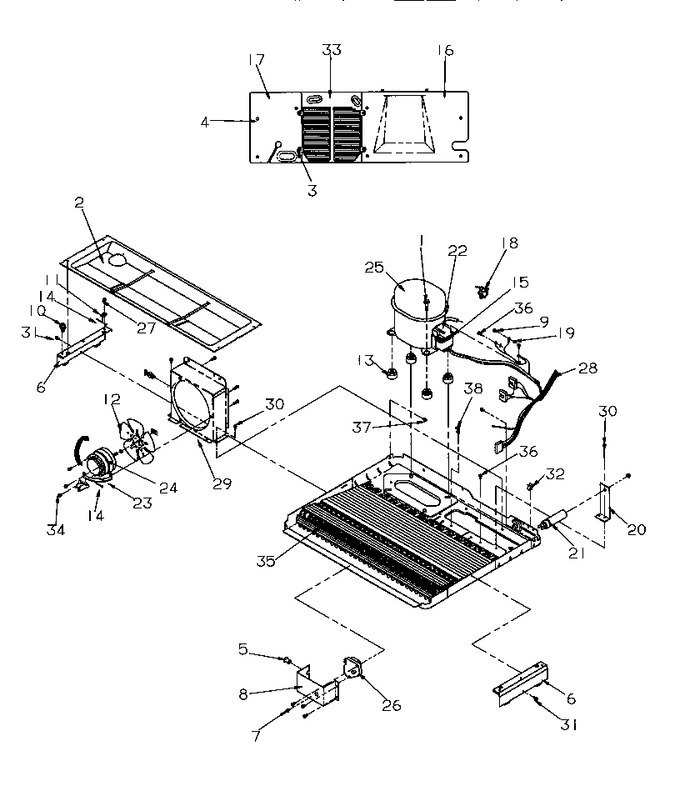

Diagram for SG521SBW (BOM: P1197001W W)
