Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10580904W Assy, Ref Dr (white) Appelez-nous -
2 10581004 Door, Dairy Appelez-nous -
3 10579901 Liner, Refr Door Appelez-nous -
4 10580104 Shelf, Ref Door Appelez-nous -
5 10359705 Gasket, Door (w Ref) Appelez-nous -
6 M0219730 Screw Special Order $ 7.65

7 10423128 Bin-utility Appelez-nous -
8 B0523563 Insulation Ft. K Appelez-nous -
9 10580002 Bucket-ref Door Appelez-nous -
10 10580302 Shelf-gallon Appelez-nous -
11 10202001 Clip, Retainer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

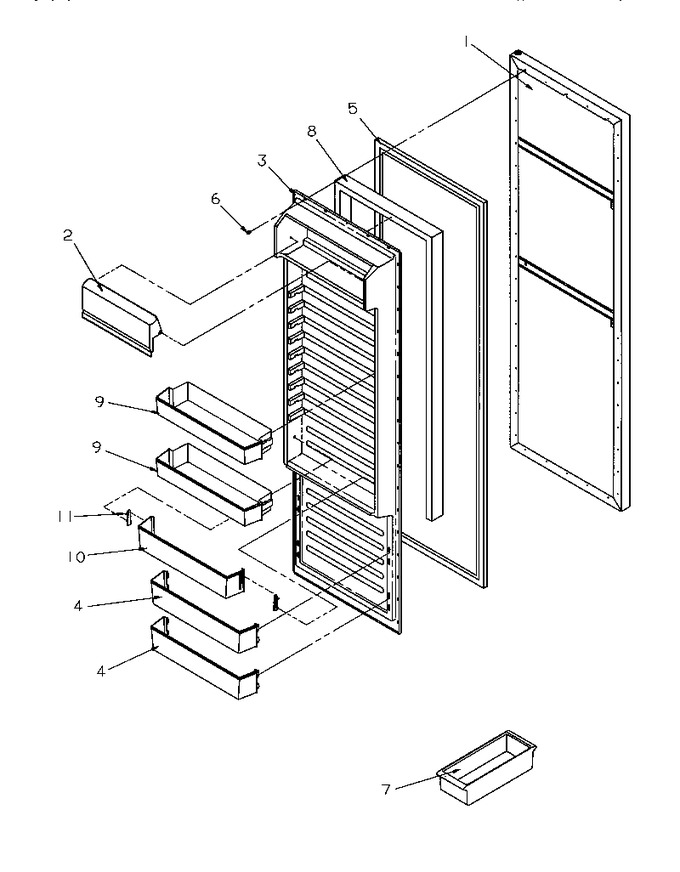

Diagram for SG521SBW (BOM: P1197001W W)
