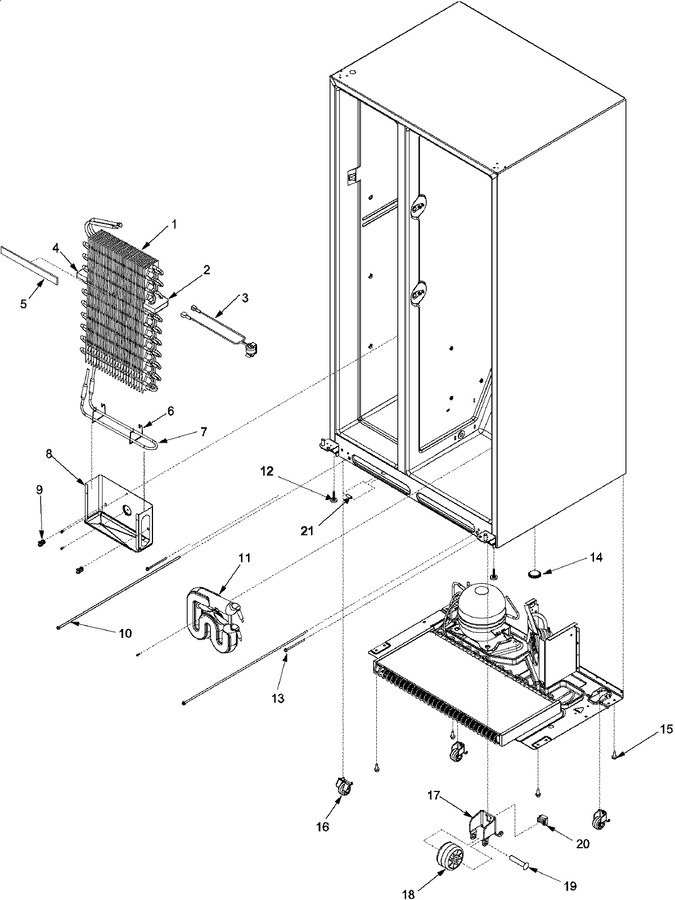

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12676401		Evaporator, Sxs		Appelez-nous	-
2	12590102		Block, Air Coil (rt)		Appelez-nous	-
3	67003151		Thermostat		Appelez-nous	-
4	12590101		Block, Air Coil (lt)		Appelez-nous	-
5	67002226		Gasket, Foam		Appelez-nous	-
6	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 133.36
7	12049803		Heater, Evap				$ 66.02
8	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 7.43
8	12558101WD		Tray, Evap Drip		Appelez-nous	-
9	10623003		Clip, Evaporator		Appelez-nous	-
10	10093315		Screw, Adjusting (rod)		Appelez-nous	-
11	10988503		Tank, Water		Appelez-nous	-
11	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
12	W11177593		Brake, Foot   (Replaces: 10354001)				$ 10.96
13	71003131		Bolt, Roller Adj   (Replaces: 12606102)			Immediately	$ 6.37
14	A3076901		Plug-button				$ 5.70
15	67001510		Screw		Appelez-nous	-
16	67002227		Roller Bracket Assy		Appelez-nous	-
17	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 47.79
18	WP10450603		Roller   (Replaces: 10450602)			Immediately	$ 7.44
19	M1205302		Rivet				$ 5.85
20	M0286708		Nut, Speed				$ 43.07
21	WP2300868		Union, Reducing (5/16``-5/16``)   (Replaces: 61005808)			Immediately	$ 33.29
NI	67004309		Block, Water Tank	11	Appelez-nous	-
