SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls


03 - Crisper Assy


04 - Deli And Ref Shelf


05 - Evap Fan Assy And Lights


06 - Evaporator Assy And Rollers


07 - Fz Door And Facade


08 - Fz Shelf


09 - Handles And Trim


10 - Hinges


11 - Ice Bucket Assy


12 - Light Covers And Toe Grille


13 - Lights And Ice Maker


14 - Machine Compartment


15 - Ref/fz Door And Shelf


16 - Supplemental Information


17 - Wiring Information

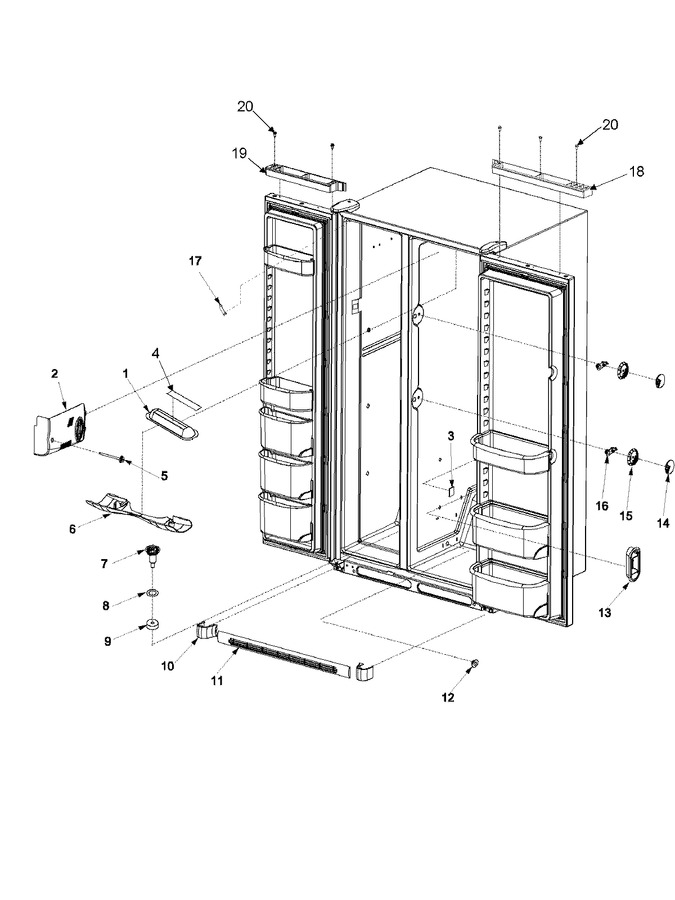

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002221		Housing, Up Ref		Appelez-nous	-
2	67003147		Cover, Control		Appelez-nous	-
3	12488101		Filter, Air				$ 26.94
4	12664701		Insulation, Lt Housing		Appelez-nous	-
5	M0231426		Screw		Appelez-nous	-
6	12602907		Cover, Light		Appelez-nous	-
7	12456901		Funnel, Drain		Appelez-nous	-
8	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 10.32
9	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.00
10	12630301B		Cover, Lwr Hinge (blk)				$ 12.88
11	67002224		Toe Grille Assy (blk)				$ 38.59
11	12627302		Clip, Toe Grille				$ 5.84
12	67003018		Plug, Air Tunnel		Appelez-nous	-
13	12634801		Grille, Return Air		Appelez-nous	-
14	67003148		Grille, Chiller		Appelez-nous	-
15	67002225		Control, Chiller		Appelez-nous	-
16	12572701		Clip, Chiller Control		Appelez-nous	-
17	67003484		Cover, Corner (wht)   (Replaces: 12587702W)				$ 19.28
18	10979105W		Ext, Ref Dr (wht)		Appelez-nous	-
19	10979201		Ext, Fz Dr (wht)		Appelez-nous	-
20	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 7.56
