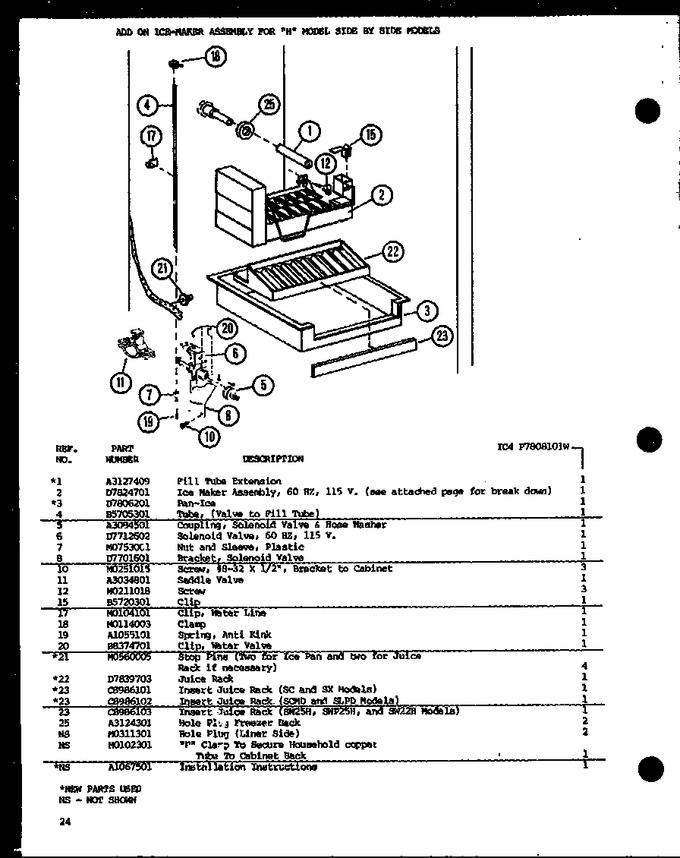

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3127409 | Ext, Fill Tube |
|
- | |||||
| 2 | D7824706Q | Ice Maker (Replaces: D7824701) |
|
Immediately | $ 167.35 | ||||
| 3 | D7806201 | Pan, Ice |
|
- | |||||
| 4 | B5705301 | Tube, I.m. Inlet From Solenoid |
|
- | |||||
| 5 | A3084501 | Coupling, Solenoid Valve And H |
|
- | |||||
| 6 | 4318047 | Valve-water K (Replaces: D7712602) |
|
Immediately | $ 74.09 | ||||
| 7 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 11.51 | |||||
| 8 | D7701601 | Brkt, Water Valve |
|
- | |||||
| 10 | 681390 | Screw (Replaces: M0251015) |
|
$ 13.71 | |||||
| 11 | A3034801 | Saddle Valve |
|
- | |||||
| 12 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 15 | B5720301 | Clip |
|
- | |||||
| 17 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 8.17 | |||||
| 18 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 19 | A1055101 | Spring, Antikink |
|
- | |||||
| 20 | B8374701 | Clip, Water Valve |
|
- | |||||
| 21 | M0560005 | Support |
|
- | |||||
| 22 | D7839703 | Rack, Juice V |
|
- | |||||
| 23 | C8986102 | Insert, Juice Rack |
|
- | |||||
| 23 | C8986101 | Insert Juice Rack |
|
- | |||||
| 23 | C8986103 | Insert, Juice Rack |
|
- | |||||
| 25 | A3124301 | Plug |
|
- | |||||
| NI | A1067501 | Install Inst |
|
- | |||||
| NI | M0102301 | Clamp |
|
- | |||||
| NI | M0311301 | Plug Button |
|
- |
