Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7777602 Cover, O.c.back Appelez-nous -
2 WP90767 Screw   (Replaces: M0211216) In-Stock Immediately $ 8.25

3 R0157154 Power Cord Appelez-nous -
4 A3076901 Plug-button Special Order $ 5.70

5 A3080001 Plug, Button (blk) Appelez-nous -
6 C8742401 Assy, Roller Bracket Appelez-nous -
7 M0286708 Nut, Speed Special Order $ 47.85

8 M0520102 Roller Appelez-nous -
9 M1205302 Rivet Special Order $ 5.85

10 M1200004 Cotter Pin K Appelez-nous -
11 M1200202 Pin K Appelez-nous -
12 C8985801 Bracket, Retainer Appelez-nous -
13 D7748501 Drain Tube Appelez-nous -
14 M0102303 Clamp Appelez-nous -
15 M0103901 Clamp Appelez-nous -
16 M0204339 Screw Bolt K Appelez-nous -
17 WP489399 Screw   (Replaces: M0233103) Special Order $ 7.30

18 WP489069 Screw-sd   (Replaces: M0233704) In-Stock Immediately $ 8.40

19 B8318811 Fill Tube Assy Appelez-nous -
20 C8971902 Tunnel, Heat Ex. Appelez-nous -
21 M0211530 Screw Appelez-nous -
22 A0329806 Insul Tubing 1=12`` Appelez-nous -
23 M0310319 Plug Button Appelez-nous -
24 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25


    View Diagram in Separate Window     Print Icon   Print Part List

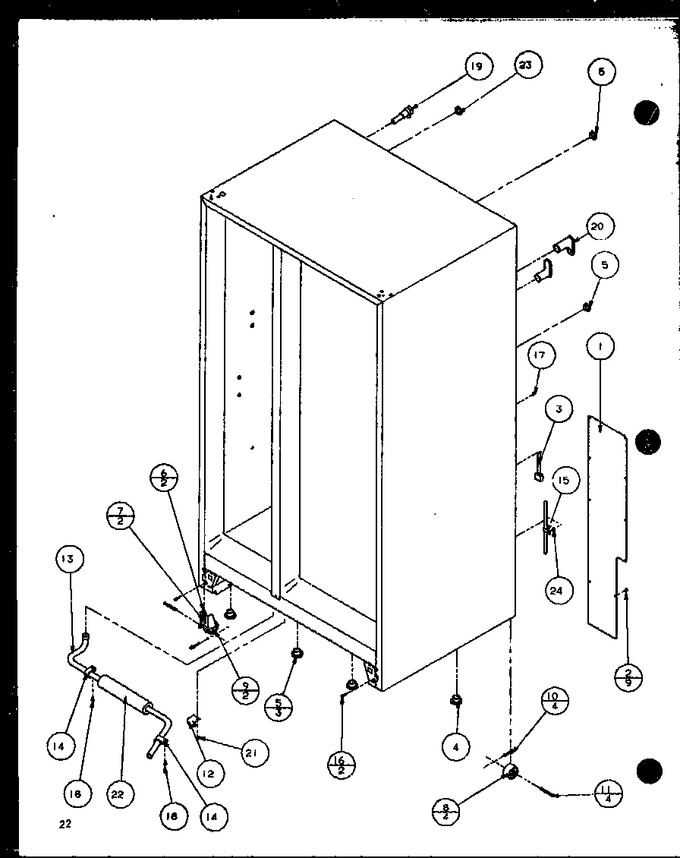

Diagram for SL25H (BOM: P7836008W)
