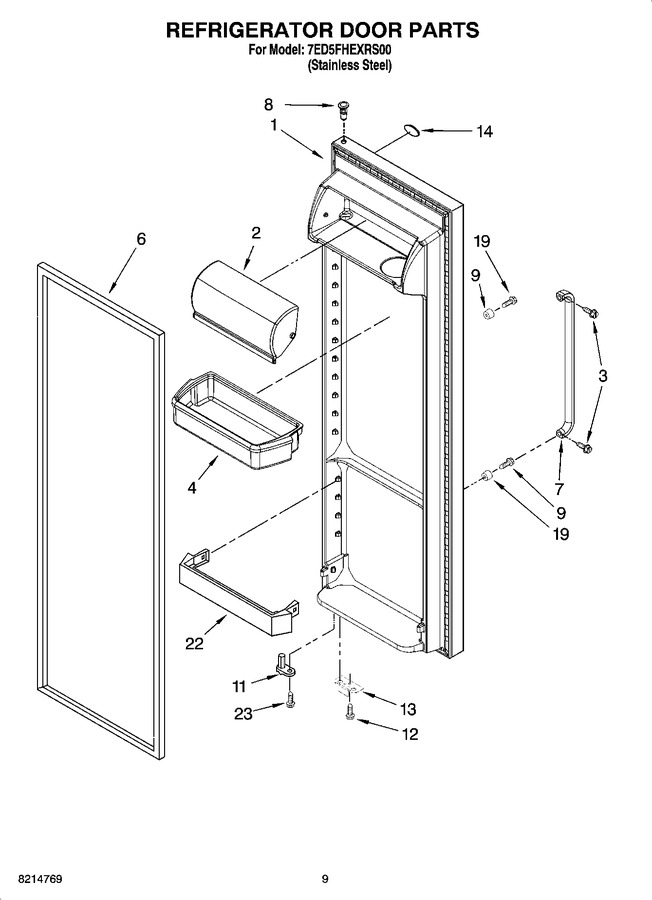

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2308122S		Refrigerator Door (includes Item 6) (stainless Steel)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	8533976		Screw				$ 8.35
4	2223239K		Door Bin (3)		Appelez-nous	-
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
7	2303534S		Handle (includes 3) (stainless)		Appelez-nous	-
8	2308050		Thimble, Top		Appelez-nous	-
9	WPW10170540		Stud   (Replaces: 2219698)			Immediately	$ 8.51
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
14	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
19	WP488163		Screw   (Replaces: 488208)				$ 7.54
22	WP2318736		Trivet, Shelf   (Replaces: 2223727)				$ 73.28
23	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
