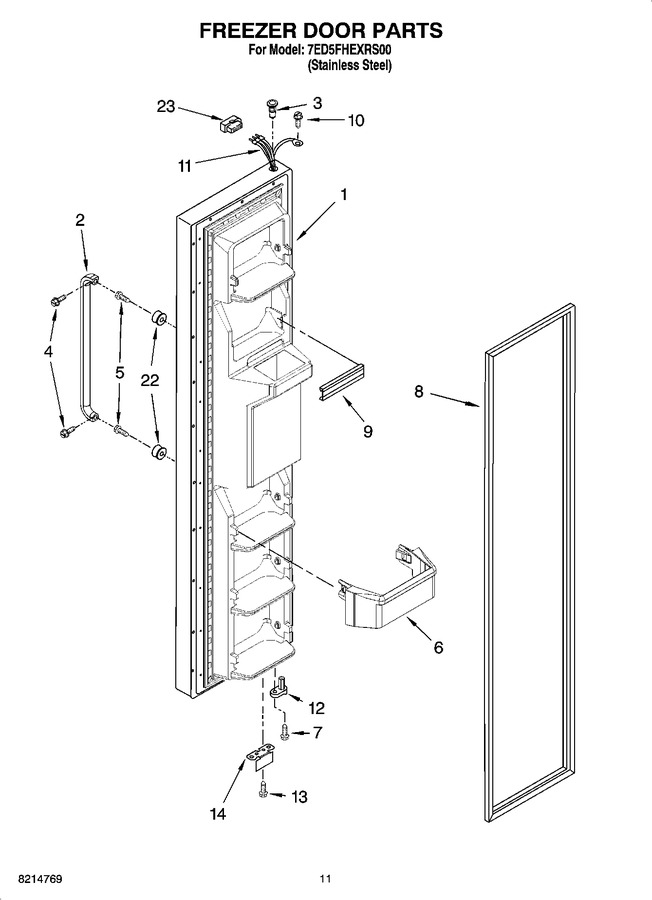

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2317418S | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel) |
|
- | |||||
| 2 | 2303534S | Handle (includes 4) (stainless) |
|
- | |||||
| 3 | 2301049 | Thimble, Top |
|
$ 75.42 | |||||
| 4 | 8533976 | Screw |
|
$ 8.35 | |||||
| 5 | WPW10170540 | Stud (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 6 | WP2171157 | Trivet, Shelf (4) (Replaces: 2171157K) |
|
$ 63.70 | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2221314) |
|
$ 332.49 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: 2209681) |
|
Immediately | $ 24.27 | ||||
| 10 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 11 | 2311641 | Wire Harness (Replaces: 2206601) |
|
- | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 14 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 42.79 | |||||
| 22 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 23 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 24.83 |
