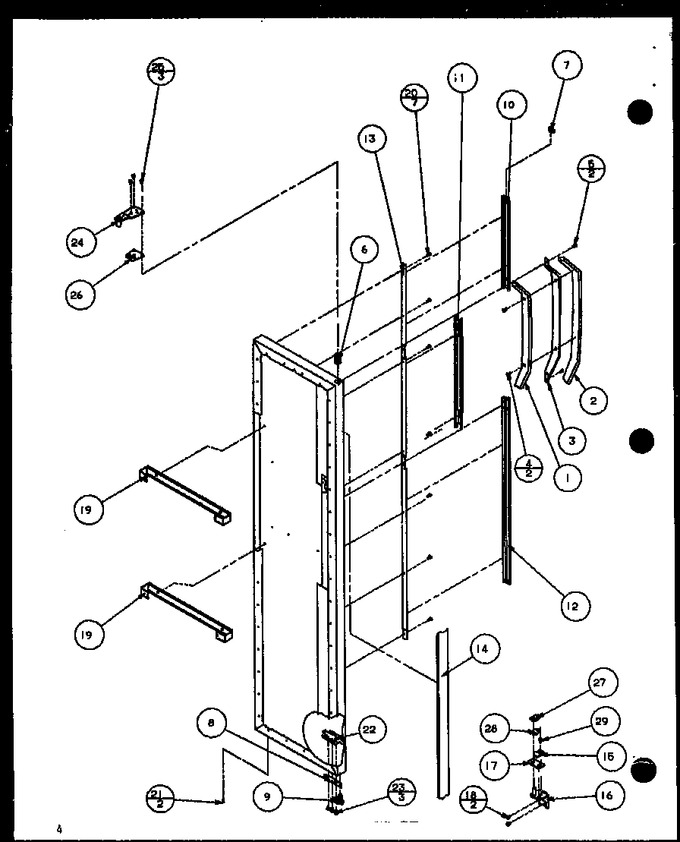

SLM25H (BOM: P7836010W) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	D7792005	Handle Assy Almond K	Appelez-nous	-
1	D7792004	Handle Assy, Gold	Appelez-nous	-
1	D7792003	Handle Assy, White	Appelez-nous	-
2	D7792105	Handle Assy Almond K	Appelez-nous	-
2	D7792104	Handle Assy, Gold	Appelez-nous	-
2	D7792103	Handle Assy, White	Appelez-nous	-
3	D7826601	Handle	Appelez-nous	-
4	M0215115	Screw	Appelez-nous	-
5	WP3400094	Screw (Replaces: M0253942)			$ 8.33
6	C8965901	Bushing, Top	Appelez-nous	-
8	C8972402	Stop, Door	Appelez-nous	-
9	R0181181	Kit,dr Closure (Replaces: D7751402)		Immediately	$ 6.80
10	D7852103	Upper Trim Frz Dr (w)	Appelez-nous	-
10	D7852105	Upper Trim Frz Dr (l)	Appelez-nous	-
10	D7852104	Upper Trim Frz Dr	Appelez-nous	-
11	D7792503	Trim Center Frz	Appelez-nous	-
11	D7792505	Trim Center Frz	Appelez-nous	-
11	D7792504	Center Trim, Fz Door, Gold	Appelez-nous	-
12	D7792703	Trim, Lwr Frz Door (w)	Appelez-nous	-
12	D7792705	Trim, Lwr Frz Door (l)	Appelez-nous	-
12	D7792704	Trim, Lwr Frz Door	Appelez-nous	-
13	D7792902	Frz Trim, Retainer	Appelez-nous	-
15	R0181181	Kit,dr Closure (Replaces: D7748301)		Immediately	$ 6.80
16	D7757703	Hinge Assy	Appelez-nous	-
17	B8386701	Kit,btm Hinge Shim	Appelez-nous	-
17	B8386703	Kit,btm Hinge Shim	Appelez-nous	-
17	B8386702	Kit,btm Hinge Shim	Appelez-nous	-
18	M0246258	Screw	Appelez-nous	-
19	D7837401	Support, Handle	Appelez-nous	-
20	M0213815	Screw	Appelez-nous	-
21	WP489349	Screw (Replaces: M0216515)		Immediately	$ 7.59
22	D7790801	Nut, Door Stop	Appelez-nous	-
23	M0219717	Screw	Appelez-nous	-
24	D7757803	Top Hinge Assy	Appelez-nous	-
25	R9800670	Kit, Screw (Replaces: M0257244)			$ 9.52
26	B8389001	Shim, Top Hinge	Appelez-nous	-
27	B8387701	Shim, Door Closure	Appelez-nous	-
28	B8387702	Shim, Door Closure	Appelez-nous	-
29	WPW10068250	Screw (Replaces: M0202530)			$ 3.84
