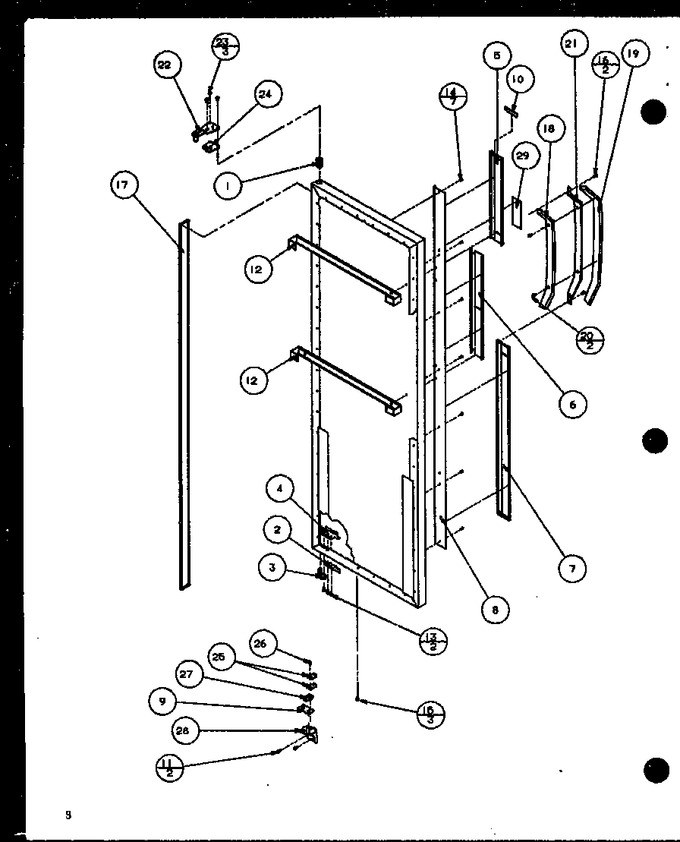

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8965901 | Bushing, Top |
|
- | |||||
| 2 | C8972402 | Stop, Door |
|
- | |||||
| 3 | R0181181 | Kit,dr Closure (Replaces: D7751402) |
|
Immediately | $ 6.80 | ||||
| 4 | D7790801 | Nut, Door Stop |
|
- | |||||
| 5 | D7852010 | Trim |
|
- | |||||
| 5 | D7852009 | Trim |
|
- | |||||
| 5 | D7852008 | Trim |
|
- | |||||
| 6 | D7792605 | Trim Center Ref Dr (alm) |
|
- | |||||
| 6 | D7792603 | Trim Center Ref (wht) |
|
- | |||||
| 6 | D7792604 | Trim Center Frz (gold) |
|
- | |||||
| 7 | D7792803 | Trim Lwr Ref Door |
|
- | |||||
| 7 | D7792804 | Trim Lwr Ref Door |
|
- | |||||
| 7 | D7792805 | Trim Lwr Ref Door |
|
- | |||||
| 8 | D7793202 | Ref. Trim, Retainer |
|
- | |||||
| 9 | B8386703 | Kit,btm Hinge Shim |
|
- | |||||
| 9 | B8386702 | Kit,btm Hinge Shim |
|
- | |||||
| 9 | B8386701 | Kit,btm Hinge Shim |
|
- | |||||
| 11 | M0246258 | Screw |
|
- | |||||
| 12 | D7837402 | Support, Handle |
|
- | |||||
| 13 | M0219717 | Screw |
|
- | |||||
| 14 | M0213815 | Screw |
|
- | |||||
| 15 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.59 | ||||
| 16 | WP3400094 | Screw (Replaces: M0253942) |
|
$ 8.33 | |||||
| 17 | C8974102 | Trim, Door |
|
- | |||||
| 18 | D7792003 | Handle Assy, White |
|
- | |||||
| 18 | D7792004 | Handle Assy, Gold |
|
- | |||||
| 18 | D7792005 | Handle Assy Almond K |
|
- | |||||
| 19 | D7792103 | Handle Assy, White |
|
- | |||||
| 19 | D7792104 | Handle Assy, Gold |
|
- | |||||
| 19 | D7792105 | Handle Assy Almond K |
|
- | |||||
| 20 | M0215115 | Screw |
|
- | |||||
| 21 | D7826601 | Handle |
|
- | |||||
| 22 | D7757803 | Top Hinge Assy |
|
- | |||||
| 23 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 9.52 | |||||
| 24 | B8389001 | Shim, Top Hinge |
|
- | |||||
| 25 | B8387701 | Shim, Door Closure |
|
- | |||||
| 25 | B8387702 | Shim, Door Closure |
|
- | |||||
| 26 | WPW10068250 | Screw (Replaces: M0202530) |
|
$ 3.84 | |||||
| 27 | R0181181 | Kit,dr Closure (Replaces: D7748301) |
|
Immediately | $ 6.80 | ||||
| 28 | D7757704 | Hinge Assy Bottom |
|
- | |||||
| 29 | C8984304 | Thinplate, Door |
|
- |
