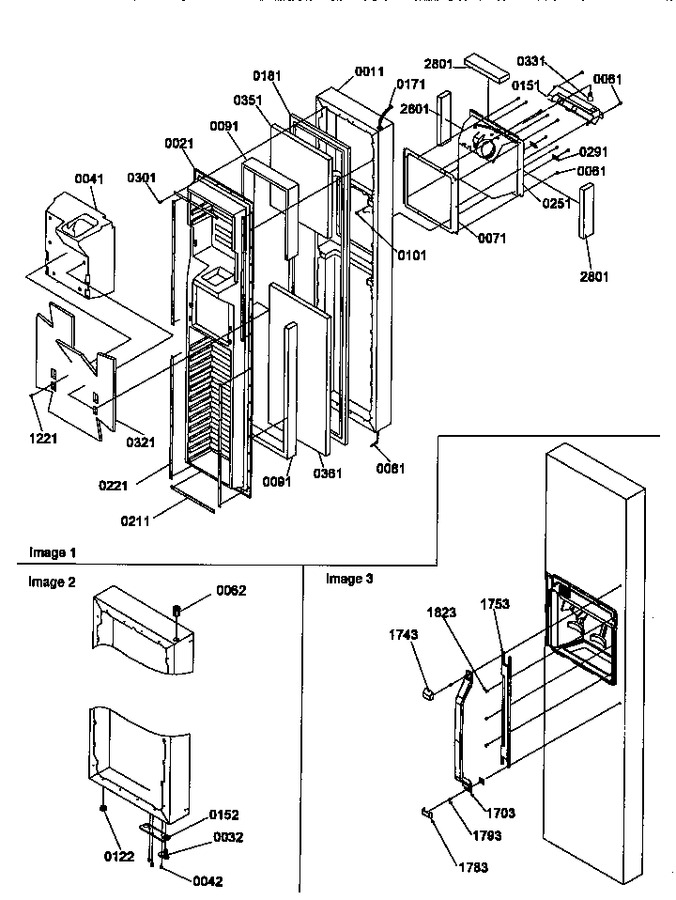

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10876209W | Assy, Fz Dr Fm (white) |
|
- | |||||
| 21 | 10861003 | Liner-i & W Fz Dr |
|
- | |||||
| 32 | R0181181 | Closure-w Door (Replaces: 12113201) |
|
Immediately | $ 7.55 | ||||
| 41 | 12032801 | Insul-i & W Cavity |
|
- | |||||
| 42 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 61 | M0216517 | Screw |
|
- | |||||
| 62 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 8.20 | |||||
| 71 | D7791003 | Gasket Cavity |
|
- | |||||
| 81 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 91 | B0523563 | Insulation Ft. K |
|
- | |||||
| 101 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 122 | M0310308 | Plug, Button (wht) |
|
- | |||||
| 151 | Y00000000 | See Note Elec Brkt Assy |
|
- | |||||
| 152 | 10161803 | Door Stop |
|
- | |||||
| 171 | 10952104 | Harness-fz Door |
|
- | |||||
| 181 | 10359702 | Gasket (w Frz Dr) |
|
- | |||||
| 211 | C8982801 | Retainer, Door Liner |
|
- | |||||
| 221 | D7828601 | Retainer, Door Liner |
|
- | |||||
| 251 | Y00000000 | See Note E Cavity Assy |
|
- | |||||
| 291 | C8992901 | Clip |
|
- | |||||
| 301 | M0219730 | Screw |
|
$ 7.65 | |||||
| 321 | 10940701 | Insul-disp Batt |
|
- | |||||
| 331 | W10857122 | Light Bulb (Replaces: M0360001) |
|
$ 14.52 | |||||
| 351 | 12016905 | Insul, Batt |
|
- | |||||
| 361 | 12016906 | Insul, Batt |
|
- | |||||
| 1221 | M0311601 | Plug, Button |
|
- | |||||
| 1703 | 12139303 | Handle, Door (black) |
|
- | |||||
| 1743 | 10975805 | Cap-e Dr Handle |
|
- | |||||
| 1753 | 10810603 | Trim- E Ctr I&w Dr |
|
- | |||||
| 1783 | 10975806 | Cap-e Dr Handle |
|
- | |||||
| 1793 | R9800670 | Screw, Mounting (Replaces: M0223230) |
|
$ 10.58 | |||||
| 1823 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 2801 | B0523596 | Insul. By The Ft. |
|
- |
