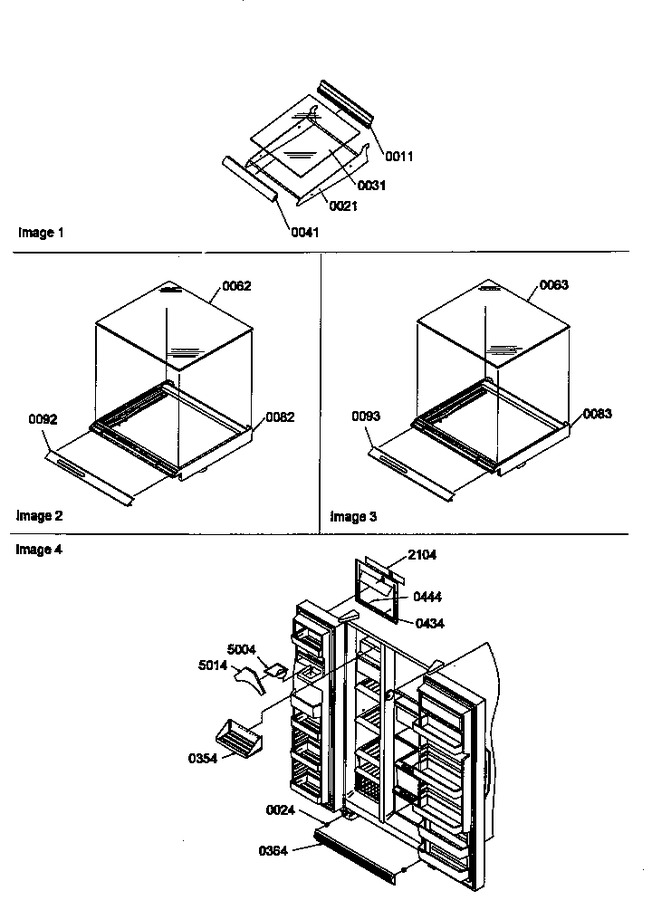

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10946004 | Extr-rear Shelf |
|
- | |||||
| 21 | 10875304 | Frame, Glass Shelf |
|
- | |||||
| 24 | M0117302 | Clip, Grille |
|
- | |||||
| 31 | 10370076 | Glass-shelf |
|
- | |||||
| 41 | 10459909 | Extr-front Shelf |
|
- | |||||
| 62 | Y10370045 | Glass, Shelf |
|
- | |||||
| 63 | 10370046 | Glass, Shelf |
|
- | |||||
| 82 | 10470102 | Frame, Crisper |
|
- | |||||
| 83 | 10470101 | Frame, Crisper |
|
- | |||||
| 92 | 10873911 | Trim-crisp Fr |
|
- | |||||
| 93 | 10873911 | Trim-crisp Fr |
|
- | |||||
| 354 | 10870801 | Shelf, Ice Cream |
|
- | |||||
| 364 | 10492001 | Assy, Toe Grille (black) |
|
- | |||||
| 434 | 10986111 | Facade- E Disp |
|
- | |||||
| 444 | M0219601 | Screw |
|
- | |||||
| 2104 | 10984629 | Insert E-facade |
|
- | |||||
| 5004 | 10131401 | Ice Chute |
|
- | |||||
| 5014 | 12044601 | Gasket-ice Chute |
|
- |
