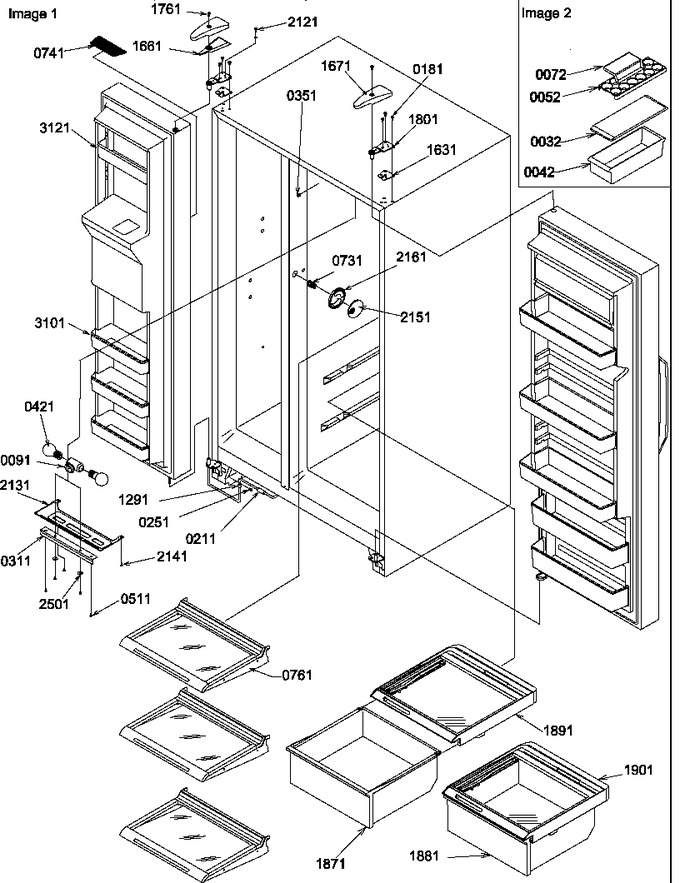

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 91 | 12156201 | Socket, Dual Lamp |
|
- | |||||
| 181 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 211 | WP4373559 | Union K (Replaces: B5706901) |
|
$ 81.22 | |||||
| 251 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 311 | 10014716 | Shield, Light |
|
- | |||||
| 351 | M0580007 | Grommet, Screw |
|
- | |||||
| 421 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 511 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 741 | D7750603 | Grille, Sump (white) |
|
- | |||||
| 761 | 10880704 | Assy, Glass Shelf |
|
- | |||||
| 1291 | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 11.54 | |||||
| 1631 | 12223003 | Shim, Top Hinge |
|
- | |||||
| 1661 | 10863501 | Foil, Hng Cov |
|
- | |||||
| 1671 | 10849406 | Cover W Hinge |
|
- | |||||
| 1761 | WP8281196 | Screw-mach (Replaces: M0202327) |
|
Immediately | $ 7.55 | ||||
| 1801 | 12077312 | Hinge, Top (e-ct) |
|
- | |||||
| 1871 | 10471817 | Pan, Crisper |
|
- | |||||
| 1891 | 10883021 | Assy, Crisper |
|
- | |||||
| 1901 | 10883008 | Assy, Lwr Crisp Frame |
|
- | |||||
| 2121 | W11214483 | Screw, Mach (Replaces: M0202321) |
|
$ 14.72 | |||||
| 2131 | 10493202 | Cover, Ref. Light |
|
- | |||||
| 2141 | M0238846 | Screw-sm |
|
- | |||||
| 2501 | M0270508 | Washer |
|
- | |||||
| 3101 | 10521710 | Bucket, Frz Dr |
|
- | |||||
| 3121 | 10525511 | Shelf, Frz Dr |
|
- |
