Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10946006 Extr-rear Shelf Appelez-nous -
21 10875306 Frame, Glass Shelf Appelez-nous -
25 M0117303 Clip, Grille Special Order $ 5.65

31 10370064 Glass-shelf Appelez-nous -
41 10459910 Extr., Shelf Frt Appelez-nous -
63 10370027 Glass Shelf Appelez-nous -
64 10370030 Glass Shelf Appelez-nous -
82 M0213531 Screw, Sm Appelez-nous -
83 10469609 Frame, Crisper Appelez-nous -
84 10469608 Frame, Crisper Appelez-nous -
94 10873909 Trim-crisp Front Appelez-nous -
435 10870801 Shelf, Ice Cream Appelez-nous -
455 12321807 Assy, Toe Grille (white) Appelez-nous -
825 10986109 Facade-w Disp Appelez-nous -
835 M0219614 Screw K Appelez-nous -
3505 10984618 Insert-w Facade Appelez-nous -
5005 10504101 Chute, Ice Appelez-nous -
5015 12044501 Gasket-ice Chute Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

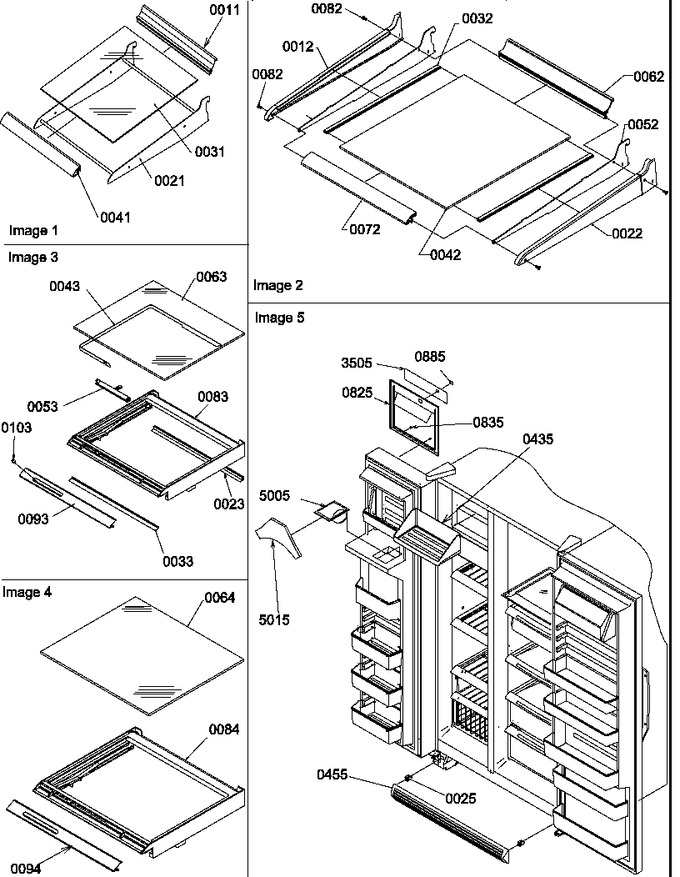

Diagram for SMD25TW (BOM: P1190429W W)
