SELECT A DIAGRAM

01 - Pulsatormotor


02 - Pump


03 - Shell


04 - Spincan


05 - Spinmotor


06 - Timer


07 - Tub

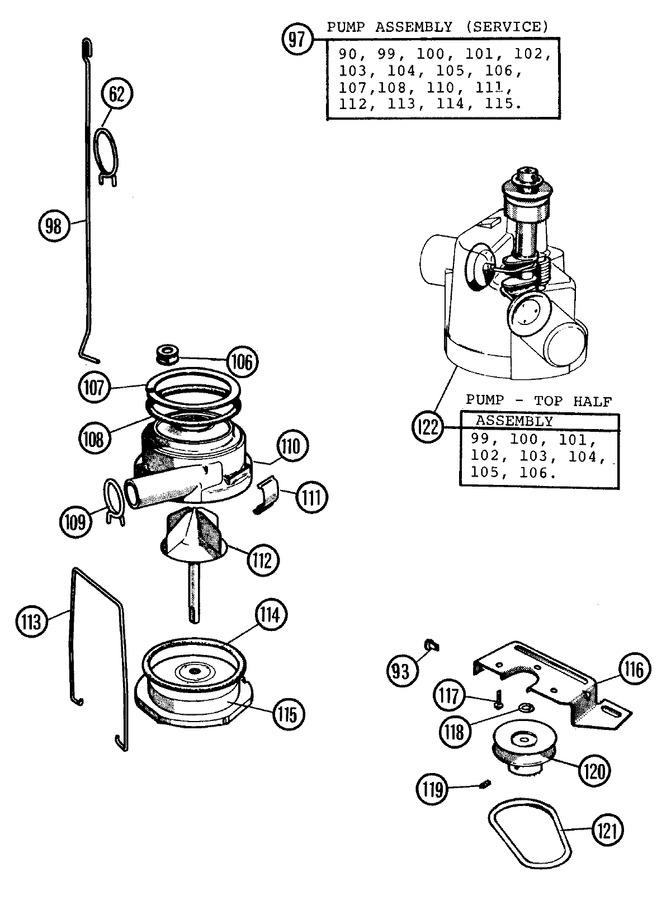

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
62	160780--		Hose Clamp-tub		Appelez-nous	-
90	014078--		Retainer		Appelez-nous	-
93	037351--		Expansion Nut-t1011		Appelez-nous	-
97	160121--		Pump Assem		Appelez-nous	-
98	716698		Pump Operating Rod - 0610 - Fi		Appelez-nous	-
98	724392--		Pump Op Rod		Appelez-nous	-
99	W10124350		Not Required Part Or See Note Retainer		Appelez-nous	-
100	W10124350		Not Required Part Or See Note Washer		Appelez-nous	-
101	W10124350		Not Required Part Or See Note Cam Shaft Seal		Appelez-nous	-
102	W10124350		Not Required Part Or See Note Valve Body		Appelez-nous	-
103	W10124350		Not Required Part Or See Note Valve Cam		Appelez-nous	-
104	W10124350		Not Required Part Or See Note Valve Spring Assembly		Appelez-nous	-
105	W10124350		Not Required Part Or See Note Washer		Appelez-nous	-
106	716644--		Push On Fix 0601		Appelez-nous	-
107	718808--		Valv Seal Ret		Appelez-nous	-
108	718683--		O Ring		Appelez-nous	-
109	807995--		Hose Clip		Appelez-nous	-
110	38736513		Pump Chamber		Appelez-nous	-
111	716653--		Spring Clip		Appelez-nous	-
112	015055--		Pump Impeller		Appelez-nous	-
113	716905--		Spring Clip		Appelez-nous	-
114	716651--		O Ring		Appelez-nous	-
115	015061--		Pump Back Plate Asse		Appelez-nous	-
116	W10124350		Not Required Part Or See Note		Appelez-nous	-
117	166735EF		Screw - S3005		Appelez-nous	-
118	903731--		Washer-0500		Appelez-nous	-
119	161840--		Set Screw		Appelez-nous	-
120	716646--		Pump Pulley		Appelez-nous	-
121	725895--		Spin Pmp Blt 0601		Appelez-nous	-
122	037616--		Pump Assy Upper		Appelez-nous	-
123	012776--		Screw		Appelez-nous	-
