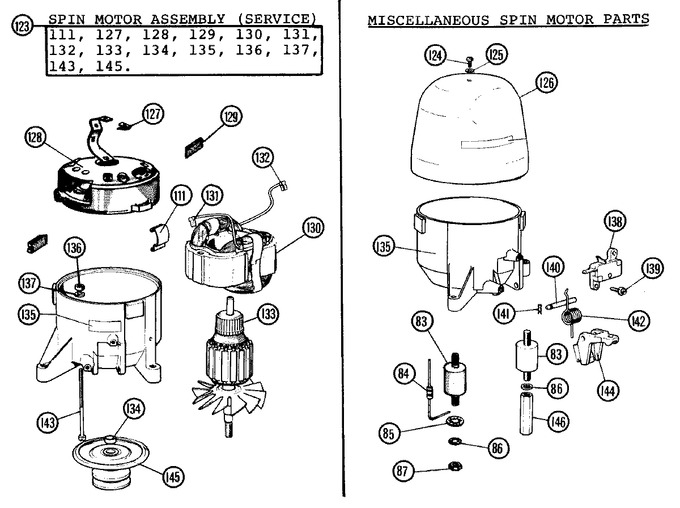

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
83	716818--		Flexible Mount		Appelez-nous	-
84	037611--		Resistor		Appelez-nous	-
85	W10124350		Not Required Part Or See Note		Appelez-nous	-
86	W10124350		Not Required Part Or See Note		Appelez-nous	-
87	716828--		Hex Nut		Appelez-nous	-
111	716653--		Spring Clip		Appelez-nous	-
123	038019--		Spin Motor Assy		Appelez-nous	-
124	W10124350		Not Required Part Or See Note		Appelez-nous	-
125	W10124350		Not Required Part Or See Note		Appelez-nous	-
126	W10124350		Not Required Part Or See Note		Appelez-nous	-
127	615058		Nut - Special		Appelez-nous	-
128	W10124350		Not Required Part Or See Note		Appelez-nous	-
129	818489--		Motor Brush		Appelez-nous	-
130	W10124350		Not Required Part Or See Note		Appelez-nous	-
130	038025--		Field Assy		Appelez-nous	-
131	014197--		Terminal		Appelez-nous	-
133	036653--		Armature		Appelez-nous	-
134	W10124350		Not Required Part Or See Note		Appelez-nous	-
135	818472--		No Desc Available		Appelez-nous	-
136	W10124350		Not Required Part Or See Note		Appelez-nous	-
137	091082--		Washer 0600		Appelez-nous	-
138	818666--		Switch-0514		Appelez-nous	-
139	W10124350		Not Required Part Or See Note		Appelez-nous	-
140	818506--		Pivot		Appelez-nous	-
141	W10124350		Not Required Part Or See Note		Appelez-nous	-
142	818507--		Obsolete Dls		Appelez-nous	-
143	818106--		Field Screw		Appelez-nous	-
144	W10124350		Not Required Part Or See Note		Appelez-nous	-
145	819545--		Pulley & Brake Disc		Appelez-nous	-
