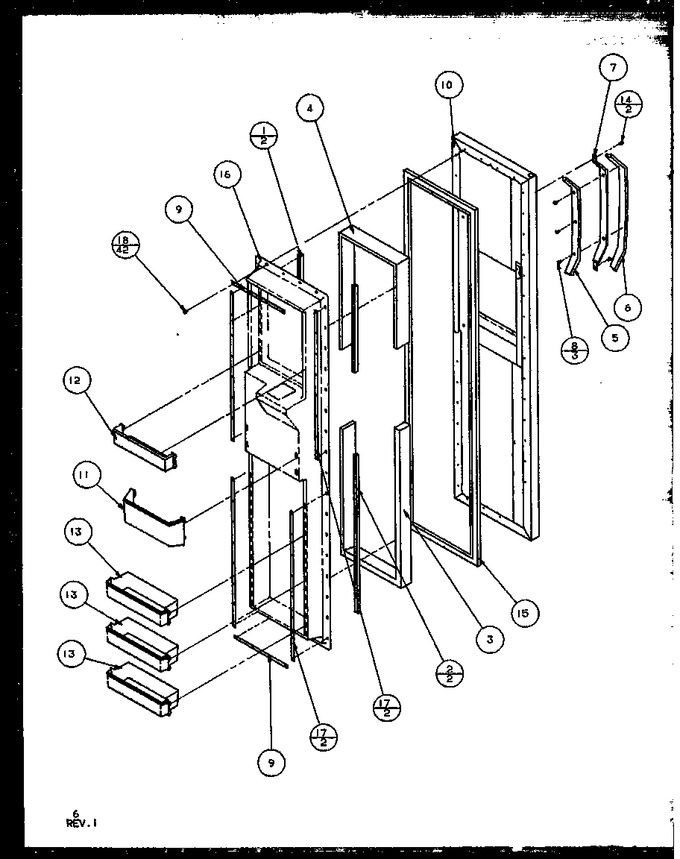

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8987101		Seal, Door Dike		Appelez-nous	-
2	C8987103		Seal, Door Dike		Appelez-nous	-
3	B0523562		Insul. By The Ft.		Appelez-nous	-
4	B0523583		Insulation, Per Ft.		Appelez-nous	-
5	D7863001		Inner Pad K		Appelez-nous	-
6	D7863101		Outer Pad K		Appelez-nous	-
7	D7826603		Handle		Appelez-nous	-
8	M0215116		Screw		Appelez-nous	-
9	C8982801		Retainer, Door Liner		Appelez-nous	-
10	10300501WQ		Assy Frz Door		Appelez-nous	-
10	10300502EQ		Fz Dr As Cfc 11		Appelez-nous	-
10	10300501LQ		Assy, Frz Door (almond)		Appelez-nous	-
11	D7783510		Shelf-half Fz Door		Appelez-nous	-
12	D7783609		Shelf Frz Door		Appelez-nous	-
13	D7783709		Bucket Frz Door		Appelez-nous	-
14	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
15	10359704		Gasket Door Frz		Appelez-nous	-
15	10359702		Gasket (w Frz Dr)		Appelez-nous	-
16	D7828505		Inner Door Panel		Appelez-nous	-
17	D7828601		Retainer, Door Liner		Appelez-nous	-
18	M0219730		Screw				$ 7.65

    View Diagram in Separate Window       Print Part List
