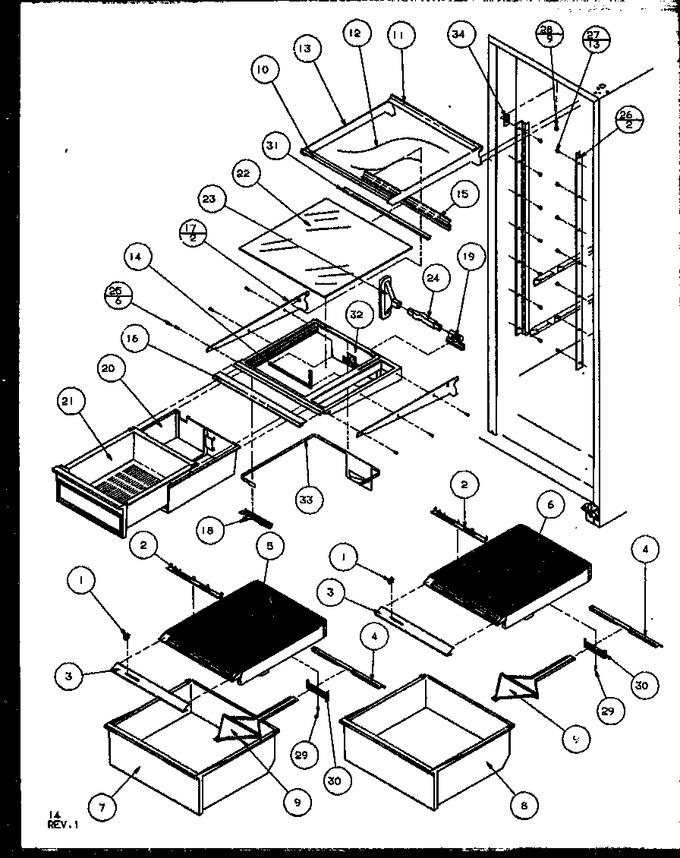

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8908301 | Knob Humidity A-k |
|
- | |||||
| 2 | D7587705 | Slide Humidity |
|
- | |||||
| 3 | D7616695 | Trim Fr Crisper |
|
- | |||||
| 4 | D7764101 | Damper Humidity |
|
- | |||||
| 5 | D7781902 | Crisper Top |
|
- | |||||
| 6 | D7781903 | Crisper Top |
|
- | |||||
| 7 | D7782122 | Pan, Crisper |
|
- | |||||
| 8 | D7782123 | Pan - Crisper |
|
- | |||||
| 9 | D7782203 | Slide Crisper Cont. |
|
- | |||||
| 10 | 10049916 | Trim |
|
- | |||||
| 11 | C8913606 | Trim, Glass Shelf Rear |
|
- | |||||
| 12 | D7421241 | Glass Shelf |
|
- | |||||
| 13 | D7871009 | Frame-cantilever Shelf |
|
- | |||||
| 14 | A3263905 | Gasket-per Ft |
|
- | |||||
| 15 | C8990404 | Trim-m.k., Top, Rear |
|
- | |||||
| 16 | 10049931 | Trim |
|
- | |||||
| 17 | D7862924 | Blank Side Rail |
|
- | |||||
| 17 | D7862925 | Blank Side Rail (silver) |
|
- | |||||
| 18 | D7859401 | Slide-mk Control |
|
- | |||||
| 19 | D7869102 | Ext. Air Duct |
|
- | |||||
| 20 | D7698111 | Sleeve M.k. |
|
- | |||||
| 21 | D7698324 | Pan-meat |
|
- | |||||
| 22 | D7421266 | Glass Shelf Mk |
|
- | |||||
| 23 | D7873601 | Grommet, Mk |
|
- | |||||
| 24 | D7869001 | Xduct M.k. Air |
|
- | |||||
| 25 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 26 | D7789807 | Ladder Cantilever |
|
- | |||||
| 27 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 28 | M0580007 | Grommet, Screw |
|
- | |||||
| 29 | M0230017 | Screw,tc |
|
- | |||||
| 30 | D7807601 | Support |
|
- | |||||
| 31 | 10043102 | Ext. Rear Glass |
|
- | |||||
| 32 | D7857002 | Frame, M.k. |
|
- | |||||
| 33 | D7859503 | Band M.k. Control |
|
- | |||||
| 34 | C8992301 | Bracket |
|
- | |||||
| NI | 10279120 | Ass`y, Glass Shelf |
|
- | |||||
| NI | 10372403 | Crisper Top Assy |
|
- | |||||
| NI | 10372405 | Crisper Assembly, Lower |
|
- |
