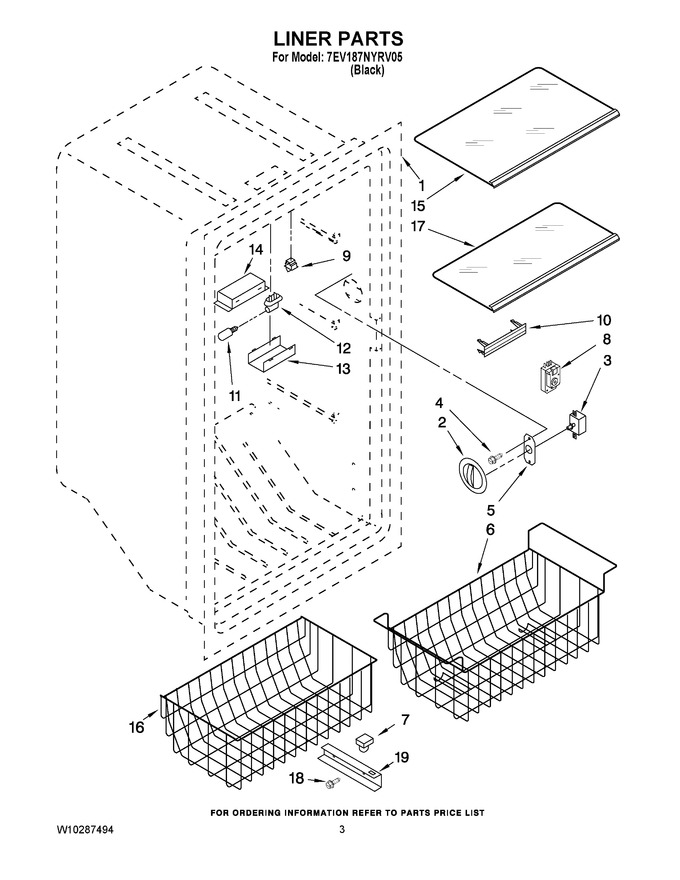

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 4390619 | Knob, Control |
|
- | |||||
| 3 | WP4-83053-003 | Thermostat (Replaces: 8210311) |
|
$ 242.82 | |||||
| 4 | WPW10068250 | Screw (Replaces: 4357042) |
|
$ 4.07 | |||||
| 5 | 4357049 | Thermostat Plate |
|
- | |||||
| 6 | 4390621 | Basket, Wire Lower |
|
- | |||||
| 7 | W10179590 | Stop, Basket |
|
- | |||||
| 8 | WP3-81329 | Defrost Timer (Replaces: 4357124) |
|
Immediately | $ 189.66 | ||||
| 9 | W11384469 | Switch, Light (Replaces: 4390513) |
|
Immediately | $ 37.23 | ||||
| 10 | WP3-80414-103 | Vent Plug (Replaces: 4357295) |
|
$ 12.86 | |||||
| 11 | W11679940 | Bulb, Light (Replaces: 4390465) |
|
Immediately | $ 11.30 | ||||
| 12 | WP3-82393-001 | Socket, Light (Replaces: 8210350) |
|
$ 107.36 | |||||
| 13 | 4390743 | Shield, Light |
|
- | |||||
| 14 | W10135693 | Housing, Light |
|
- | |||||
| 15 | 4390816 | Shelf, Top |
|
- | |||||
| 16 | W10287493 | Basket Wire |
|
- | |||||
| 17 | 4390817 | Shelf, Middle |
|
$ 113.01 | |||||
| 18 | WP489491 | Screw (5/8``) (Replaces: 4390821) |
|
$ 6.95 | |||||
| 18 | 4390822 | Screw (1 1/2``) |
|
- | |||||
| 19 | 4390820 | Rail, Basket (left) |
|
$ 77.44 | |||||
| 19 | 4390819 | Rail, Basket (right) |
|
- |
