SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts

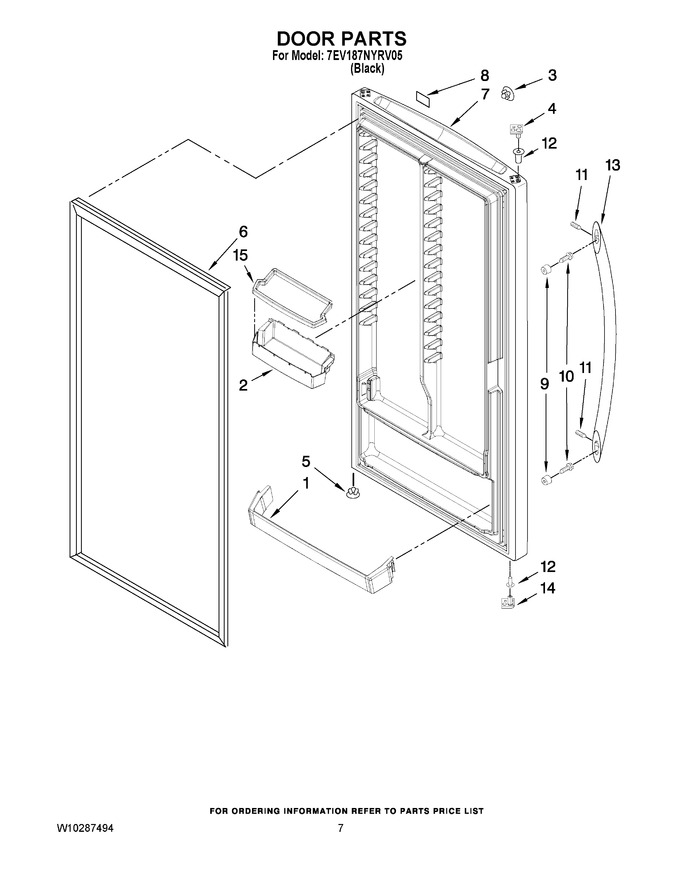

04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210379		Rail, Door (1)		Appelez-nous	-
2	W10179592		Bin, Door (6)		Appelez-nous	-
3	WP2189000		Plug, Door   (Replaces: 4390596)			Immediately	$ 7.40
4	8210402		Stop, Door (upper)				$ 156.18
5	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 10.80
6	8210343		Gasket, Door				$ 367.33
7	8210368		Door Assembly (includes Interior Door Liner)				$ 325.76
8	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
9	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
10	WP488163		Screw   (Replaces: 488208)				$ 7.54
11	8533976		Screw				$ 8.35
12	4390869		Bushing (black)		Appelez-nous	-
13	W10202711		Handle Assembly (includes Item 11)		Appelez-nous	-
14	8210400		Stop, Door (lower)		Appelez-nous	-
15	8210383		Cover, Bin				$ 35.04

    View Diagram in Separate Window       Print Part List
