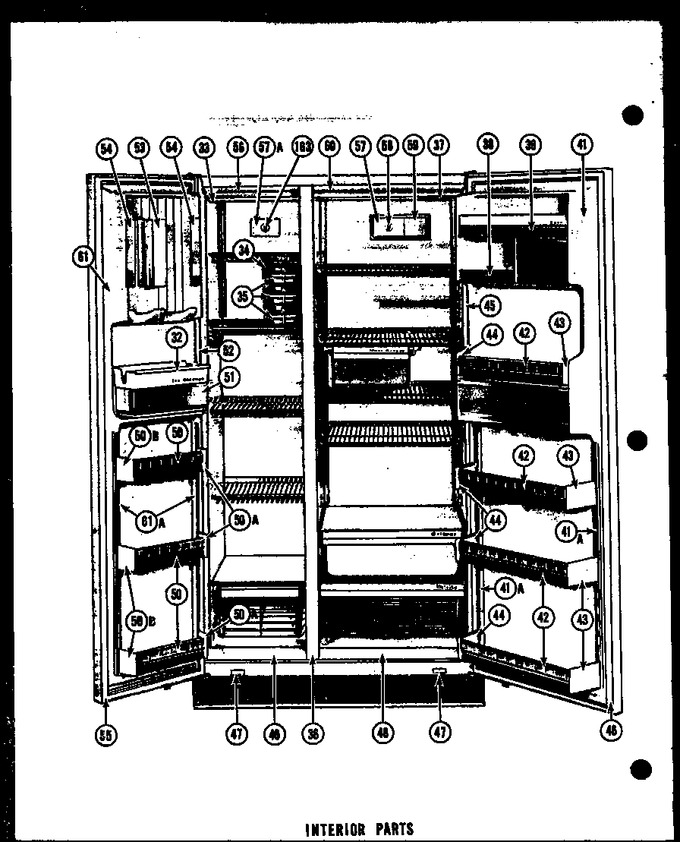

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
32	D3959401		Ice Container		Appelez-nous	-
33	D3954202		Light Shield		Appelez-nous	-
34	WP841180A		Tray, Ice   (Replaces: D3959301)			Immediately	$ 47.84
35	WP841180A		Tray, Ice   (Replaces: C3524202)			Immediately	$ 47.84
36	B0594601		Mullion Vert.white)		Appelez-nous	-
37	C3597601		Light Shield		Appelez-nous	-
38	D3935205		Package Retainer		Appelez-nous	-
39	D3935204		Package Retainer		Appelez-nous	-
41	D3966301		Inner Door Panel		Appelez-nous	-
42	D3976718		Package Retainer		Appelez-nous	-
43	D3976801		Support, Package Retainer, R.h		Appelez-nous	-
44	D3976802		Support, Package Retainer, L.h		Appelez-nous	-
45	D3951701		Breaker Frame		Appelez-nous	-
46	D3967501		Gasket, Door		Appelez-nous	-
47	B0592001		Switch		Appelez-nous	-
48	D3952602		Breaker Frame		Appelez-nous	-
49	D3952401		Breaker Frame		Appelez-nous	-
50	D3976803		Support, Package Retainer, R.h		Appelez-nous	-
50	D3976804		Support, Package Retainer, L.h		Appelez-nous	-
50	D3976714		Package Retainer		Appelez-nous	-
51	C3591601		Retainer Ice Bucket		Appelez-nous	-
52	D3951702		Breaker Frame, Fz Side		Appelez-nous	-
53	B0595701		Panel		Appelez-nous	-
54	B0595601		Panel		Appelez-nous	-
55	D3954402		Gasket		Appelez-nous	-
56	D3953101		Breaker Frame		Appelez-nous	-
57	B0592801		Thinplate		Appelez-nous	-
57	B0592803		Thinplate		Appelez-nous	-
58	B5616201		Control, Damper		Appelez-nous	-
59	D3981101		Backer Plate		Appelez-nous	-
60	D3952502		Breaker Frame		Appelez-nous	-
61	D3987001		Inner Door Panel, Fz		Appelez-nous	-
163	B0592301		Thermostat, Fz Section		Appelez-nous	-
NI	B0591801		Mullion, Vertical, Inner		Appelez-nous	-
NI	C3593801		Heater, Fz Flange, Heater		Appelez-nous	-
NI	A3073015		Insulation Batt		Appelez-nous	-
NI	D3952301		Breaker Frame		Appelez-nous	-
NI	A3073006		Insulation		Appelez-nous	-
NI	B0530005		Support K		Appelez-nous	-
NI	M0241118		Screw-sm		Appelez-nous	-
NI	B0572822		Insulation Ft. K		Appelez-nous	-
NI	D3952302		Breaker Frame		Appelez-nous	-
NI	B5600301		Heater		Appelez-nous	-
NI	B0593501		Wiring Harness		Appelez-nous	-
NI	B0572823		Insulation Ft. K		Appelez-nous	-
